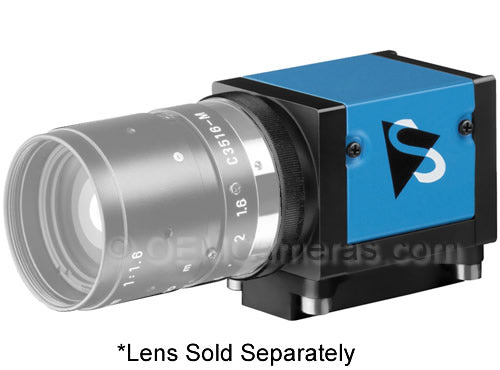

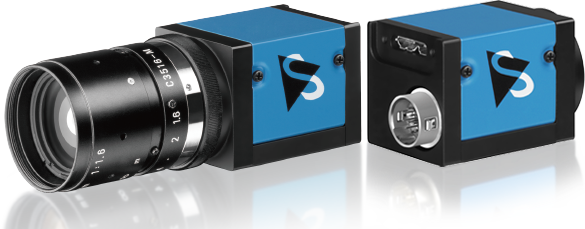

Imaging Source DMK 33UX290 USB 3.0 Monochrome Industrial Camera

$516.00

•1/2.8 inch Sony CMOS STARVIS sensor (IMX290LL)
•1,920x1,080 (2.1 MP), up to 143 fps
•Rolling shutter
•Trigger and I/O inputs
•Manufactured by The Imaging Source

SKU: DMK 33UX290

$516.00

Description

Specifications

Downloads

Imaging Source DMK 33UX290

USB 3.0 Monochrome Industrial Camera

The Imaging Source DMK 33UX290 monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.8 inch Sony CMOS STARVIS IMX290LL sensor. With up to 143 images per second, the DMK 33UX290 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK 33UX290 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

12 bit

Video Format

1920 x 1080 (2.1 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX290

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2.9 µm x V: 2.9 µm

2.1 MP

Resolution

1920 x 1080

FPS

143 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 540 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

20 µs to 30 s

Gain

0 dB to 72 dB

Temperature (Operating)

'-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
