Imaging Source DMK 33UX226 USB 3.0 Monochrome Microscope Camera

$574.00

•1/1.7 inch Sony CMOS STARVIS sensor (IMX226CLJ)
•4,000x3,000 (12 MP), up to 30 fps
•Rolling shutter
•Trigger and I/O inputs

SKU: DMK 33UX226
dmk-33ux226

Imaging Source DMK 33UX226 USB 3.0 Monochrome Microscope Camera

$574.00

$574.00

Description
Specifications
Downloads

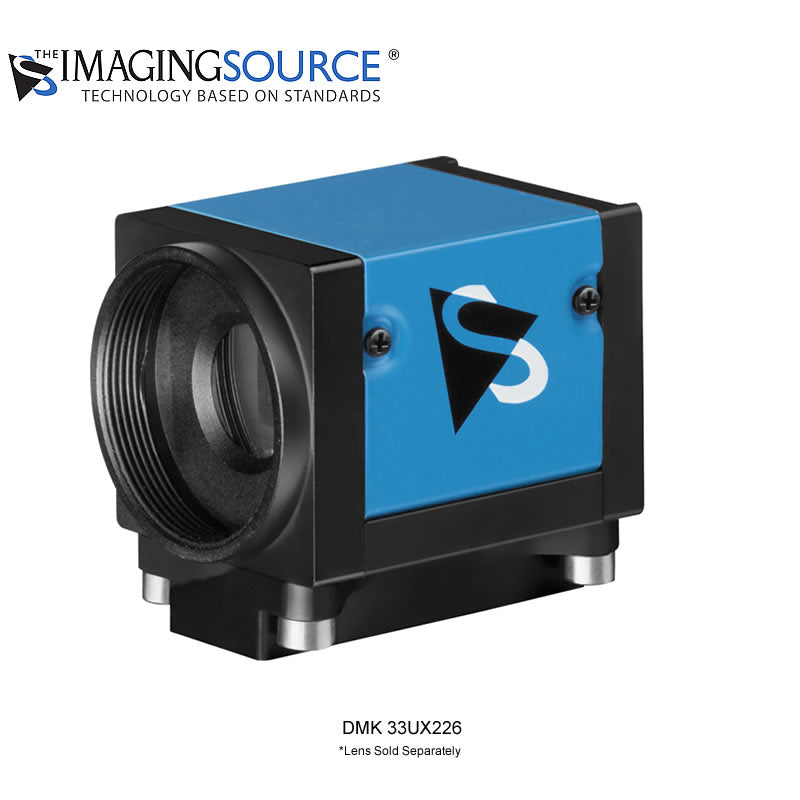

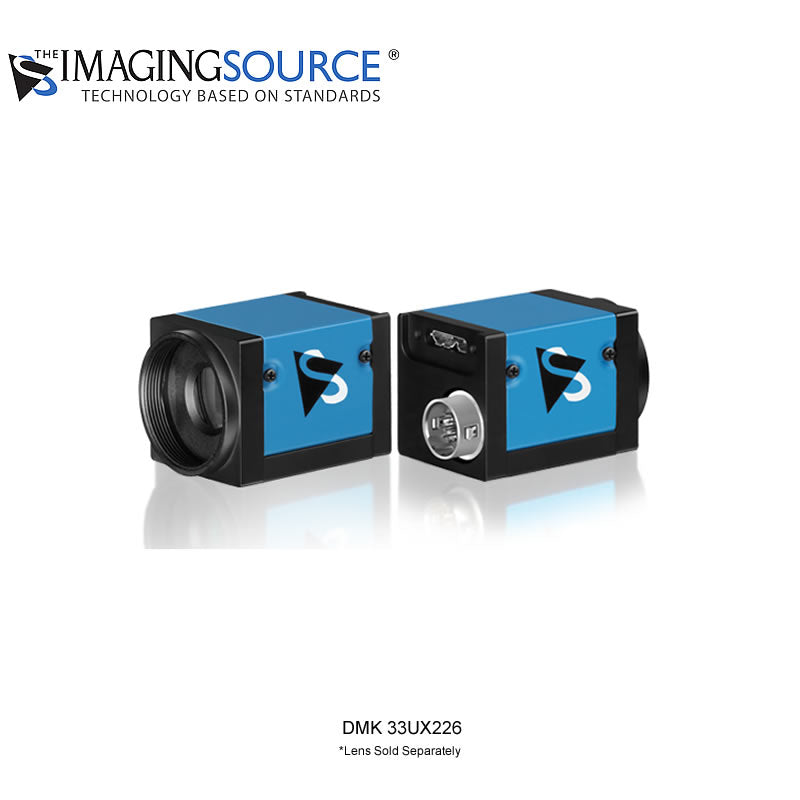

Imaging Source DMK 33UX226

USB 3.0 monochrome industrial camera

Capture Exactly What You See
The Imaging Source 12 megapixel industrial camera (DMK 33UX226) has been designed to be a cost-effective, versatile solution for demanding applications.

Thanks to the camera's USB 3.0 interface, 4,000×3,000 (12 MP), up to 30 fps is available on the host PC. The camera ships with Sony's 1/1.7 inch Sony STARVIS sensor (IMX226CLJ) technology, and allows a maximum resolution of 12 megapixels.

Key Features:

  • 1/1.7 inch Sony CMOS STARVIS sensor (IMX226CLJ)
  • 4,000×3,000 (12 MP), up to 30 fps
  • Rolling shutter
  • Trigger and I/O inputs
  • Windows and Linux software included

Dynamic Range

12 bit

Video Format

4000 × 3000 (12 MP)

IR-Cut Filter

No

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX226

Shutter

Rolling

Format

1/1.7 inch

Pixel Size

H: 1.85 µm, V: 1.85 µm

MP

12 MP

Resolution

4000 x 3000

FPS

30 FPS

Mono/Color

Monochrome

Iris

No

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 660 mA @ 5 VDC

Auto Iris Control

No

TriggerTrigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

50 µs to 300 s

Gain

0 dB to 27.04 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
