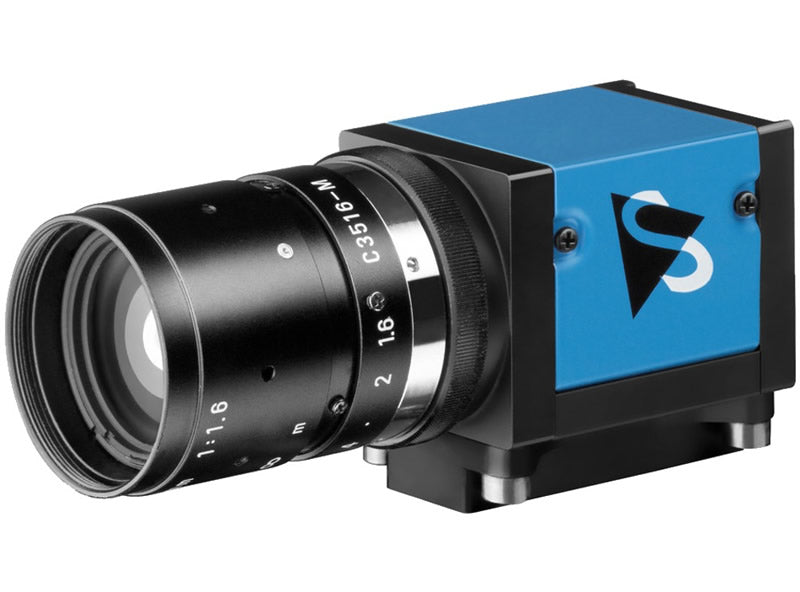

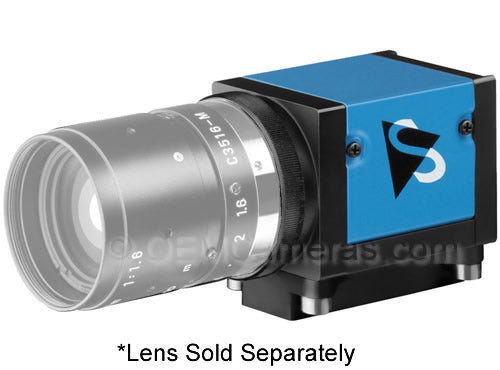

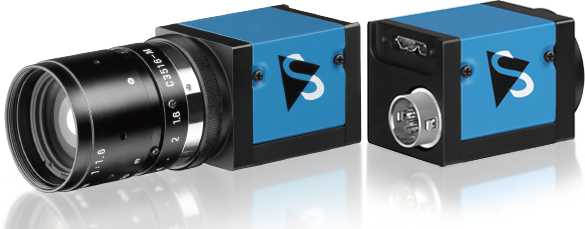

Imaging Source DMK 33UP1300 USB 3.0 Monochrome Industrial Camera

$574.00

• 1/2 inch ON Semiconductor CMOS Python sensor (PYTHON 1300)
• 1,280x1,024 (1.3 MP), up to 168 fps
• Global shutter
• Trigger and I/O inputs
• Manufactured by The Imaging Source

SKU: DMK 33UP1300

$574.00

Description

Specifications

Downloads

Imaging Source DMK 33UP1300

USB 3.0 Monochrome Industrial Camera

The Imaging Source DMK 33UP1300 monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2 inch ON Semiconductor CMOS Python PYTHON 1300 sensor. With up to 168 images per second, the DMK 33UP1300 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK 33UP1300 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

10 bit

IR-Cut Filter

Sensor Type

CMOS Python

Sensor Specification

onsemi PYTHON 1300

Shutter

Global

Pixel Size

H: 4.8 µm x V: 4.8 µm

1.3 MP

Resolution

1280 x 1024

FPS

210 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 680 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

50 µs to 10 s

Gain

0 dB to 9.21 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
