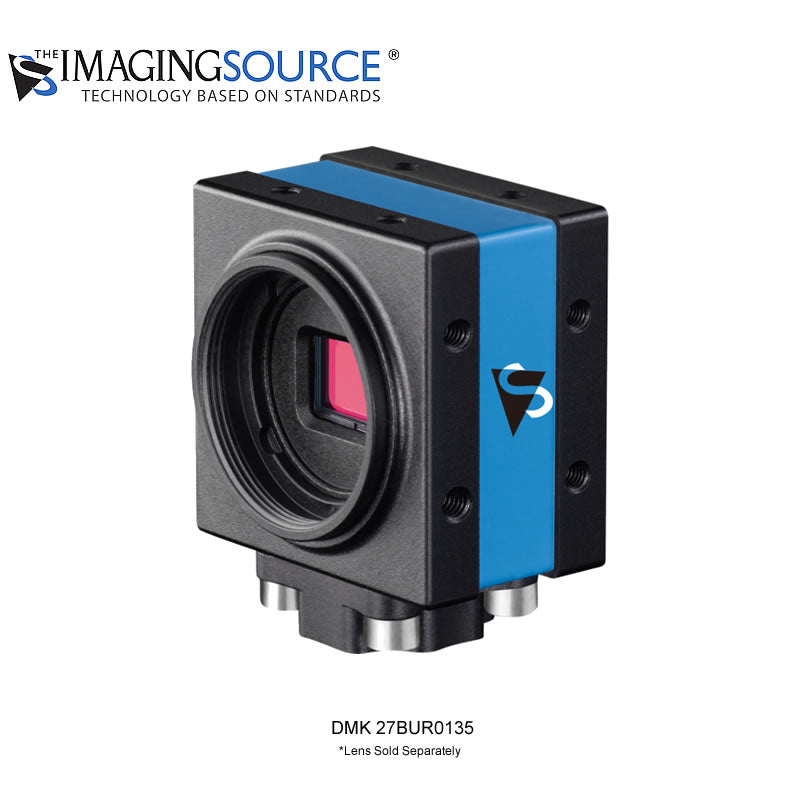

Imaging Source DMK 27BUR0135 USB 3.0 Monochrome Industrial Camera

$263.00

•1/3 inch On Semiconductor CMOS sensor (AR0135)
•1,280x960 (1.2 MP), up to 60 fps
•Global shutter
•Trigger and I/O inputs
•Windows and Linux software included

SKU: DMK 27BUR0135

$263.00

Description

Specifications

Downloads

Imaging Source DMK 27BUR0135

USB 3.0 Monochrome Industrial Camera

The Imaging Source DMK 27BUR0135 USB 3.0 monochrome industrial camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications.

The color camera ships with the very sensitive 1/3 inch On Semiconductor CMOS sensor (AR0135). With up to 60 images per second, the DMK 27BUR0135 is a highly versatile imaging solution. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK 27BUR0135 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

8/12 bit

Video Format

1280 × 960 (1.2 MP) Y16 @ 60 fps, 1280 × 960 (1.2 MP) Y800 @ 60 fps

IR-Cut Filter

Sensor Type

CMOS

Sensor Specification

onsemi AR0135

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

1.2 MP

Resolution

1280 x 960

FPS

60 FPS

Mono/Color

Monochrome

Iris

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

000 s to 1 s, 1/10

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
