Imaging Source DMK 27BUP031 USB 3.0 Monochrome Industrial Camera

$0.00

•1/2.5 inch Aptina CMOS sensor (MT9P031)
•2,592x1,944 (5 MP), up to 15 fps
•Rolling shutter
•Trigger and I/O inputs
•Windows and Linux software included

SKU: DMK 27BUP031

$0.00

Description

Specifications

Downloads

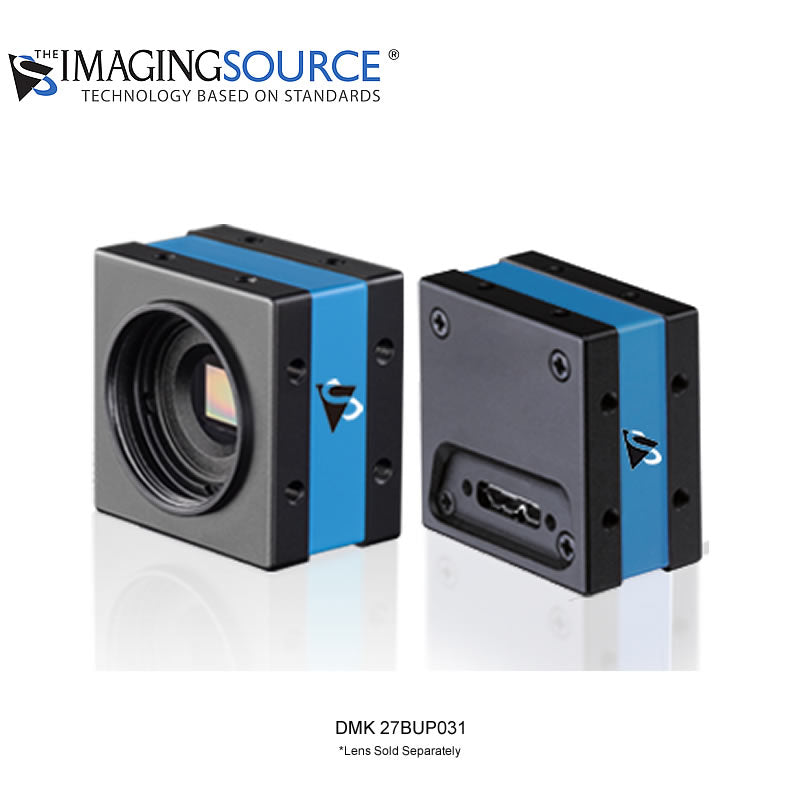

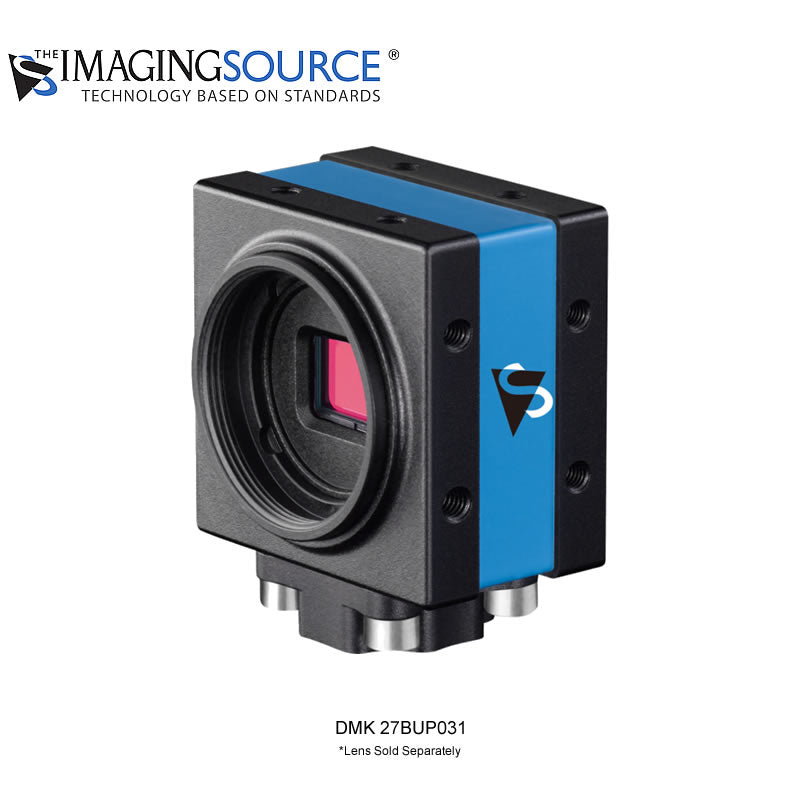

Imaging Source DMK 27BUP031

USB 3.0 monochrome industrial camera

The Imaging Source DMK 27BUP031 USB 3.0 monochrome industrial camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a monochrome CMOS sensor up to 2592x1944 (5MP), this camera features a variety of input, output, strobe, and trigger options.

_{* Please note, a lens is required and sold separately}

Dynamic Range

8/12 bit

Video Format

2592 × 1944 (5 MP) Y16 @ 7.5 fps, 2592 × 1944 (5 MP) Y800 @ 15 fps

IR-Cut Filter

Sensor Type

CMOS

Sensor Specification

onsemi MT9P031

Shutter

Rolling

Format

1/2.5 inch

Pixel Size

H: 2.2 µm x V: 2.2 µm

5 MP

Resolution

2592 x 1944

FPS

15 FPS

Mono/Color

Monochrome

Iris

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

000 s to 1/4 s, 1/20

Gain

0 dB to 12 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

'-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
