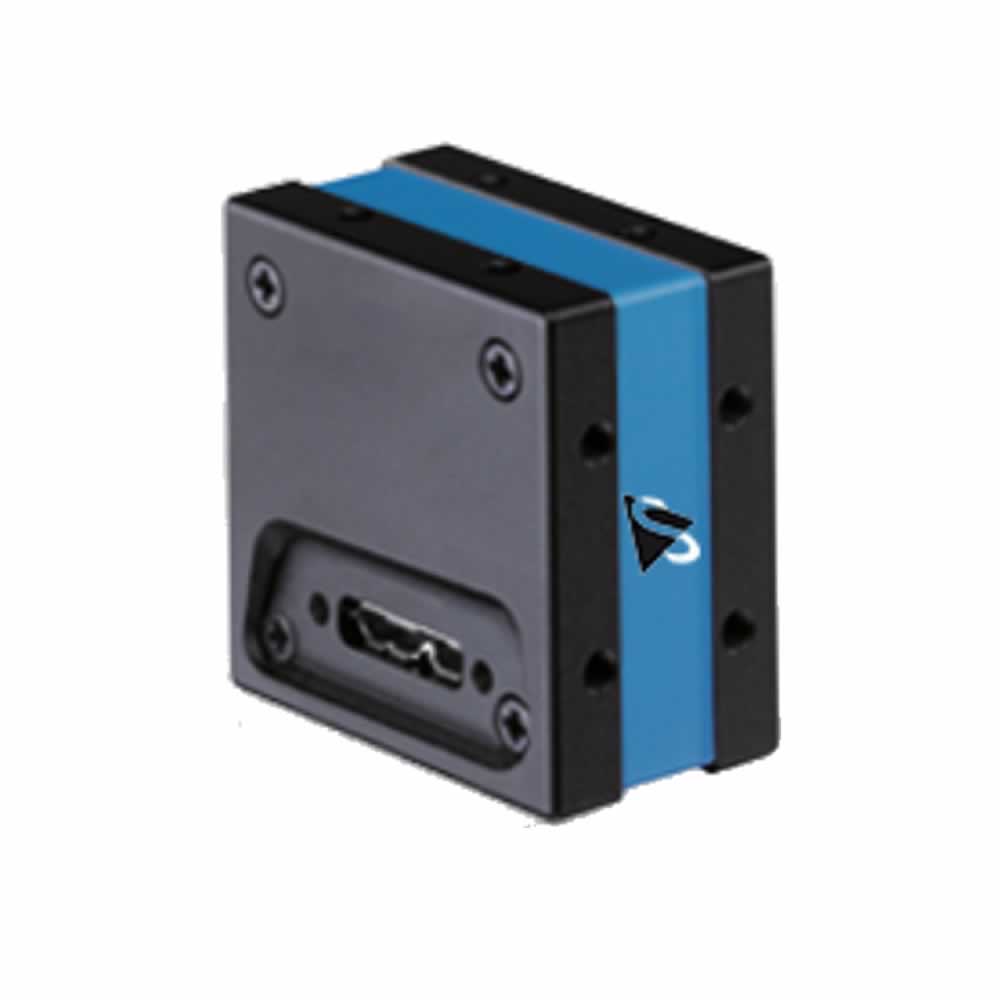

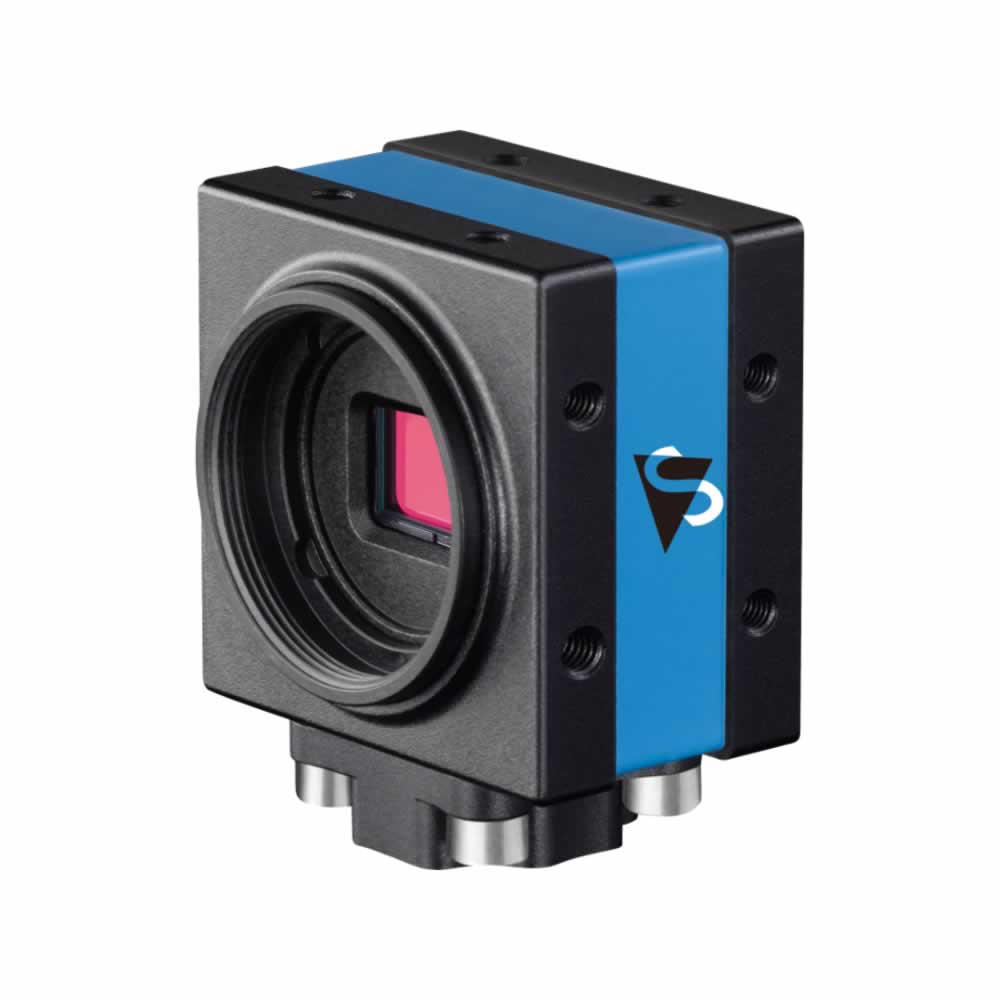

Imaging Source DMK 27AUJ003 USB 3.0 Monochrome Industrial Camera

$263.00

• 1/2.3 inch Aptina CMOS sensor (MT9J003)
• 3,856x2,764 (10.7 MP), up to 7 fps
• Rolling shutter
• I/O input

SKU: DMK 27AUJ003

$263.00

Description

Specifications

Downloads

Imaging Source DFK 27AUJ003

USB 3.0 monochrome industrial camera

The Imaging Source DFK 27AUJ003 monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.3 inch Aptina CMOS MT9J003 sensor.With up to 7 images per second, the DFK 27AUJ003 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

Dynamic Range

8/12 bit

Video Format

3856 × 2764 (10.7 MP) Y16 @ 4 fps, 3856 × 2764 (10.7 MP) Y800 @ 7 fps

IR-Cut Filter

Sensor Type

CMOS

Sensor Specification

onsemi MT9J003

Shutter

Rolling

Format

1/2.3 inch

Pixel Size

H: 1.67 µm x V: 1.67 µm

10.7 MP

Resolution

3856 x 2764

FPS

7 FPS

Mono/Color

Monochrome

Iris

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

1/20000 s to 1/4 s

Gain

0 dB to 12 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
