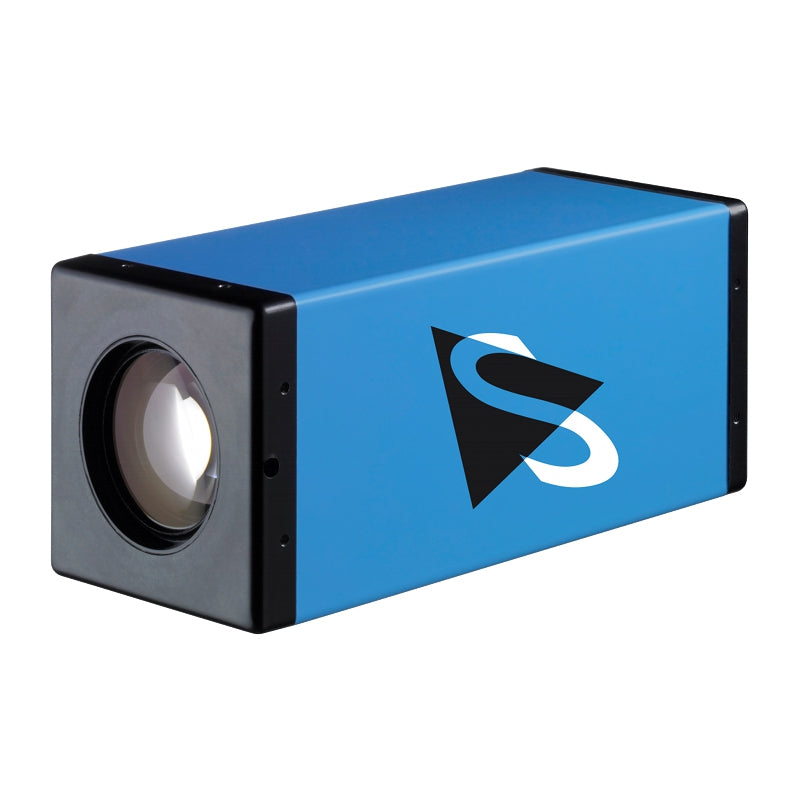

Imaging Source DMK Z12GX236 GigE Monochrome Zoom Camera

$1,333.00

•1/2.8 inch Sony CMOS Exmor sensor (IMX236LL)
•60 fps @ Full HD
•Motor zoom: 4.8 mm to 57.6 mm
•1,920x1,200 (2.3 MP), up to 36 fps
•Rolling shutter
•Trigger and I/O inputs

SKU: DMK Z12GX236

$1,333.00

Description

Specifications

Downloads

Imaging Source DMK Z12GX236

GigE Monochrome Zoom Camera

The Imaging Source DMK Z12GX236 monochrome camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive 1/2.8 inch Sony CMOS Exmor IMX236LL sensor. With up to 36 images per second, the DMK Z12GX236 is a low cost, yet highly versatile imaging solution. The camera integrates an autofocus lens (Automatic/manual).

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DMK Z12GX236 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

8/12 bit

Video Format

1920 × 1200 (2.3 MP) Y800 @ 41 fps, 1920×1200 (2.3 MP) Y16 @ 20 fps

IR-Cut Filter

Sensor Type

CMOS Exmor

Sensor Specification

Sony IMX236LLJ

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2.8 µm x V: 2.8 µm

2.3 MP

Resolution

1920 x 1200

FPS

41 FPS

Focal Length

4.8 mm (wide) to 57.6 mm (tele)

Mono/Color

Monochrome

F-Stop

2.2 (wide) to 2.3 (tele)

MOD

3 cm (wide) to 70 cm (tele)

Focus

automatic and manual

Iris

automatic and manual

Lens Mount

Integrated

Interface

PoE, GigE

Supply Voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC

Current Consumption

Approx. 600 mA @ 12 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 50 mm x W: 50 mm x L: 103 mm

Mass

330g

Adjustable Shutter

1/100000 s to 30 s

Gain

0 dB to 36 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)["Humidity (Operating)\t"]

-20 °C to 60 °C["\t 20 % to 80 % (non-condensing)"]
