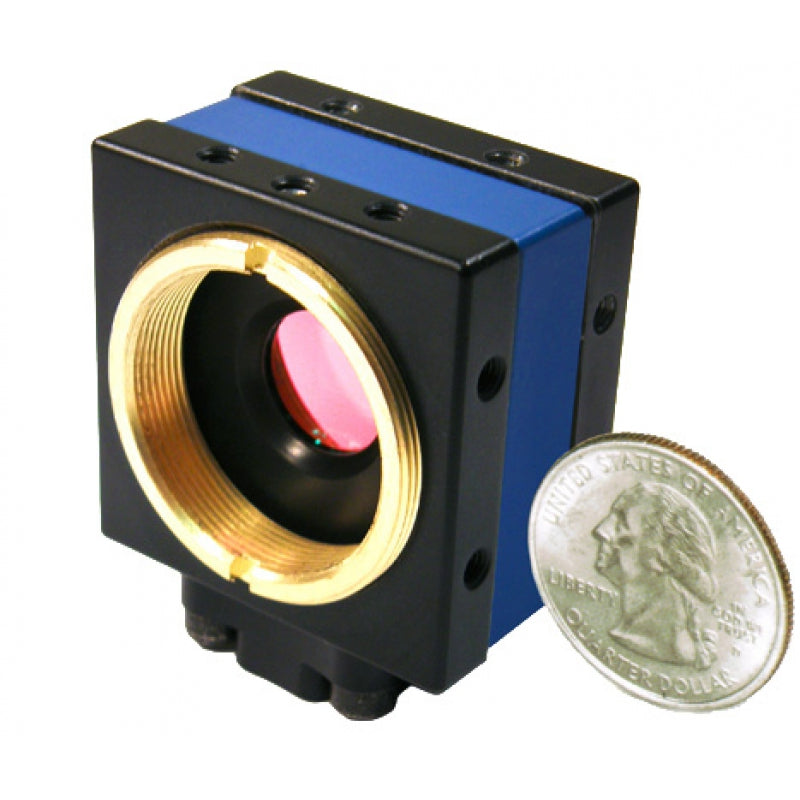

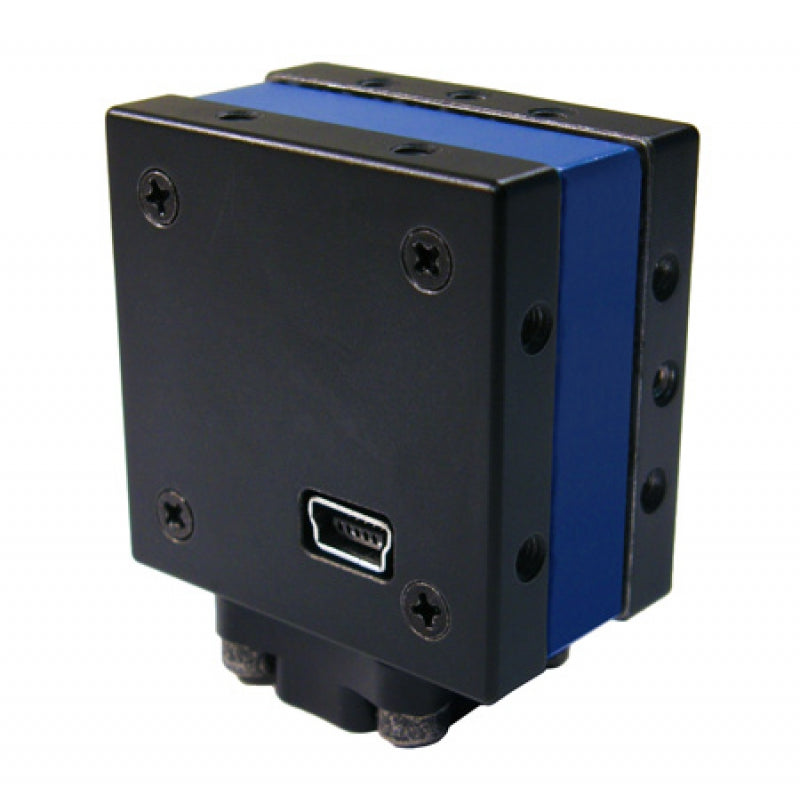

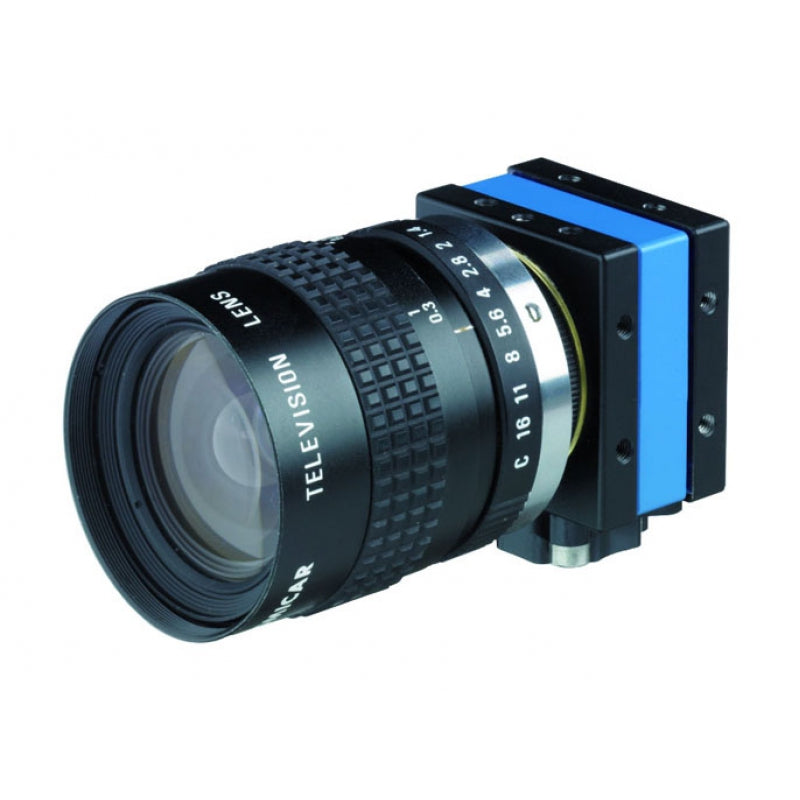

Imaging Source DMK 42BUC03 Monochrome Industrial Camera

$229.00

Product Highlights

• USB 2.0 Monochrome
• 1/3" Micron CMOS
• Global Shutter
• 1280x960 Resolution
• Up to 25fps
• Trigger Input + I/O

SKU: DMK 42BUC03

$229.00

Description

Specifications

Downloads

Imaging Source DMK 42BUC03

Monochrome Industrial Camera

The Imaging Source DMK 42BUC03 Monochrome Industrial Camera is a cutting-edge device with USB 2.0 connectivity, designed for high-performance imaging applications. Featuring a 1/3" Micron CMOS sensor with Global Shutter technology, this camera delivers crisp and clear images at a resolution of 1280x960. With a frame rate of up to 25fps, it ensures smooth video capture. Additionally, the camera is equipped with Trigger Input + I/O for seamless integration into industrial automation systems.

Video Format

1280×960 (1.2 MP) RGB24 @ 25 fps, 1280×960 (1.2 MP) Y800 @ 25 fps

IR-Cut Filter

Sensor Type

CMOS

Sensor Specification

onsemi MT9M021

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

1.2 MP

Resolution

1280 x 960

FPS

25 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 2.0 (forwards compatible)

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

1/10000 s to 30 s

Gain

0 dB to 18 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

The Imaging Source Product Catalog

Download
