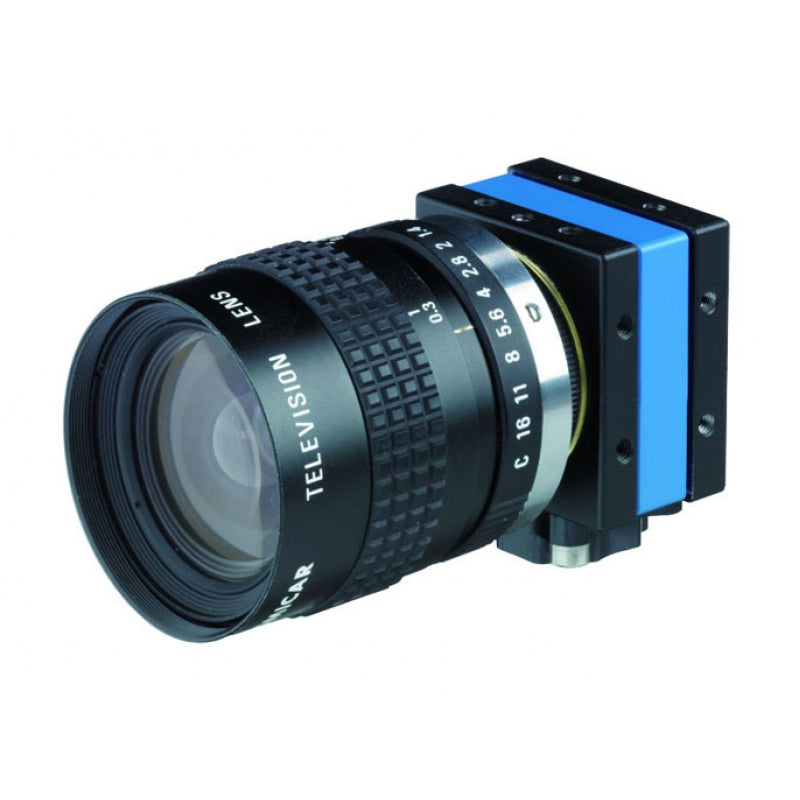

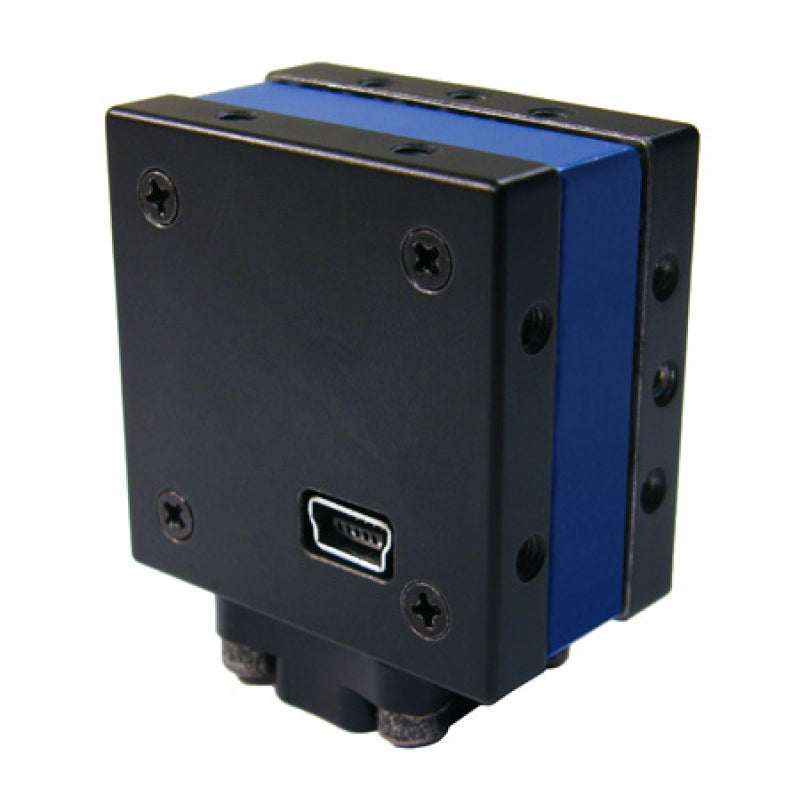

Imaging Source DMK 42AUC03 USB 2.0 Monochrome Industrial Camera

$217.00



• USB 2.0 Monochrome
• 1/3" Micron CMOS
• Global Shutter
• 1280x960 Resolution
• Up to 25fps

SKU: DMK 42AUC03

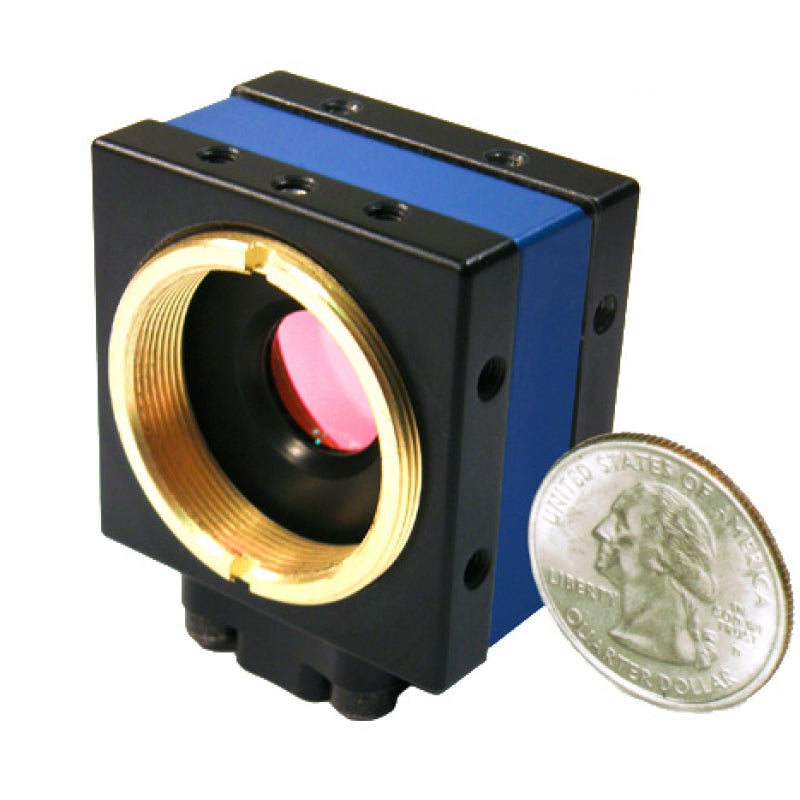

dfk-72auc02-800x800_20

Imaging Source DMK 42AUC03 USB 2.0 Monochrome Industrial Camera

$217.00

$217.00

Description
Specifications
Downloads

Imaging Source DMK 42AUC03

USB 2.0 Monochrome Industrial Camera

The DMK 42AUC03 monochrome camera supports multiple pixel formats with variable bits-per-pixel settings. The names of the pixel formats and the way to select them depends on the driver used to control the camera. The following table contains a short overview of all possible formats followed by a more detailed description.

  • USB 2.0 Monochrome
  • 1/3" Micron CMOS
  • Global Shutter
  • 1280x960 Resolution
  • Up to 25fps

Video Format

1280×960 (1.2 MP) RGB24 @ 25 fps, 1280×960 (1.2 MP) Y800 @ 25 fps

IR-Cut Filter

No

Sensor Type

CMOS

Sensor Specification

onsemi AR0134

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

MP

1.2 MP

Resolution

1280 x 960

FPS

25 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 2.0 (forwards compatible)

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

No

Trigger

No

I/O

No

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

1/10000 s to 30 s

Gain

0 dB to 18 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)
