Imaging Source DMK 23UM021 USB 3.0 Monochrome Industrial Camera

$437.00

• USB 3.0 Monochrome
• 1/3" Aptina CMOS
• Global Shutter
• 1280x960 Resolution
• Up to 60fps

SKU: DMK-23UM021

$437.00

Description

Specifications

Downloads

Imaging Source DMK 23UM021

USB 3.0 Monochrome Industrial Camera

The Imaging Source DMK 23UM021 USB 3.0 camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a monochrome CMOS sensor up to 1280x960 and up to 60fps this high resolution USB 3.0 camera boasts a low cost and highly versatile imaging solution.

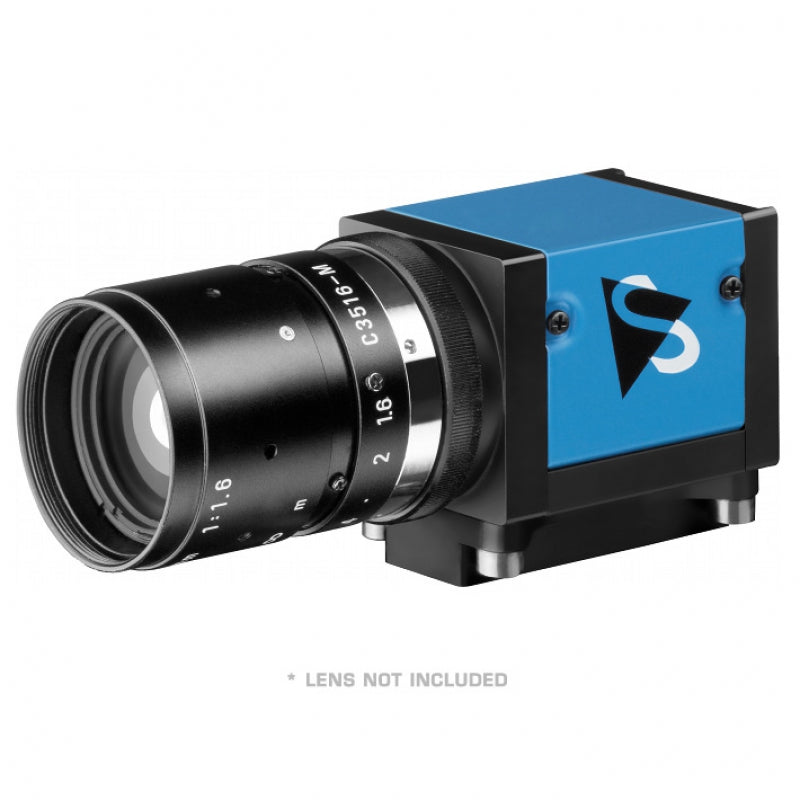

* Please note, a lens is required and sold separately

Dynamic Range

8/12 bit

Video Format

1280×960 (1.2 MP) RGB32 @ 60 fps, 1280×960 (1.2 MP) Y16 @ 30 fps, 1280×960 (1.2 MP) Y800 @ 60 fps

Sensor Type

CMOS

Sensor Specification

onsemi MT9M021

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

1.2 MP

Resolution

1280 x 960

FPS

60 FPS

Mono/Color

Monochrome

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

0.1 ms to 1 s

Gain

0 dB to 9 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)

The Imaging Source Product Catalog

Download
