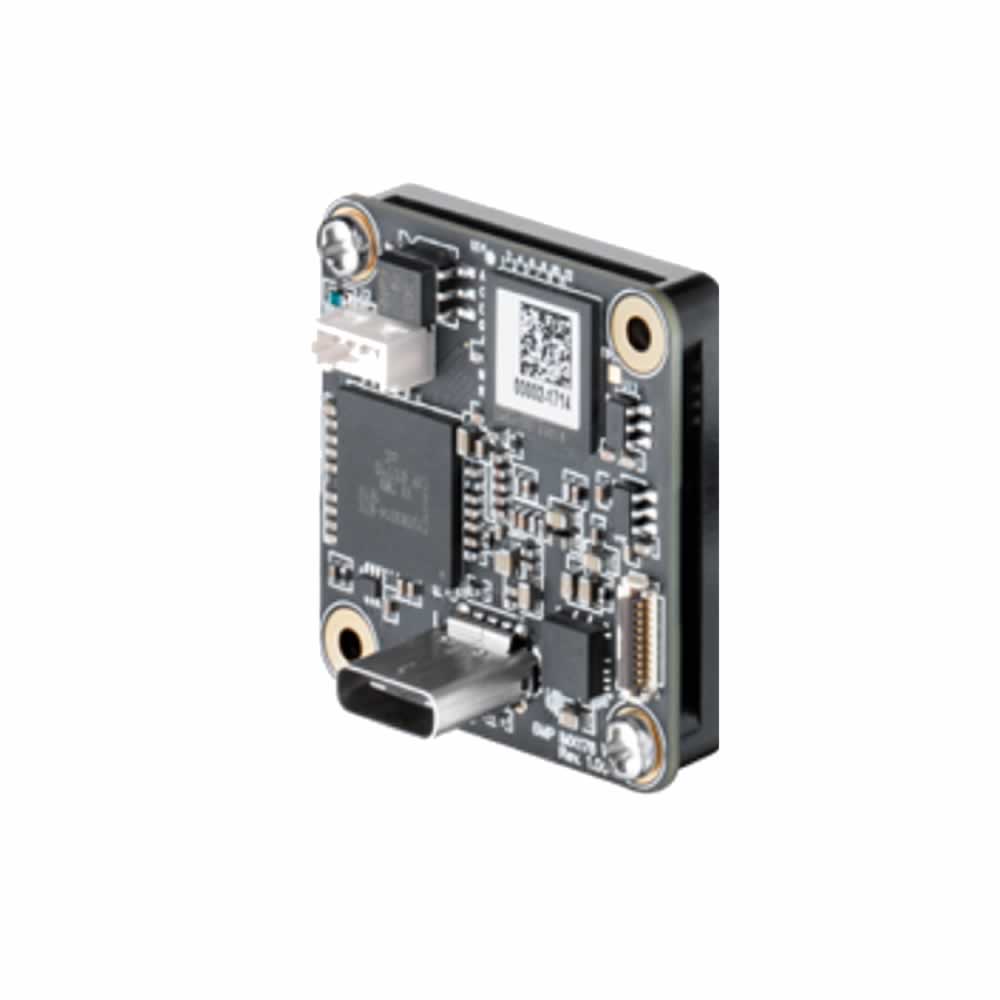

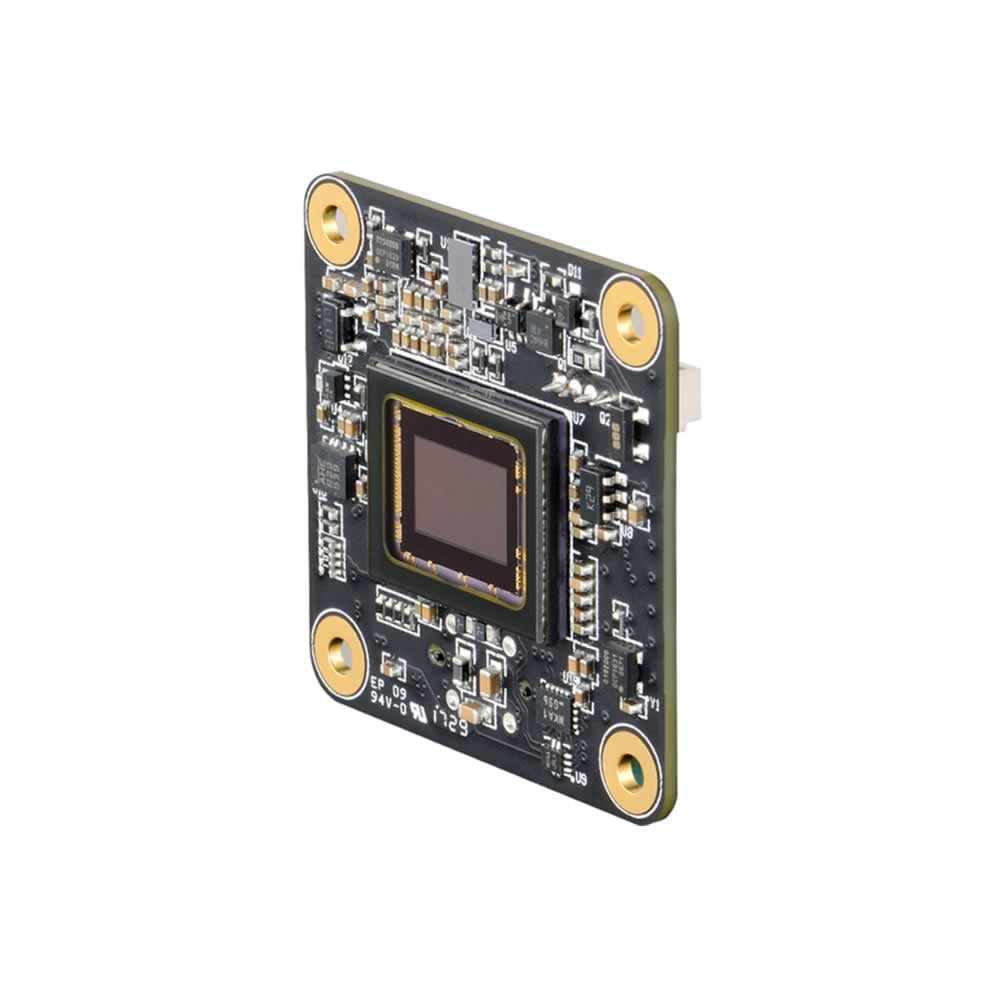

Imaging Source DFM 37UX273-ML USB 3.1 Color Board Camera

$424.00

•1/2.9 inch Sony CMOS Pregius sensor (IMX273LQR)
•1,440x1,080 (1.6 MP), up to 238 fps
•Global shutter
•Trigger and I/O inputs
•Manufactured by The Imaging Source
•Windows and Linux software included

SKU: DFM 37UX273-ML

$424.00

Description

Specifications

Downloads

Imaging Source DFM 37UX273-ML

USB 3.1 Color Board Camera

The Imaging Source DFM 37UX273 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

These cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy.

Additionally, the sensor size (1/2.9) means they can be combined with a variety of low-priced standard lenses available.

Dynamic Range

10 bit

Video Format

1440 × 1080 (1.6 MP)

IR-Cut Filter

Yes

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX273

Shutter

Global

Format

1/2.9 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

1.6 MP

Resolution

1440 x 1080

FPS

238 FPS

Mono/Color

Color

Lens Mount

C/CS

Interface

USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 380 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 15 mm

Mass

Adjustable Shutter

1 µs to 30 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
