Imaging Source DFM 37UX252-ML USB 3.1 color board camera

$736.00

•1/1.8 inch Sony CMOS Pregius sensor (IMX252LQR)
•2,048x1,536 (3.1 MP), up to 119 fps
•Global shutter
•Trigger and I/O inputs
•Manufactured by The Imaging Source
•Windows and Linux software included

SKU: DFM 37UX252-ML

$736.00

Description

Specifications

Downloads

DFM 37UX252-ML

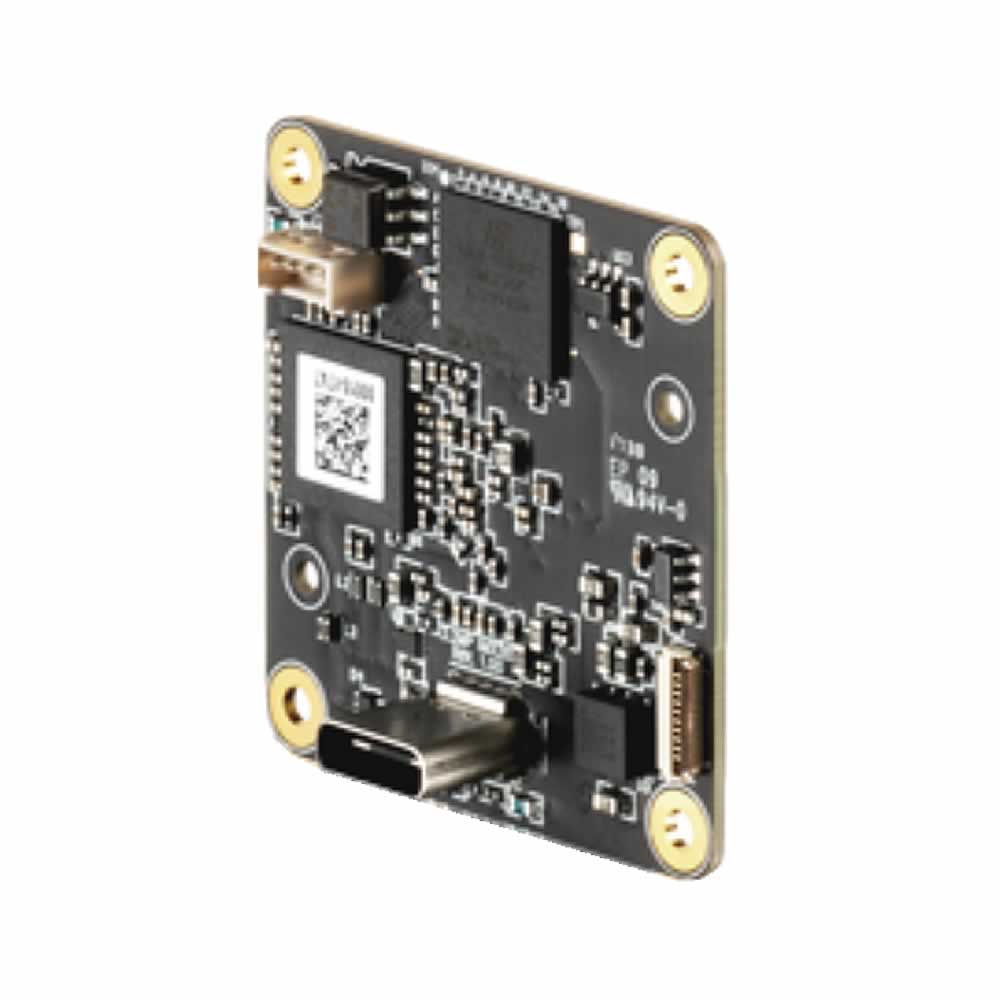

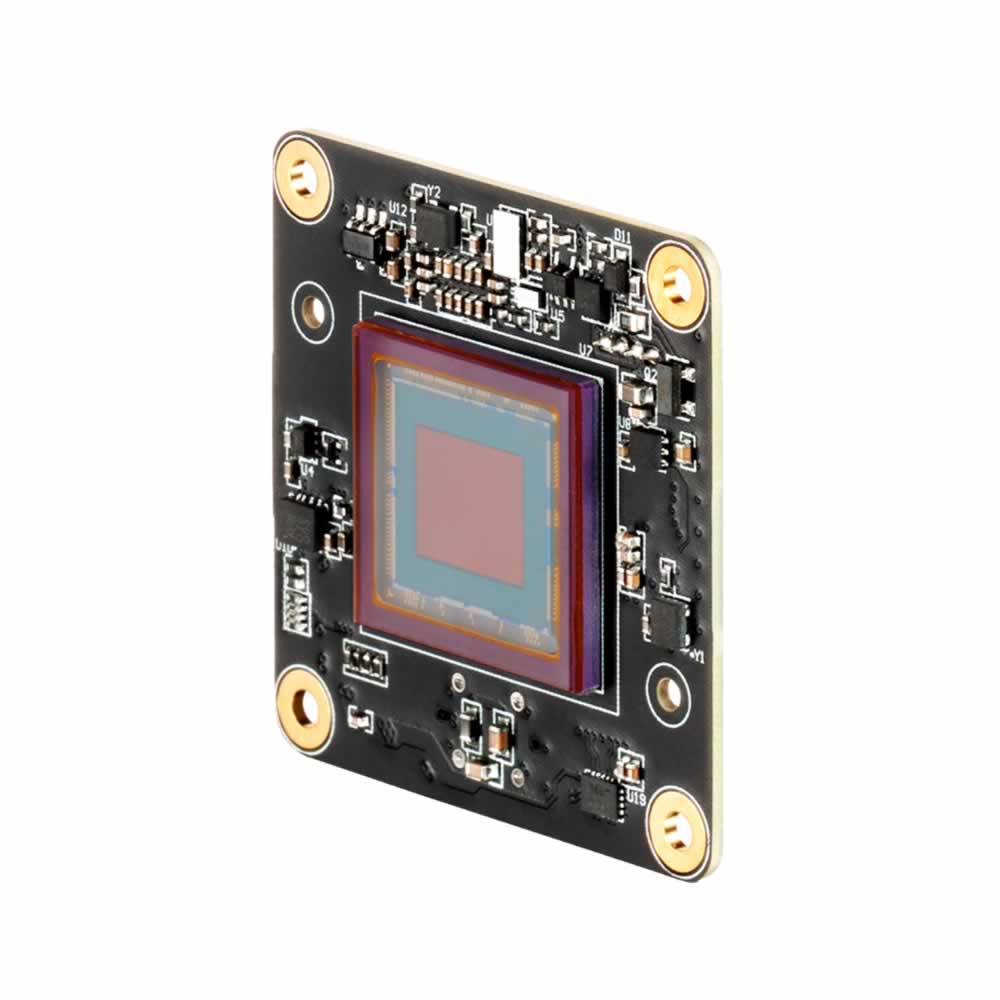

USB 3.1 color board camera

The Imaging Source DFM 37BUX252 USB 3.1 Color Board Cameras are equipped with highly-sensitive, low-noise Sony Pregius (IMX252LQR) global-shutter sensors which offer exceptional distortion-free image quality and color fidelity.

The 3.1 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust design and support applications.

Additionally, their sensor size (1/1.8") means they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

2048 × 1536 (3.1 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX252

Shutter

Global

Format

1/1.8 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

3.1 MP

Resolution

2048 x 1536

FPS

119 FPS

Mono/Color

Monochrome

Lens Mount

M12x0.5, optional

Interface

USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 420 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 15 mm

Mass

Adjustable Shutter

1 µs to 4 s

Gain

0 dB to 48 dB

Temperature (Operating)

'-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)

The Imaging Source Product Catalog

Download
