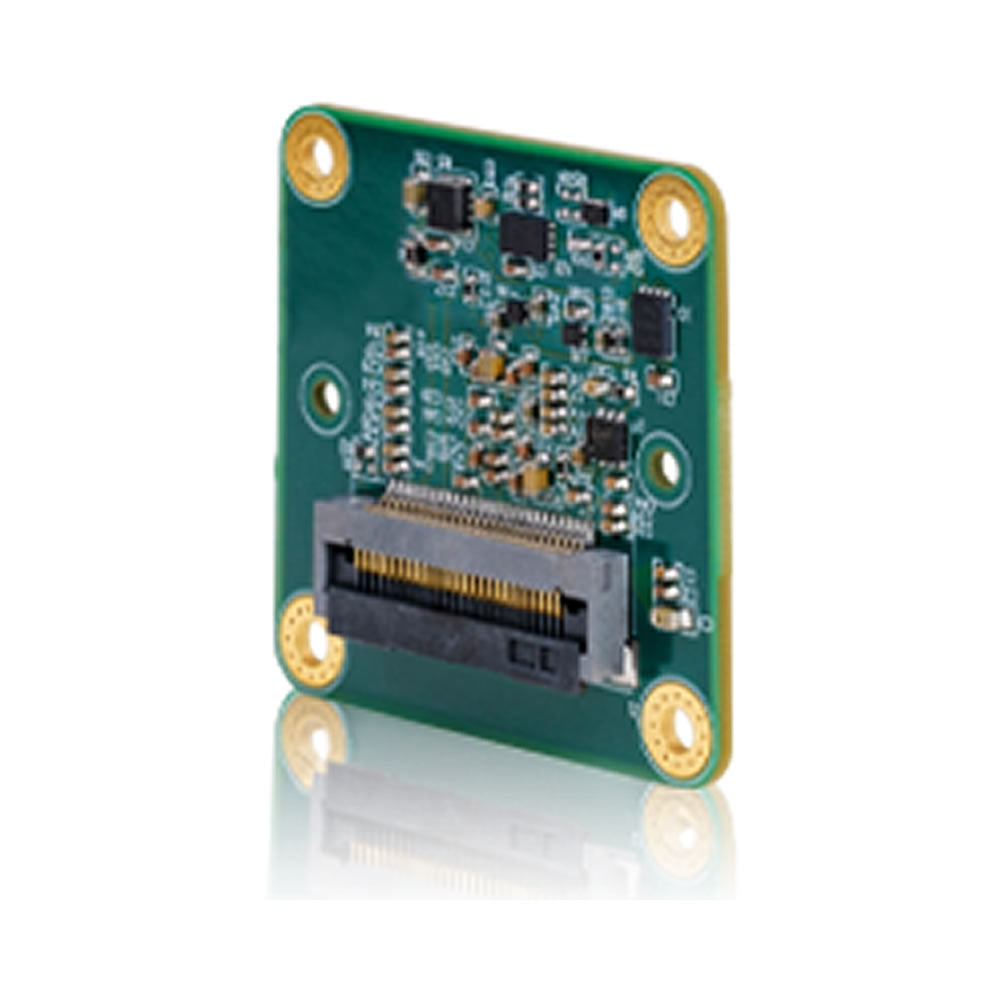

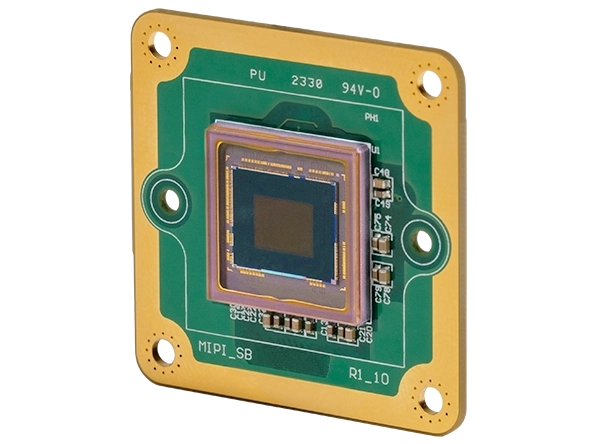

Imaging Source DFM 36SX296-ML MIPI CSI-2 color board camera

$137.00

• 36S Series Color MIPI CSI-2 Camera
• 22-Pin MIPI CSI-2 connector compatible with NVIDIA Orin, NXP i.MX 8M Plus and Raspberry Pi 5
• 1/2.9 inch Sony CMOS Pregius IMX296 Sensor
• 1,440×1,080 (1.6 MP), up to 60 fps
• Pixel Size: H: 3.45 µm, V: 3.45 µm
• Global Shutter
• Trigger Input
• Only 30×30×6 mm

SKU: DFM 36SX296-ML

$137.00

Description

Specifications

Downloads

DFM 36SX296-ML

MIPI CSI-2 color board camera

The Imaging Source's high-performance, DFM 36SX296-ML color MIPI CSI-2 board cameras for embedded vision applications combine a MIPI CSI-2 sensor module and a 15-pin CSI-2 adapter for plug-and-play integration with Raspberry Pi 4B, NVIDIA® Jetson Nano™ and NVIDIA® Jetson Xavier™ NX platforms. Alternatively, The Imaging Source offers MIPI CSI-2 sensor modules for maximum design flexibility. These sensors feature a 28-pin interface defined by The Imaging Source (with no adapter) and allow application engineers to adapt the interface to the platform of their choice.

Dynamic Range

10 bit

Video Format

1440 x 1080 (1.6 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX296LQR-C

Shutter

Global

Format

1/2.9 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

1.6 MP

Resolution

1440 x 1080

FPS

60 FPS

Mono/Color

Color

Lens Mount

M12x0.5, optional

Interface

MIPI CSI-2

Supply Voltage

5V (±10%)

Current Consumption

Approx 185 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 5.45 mm

Mass

Adjustable Shutter

1 µs to 1 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
