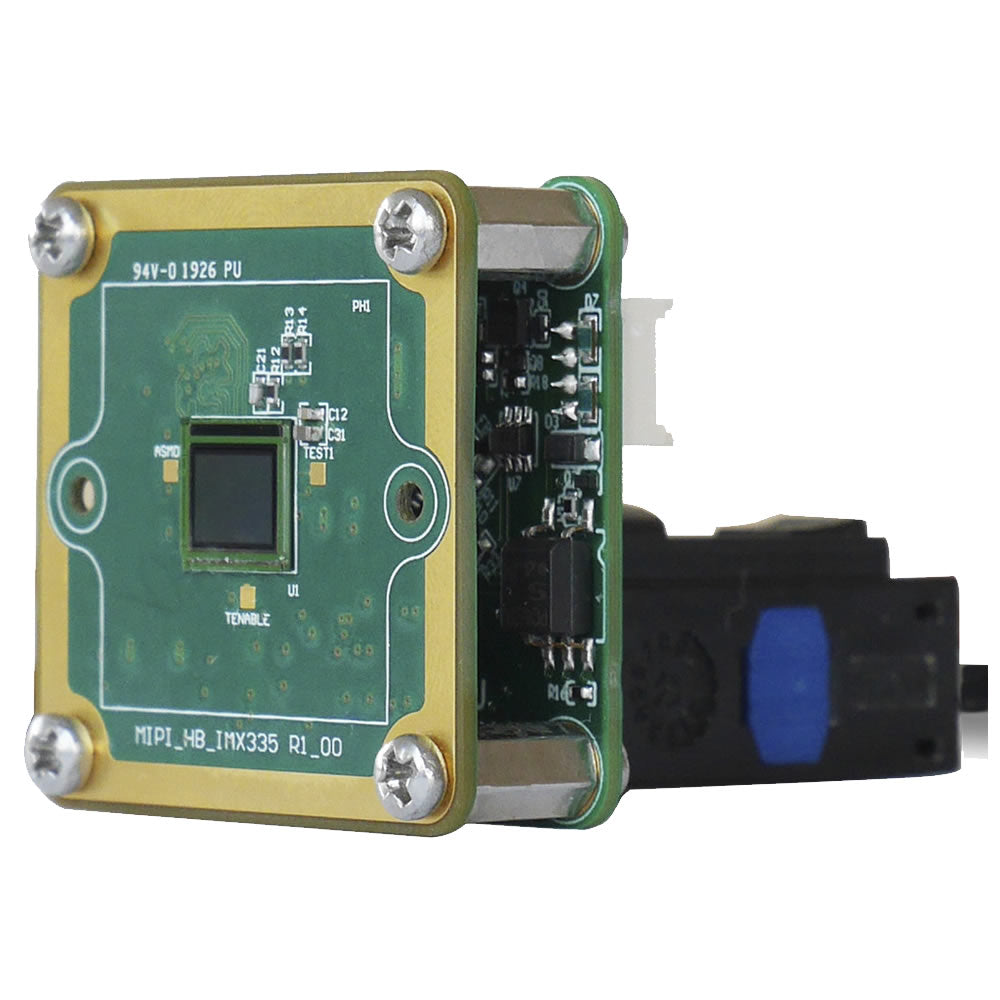

Imaging Source DFM 36CX335-ML FPD-Link III color board camera

$332.00

• 1/2.8 inch Sony CMOS STARVIS sensor (IMX335)
• 2,592x1,944 (5 MP), up to 30 fps
•Rolling shutter
• Linux software included

SKU: DFM 36CX335-ML

$332.00

Description

Specifications

Downloads

DFM 36CX335-ML

FPD-Link III color board camera

The Imaging Source DFM 36CX335-ML MIPI CSI-2 camera with FPD-Link III serializer boards offer nearly the same feature set as MIPI CSI-2 cameras, but allow cable lengths up to 15m. Image data, commands and power supply are transmitted via a thin coaxial cable. The FPD-Link board cameras can be used with NVIDIA Jetson Nano, NVIDIA Jetson AGX Xavier as well as Raspberry Pi 4 and feature the latest Sony and ONSemi CMOS sensors (rolling or global shutter).

The board cameras are suitable for single or multi-camera embedded systems for automotive, IoT and standard machine vision applications.

Dynamic Range

12 bit

Video Format

2592 X 1944 (5 MP)

IR-Cut Filter

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX335

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2 µm x V: 2 µm

5 MP

Resolution

2592 x 1944

FPS

30 FPS

Mono/Color

Color

Lens Mount

M12x0.5, optional

Interface

FPD-Link III

Supply Voltage

27 VDC to 10 VDC

Current Consumption

Approx. 80 mA @ 18 VDC

Auto Iris Control

Trigger

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 27.5 mm

Mass

12g

Adjustable Shutter

20 µs to 0.5 s

Gain

0 dB to 72 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
