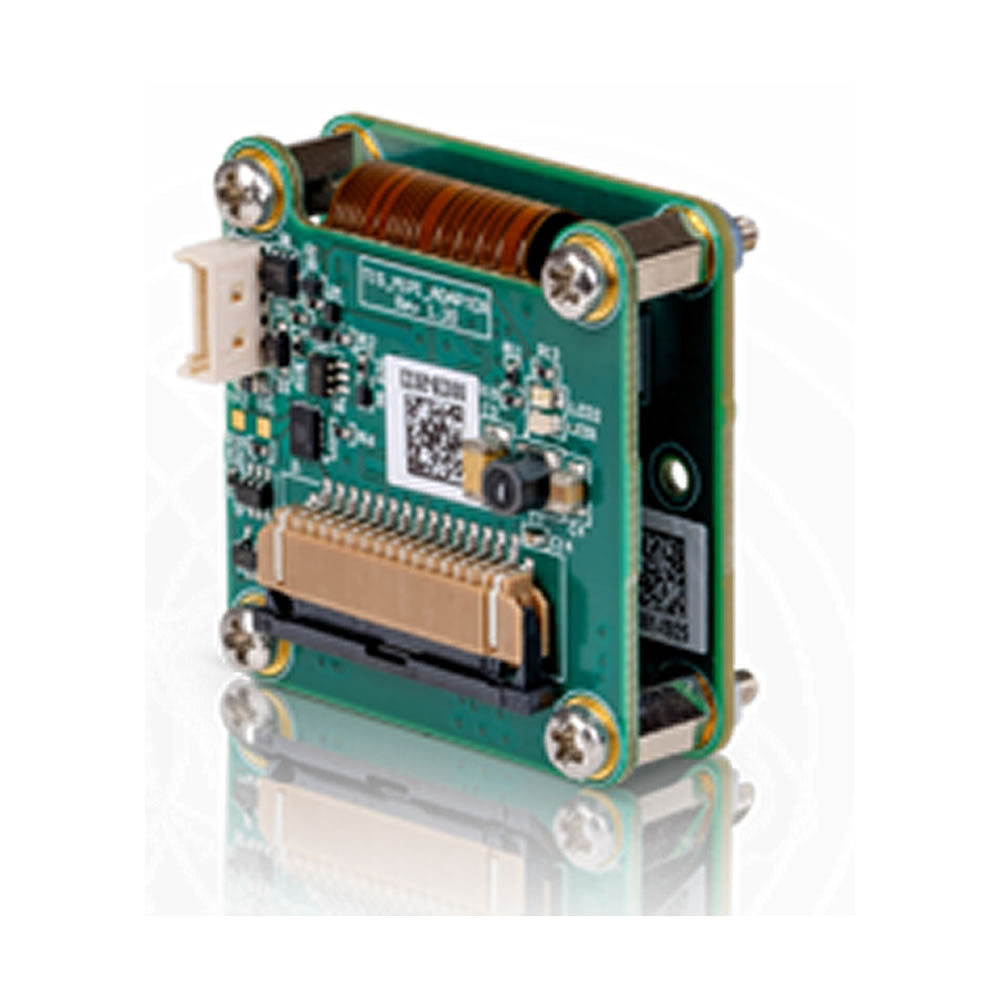

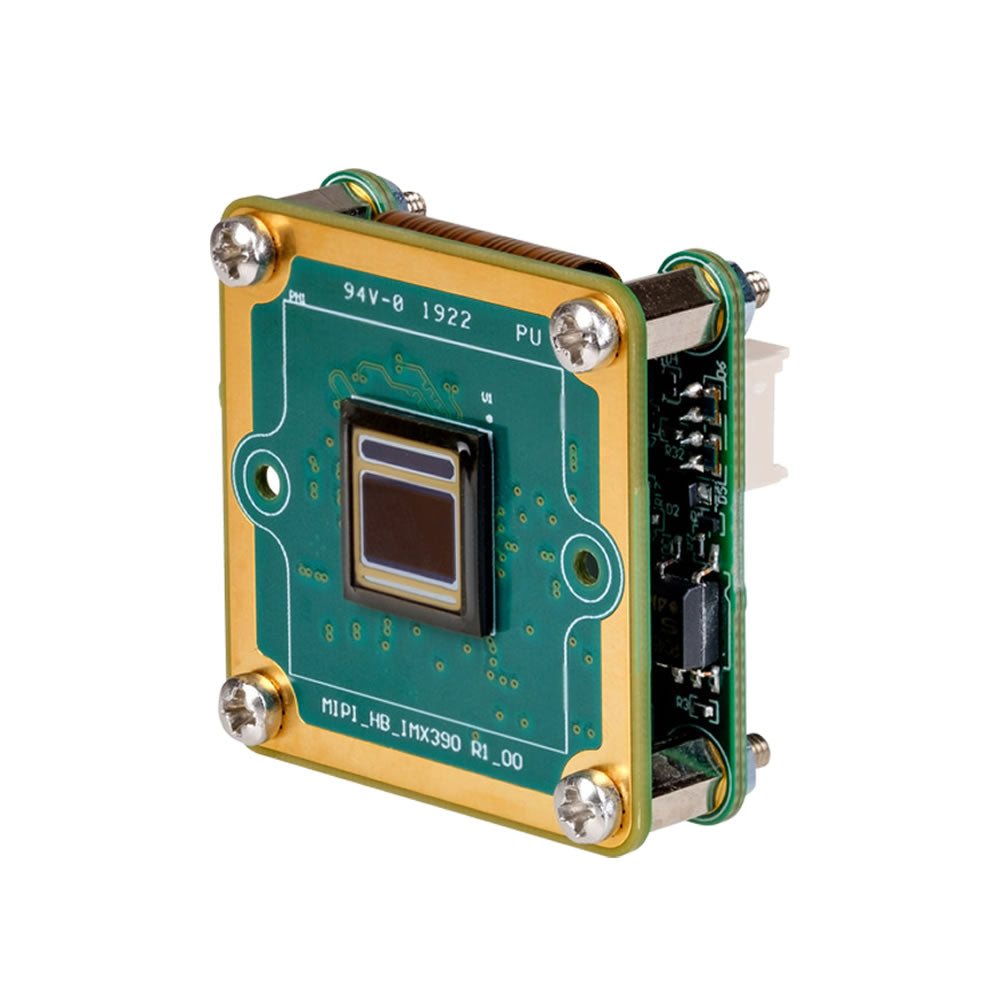

Imaging Source DFM 36AX390-ML 15 pin design-in color board camera

$332.00

• 1/2.7 inch Sony CMOS sensor (IMX390)
• 1,920x1,200 (2.3 MP), up to 60 fps
• Rolling shutter
• I/O input
• Linux software included

SKU: DFM 36AX390-ML

$332.00

Description

Specifications

Downloads

DFM 36AX390-ML

15 pin design-in color board camera

These high-performance design-in board cameras from The Imaging Source for embedded vision applications offer a 15-pin CSI-2 interface for plug-and-play integration with embedded development kits for NVIDIA® Jetson™ and Raspberry Pi.

The Imaging Source's 15-pin design-in board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses.

The included software allows you to adjust parameters such as gain, exposure, frame rate,

Dynamic Range

12 bit

Video Format

1920 x 1200 (2.3 MP)

IR-Cut Filter

Sensor Type

CMOS

Sensor Specification

Sony IMX390

Shutter

Rolling

Format

1/2.6 inch

Pixel Size

H: 3 µm x V: 3 µm

2.3 MP

Resolution

1920 x 1200

FPS

25 FPS

Mono/Color

Color

Lens Mount

M12x0.5, optional

Interface

15-pin Raspberry Pi-compatible connector

Supply Voltage

3.3 VDC

Current Consumption

Approx. 220 mA @ 3.3 VDC

Auto Iris Control

Trigger

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 16.2 mm

Mass

12g

Adjustable Shutter

15 µs to 0.1 s

Gain

0 dB to 27 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
