Imaging Source DFM 36AX296-ML 15 pin design-in color board camera

$252.00

• 1/2.9 inch Sony CMOS Pregius sensor (IMX296)
• 1,440x1,080 (1.6 MP), up to 60 fps
• Global shutter
• Trigger and I/O inputs
• Linux software included

SKU: DFM 36AX296-ML

$252.00

Description

Specifications

Downloads

DFM 36AX296-ML

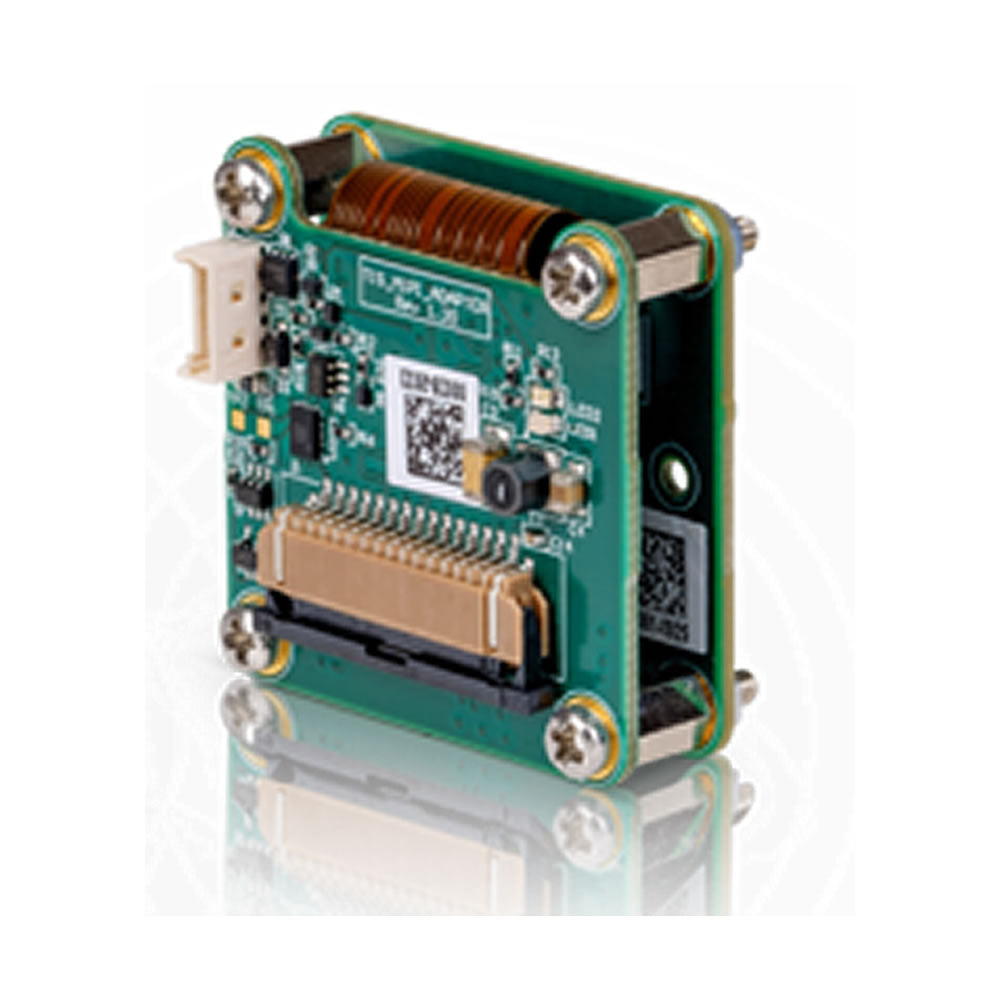

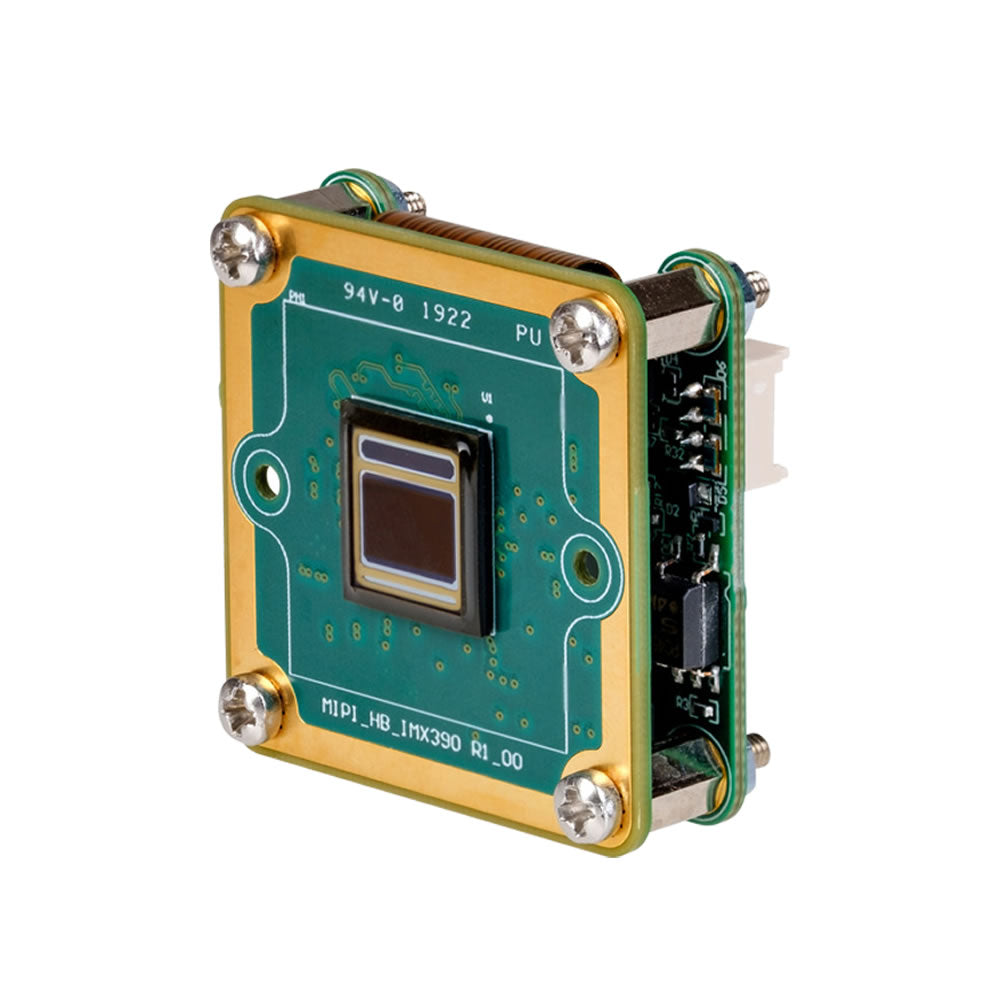

15 pin design-in board camera

These high-performance design-in board cameras from The Imaging Source for embedded vision applications offer a 15-pin CSI-2 interface for plug-and-play integration with embedded development kits for NVIDIA® Jetson™ and Raspberry Pi.

The Imaging Source's 15-pin design-in board cameras feature the latest CMOS image sensors from Sony and onsemi (global and rolling shutter) and are compatible with a wide range of M12 lenses and C/CS mount lenses.

The included software allows you to adjust parameters such as gain, exposure, frame rate,

Dynamic Range

10 bit

Video Format

1440 x 1080 (1.6 MP)

IR-Cut Filter

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX296

Shutter

Global

Format

1/2.9 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

1.6 MP

Resolution

1440 x 1080

FPS

60 FPS

Mono/Color

Color

Lens Mount

M12x0.5, optional

Interface

15-pin Raspberry Pi-compatible connector

Supply Voltage

3.3 VDC

Current Consumption

Approx. 350 mA @ 3.3 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 30 mm x W: 30 mm x L: 16.2 mm

Mass

12g

Adjustable Shutter

1 µs to 1 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
