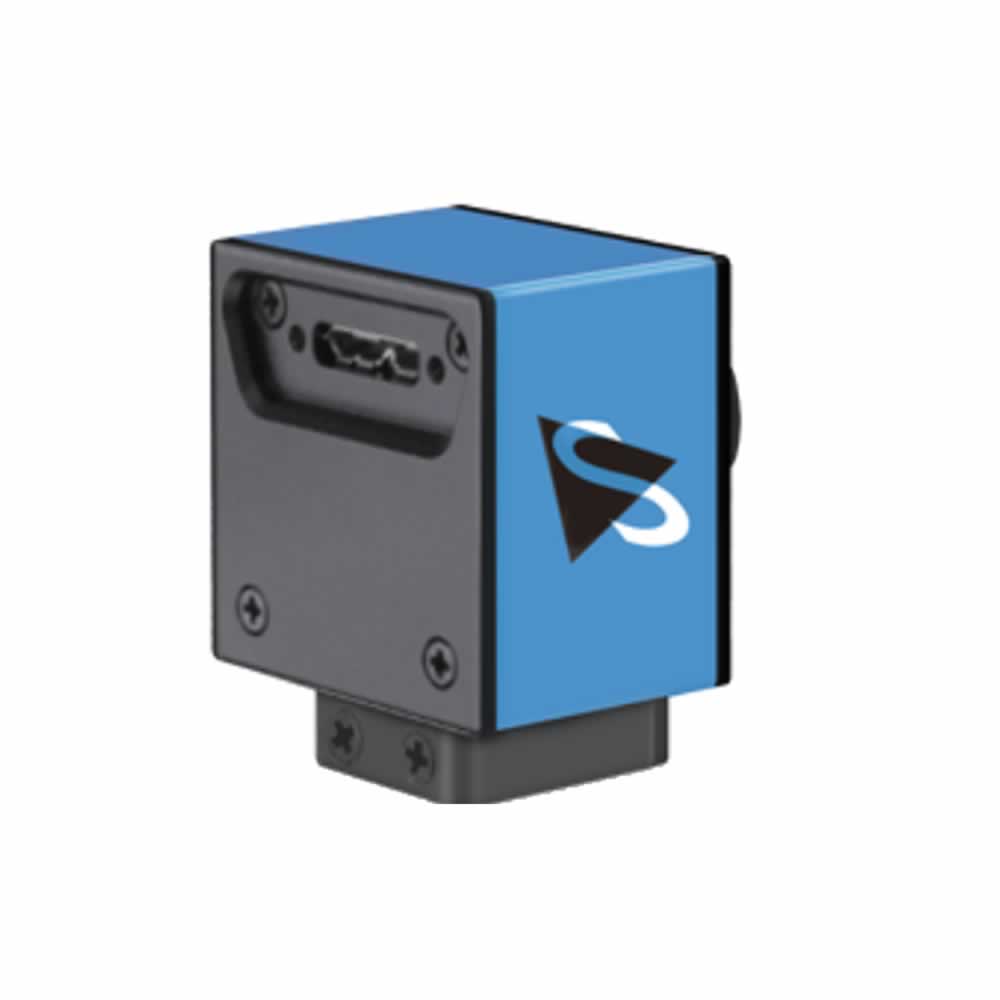

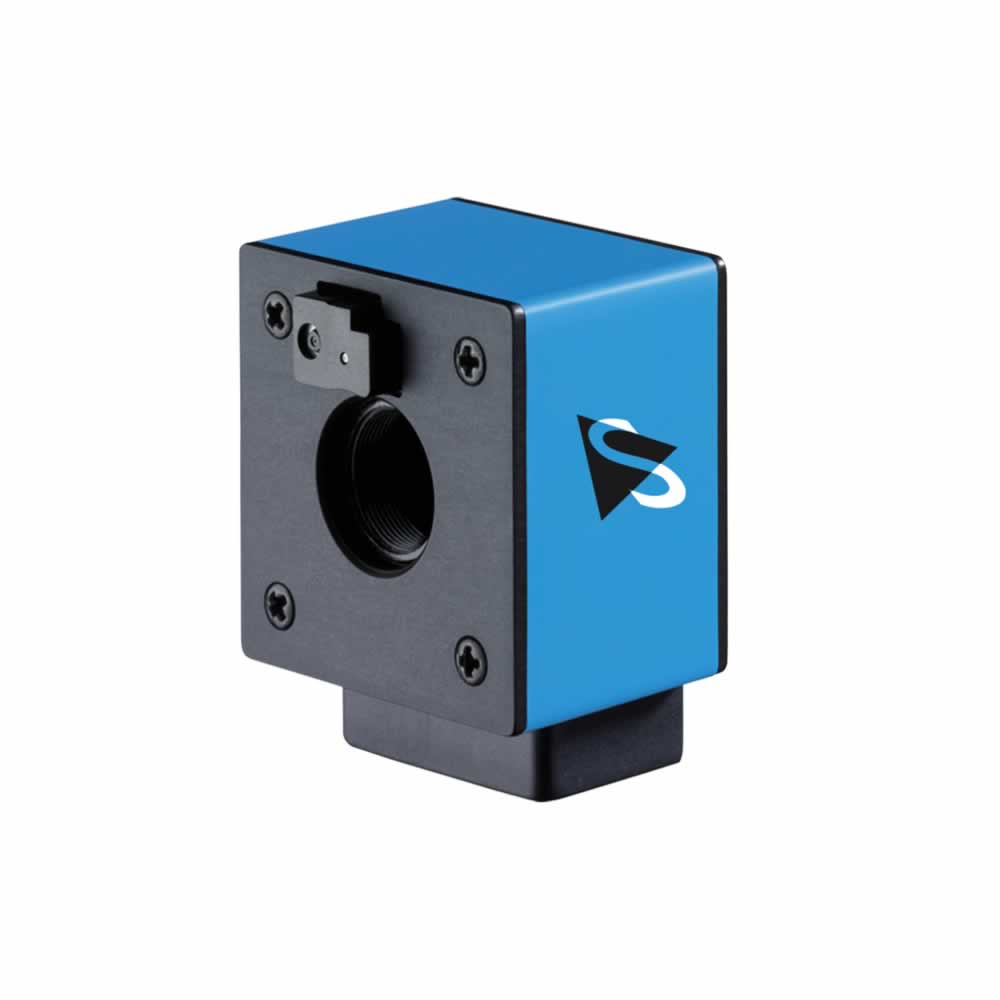

Imaging Source DFK AFUX236-M12 USB 3.0 Color Autofocus Camera**

$551.00

• 1/2.8 inch Sony CMOS sensor (IMX236LQJ)
• 1,920x1,200 (2.3 MP), up to 54 fps
• Rolling shutter
• Windows and Linux software included

SKU: DFK AFUX236-M12

$551.00

Description

Specifications

Downloads

DFK AFUX236-M12

USB 3.0 color autofocus camera

The Imaging Source DFK AFUX236-M12 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.8 inch Sony CMOS IMX178LQJ sensor. With up to 54 images per second, the DFK AFUX236-M12 is a low cost, yet highly versatile imaging solution. The camera has an integrated focus unit for M12 board lenses, which can be adjusted manually, using the shipped SDK or end-user software. In addition, the driver is able to adjust the focus unit automatically.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK AFUX236-M12 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions.

Dynamic Range

8/12 bit

Video Format

1920 × 1200 (2.3 MP) Y16 @ 27 fps, 1920 × 1200 (2.3 MP) Y800 @ 54 fps

IR-Cut Filter

Yes

Sensor Type

CMOS

Sensor Specification

Sony IMX236LLJ

Shutter

Rolling

Format

1/2.8 inch

Pixel Size

H: 2.8 µm x V: 2.8 µm

2.3 MP

Resolution

1920 x 1200

FPS

54 FPS

Mono/Color

Color

Lens Mount

M12x0.5 (motorized mount)

Interface

PoE, USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 30 mm

Mass

70g

Adjustable Shutter

15 µs to 30 s

Gain

0 dB to 36 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
