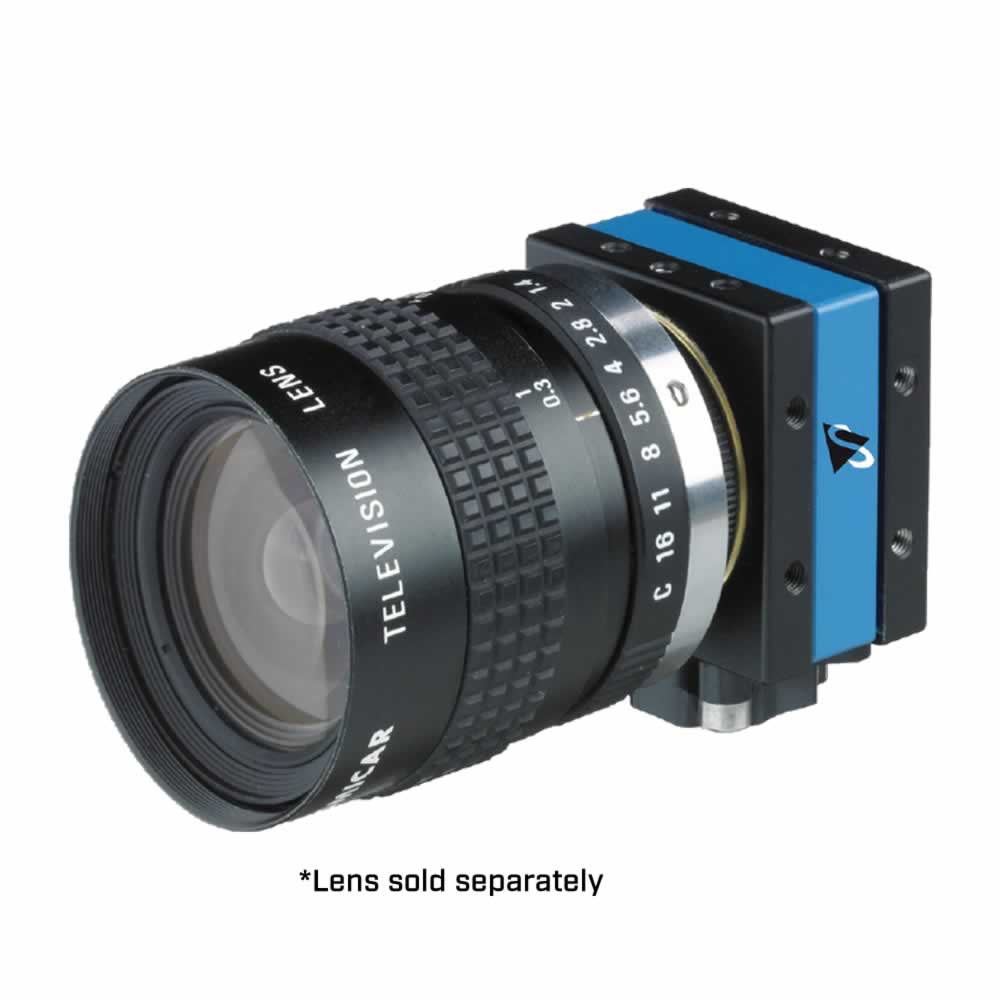

Imaging Source DFK AFU420-CCS USB 3.0 Color Industrial Camera

$1,380.00

• USB 3.0 interface
• 2/3 inch CMOS sensor
• 7,728x5,368 (41.5 MP)
• Up to 110 images per second
• Rolling shutter
• Only 36x36x26 mm
• Compatible to C and CS mount lenses

SKU: DFK AFU420-CCS

$1,380.00

Description

Specifications

Downloads

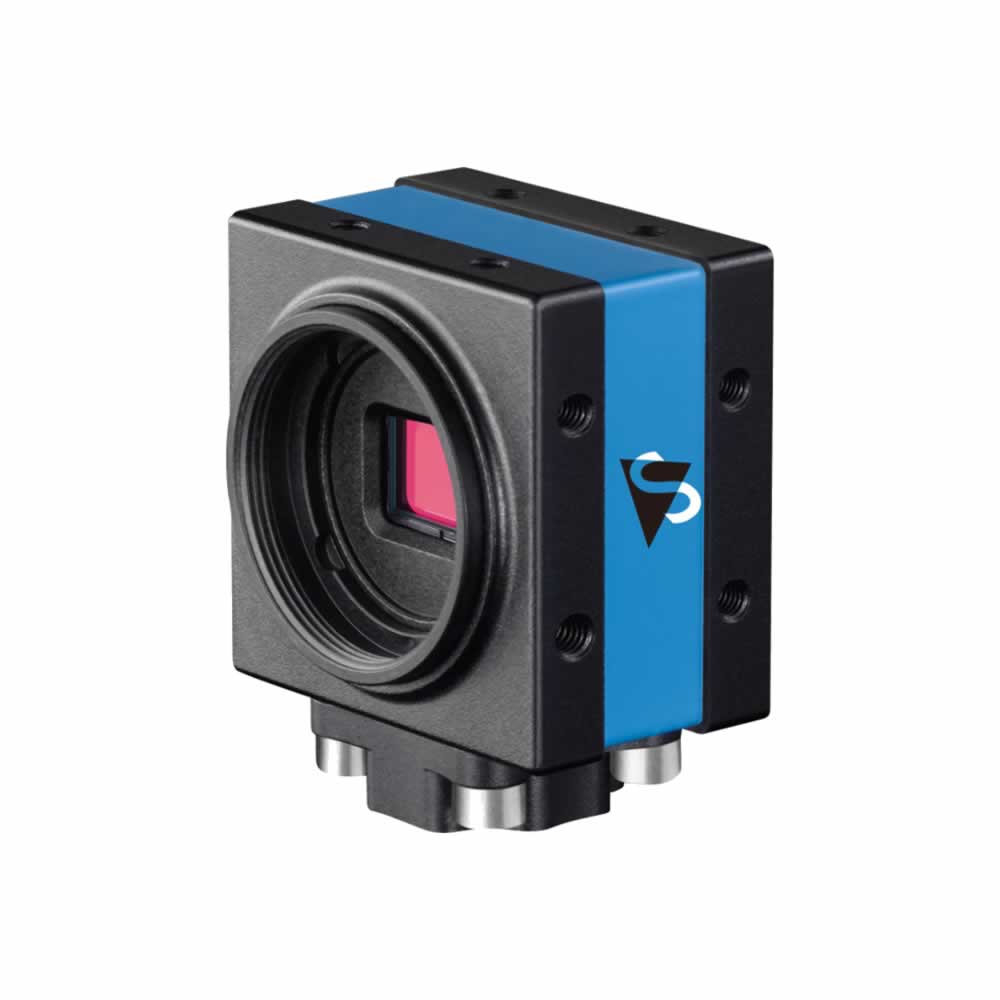

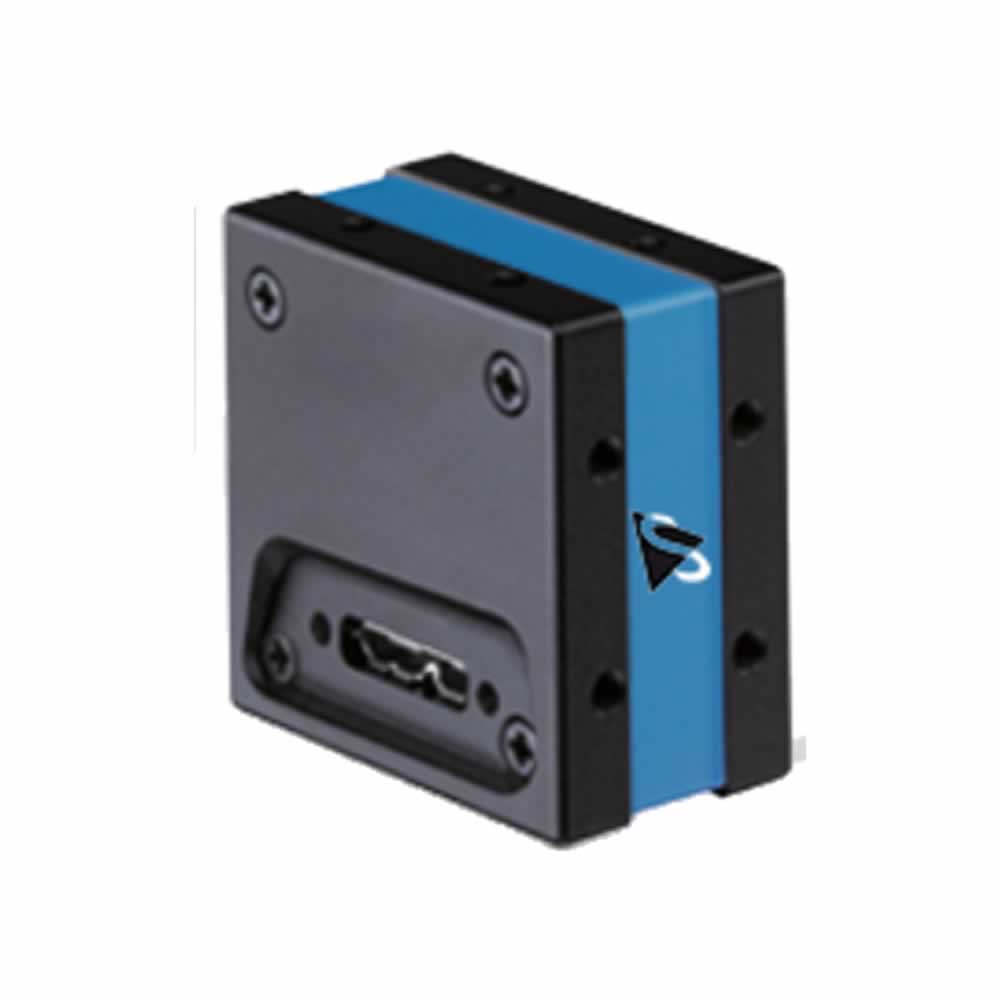

Imaging Source DFK AFU420-CCS

USB 3.0 color industrial camera

The Imaging Source DFK AFU420-CCS color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. With up to 110 images per second, the DFK AFU420-CCS is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK AFU420-CCS to be integrated in to common machine vision software libraries, such as LabView and OpenCV.

Dynamic Range

8/12 bit

Video Format

1920 × 1080 (2.1 MP) RGB32 @ 110 fps, 1920 × 1080 (2.1 MP) RGB64 @ 74 fps, 5424 × 5360 (29.1 MP) RGB32 @ 10 fps, 5424 × 5360 (29.1 MP) RGB64 @ 6.7 fps, 7716 × 5360 (41.4 MP) RGB32 @ 7 fps

IR-Cut Filter

Yes

Sensor Type

CMOS

Shutter

Rolling

Format

2/3 inch

Pixel Size

H: 1.12 µm x V: 1.12 µm

41.5 MP

Resolution

7728 x 5368

FPS

110 FPS

Mono/Color

Color

Iris

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 26 mm

Mass

70g

Adjustable Shutter

1/1000000 s to 1/2 s

Gain

0 dB to 12 dB

White Balance

-2dB to 6dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
