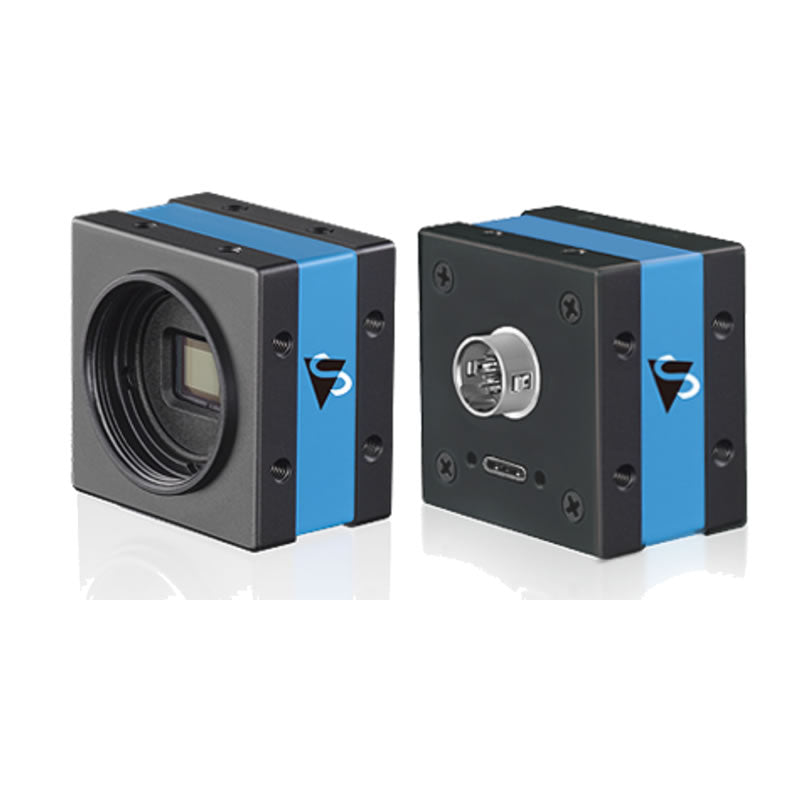

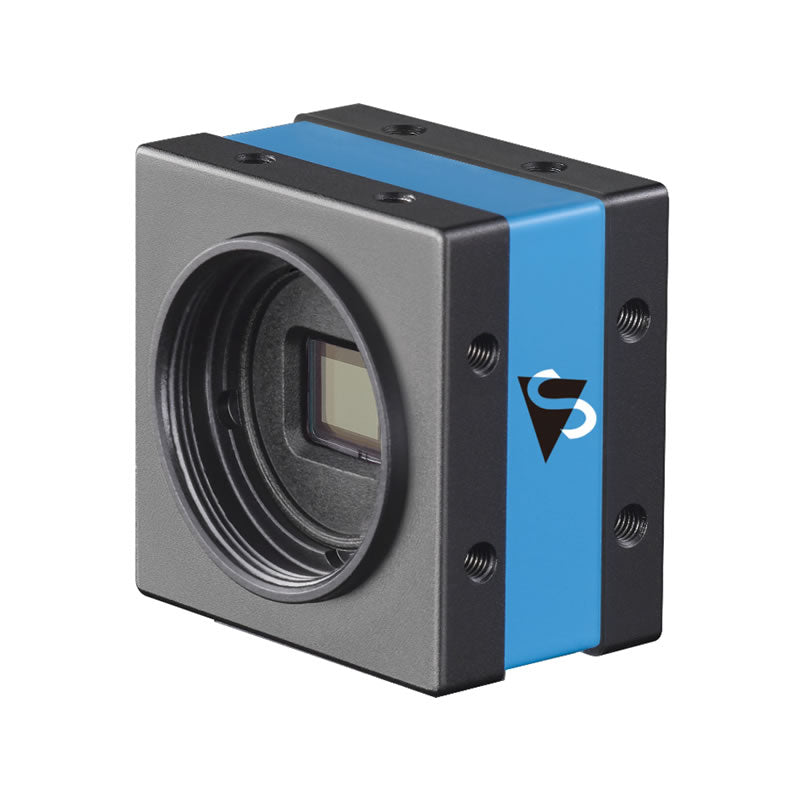

Imaging Source DFK 37BUX178 USB 3.1 Color Industrial Camera

$516.00

•1/1.8 inch Sony CMOS STARVIS sensor (IMX178LQJ)
•3,072x2,048 (6.3 MP), up to 60 fps
•Rolling shutter
•Trigger and I/O inputs

SKU: DFK 37BUX178

$516.00

Description

Specifications

Downloads

Imaging Source DFK 37BUX178

USB 3.1 Color Industrial Camera

The Imaging Source DFK 37BUX178 USB 3.1 Color Industrial Cameras are equipped with highly-sensitive, low-noise Sony Pregius global-shutter sensors which offer exceptional distortion-free image quality and color fidelity. The 9 and 12 MP cameras support the USB3 Vision standard which ensures stability and compatibility for easy integration and flexible configuration. Available in color and monochrome, the cameras feature a compact and robust industrial design and support applications such as intelligent traffic systems (ITS), inspection tasks and automation as well as microscopy. Additionally, their sensor sizes (2/3" and 1/1.8") mean they are easily combined with a variety of low-priced standard industrial lenses available.

Dynamic Range

12 bit

Video Format

3072 × 2048 (6.3 MP)

IR-Cut Filter

Yes

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX178

Shutter

Rolling

Format

1/1.8 inch

Pixel Size

H: 2.4 µm x V: 2.4 µm

6.3 MP

Resolution

3072 x 2048

FPS

60 FPS

Mono/Color

Color

Lens Mount

C/CS

Interface

PoE, USB 3.1

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 320 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

20 µs to 60 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
