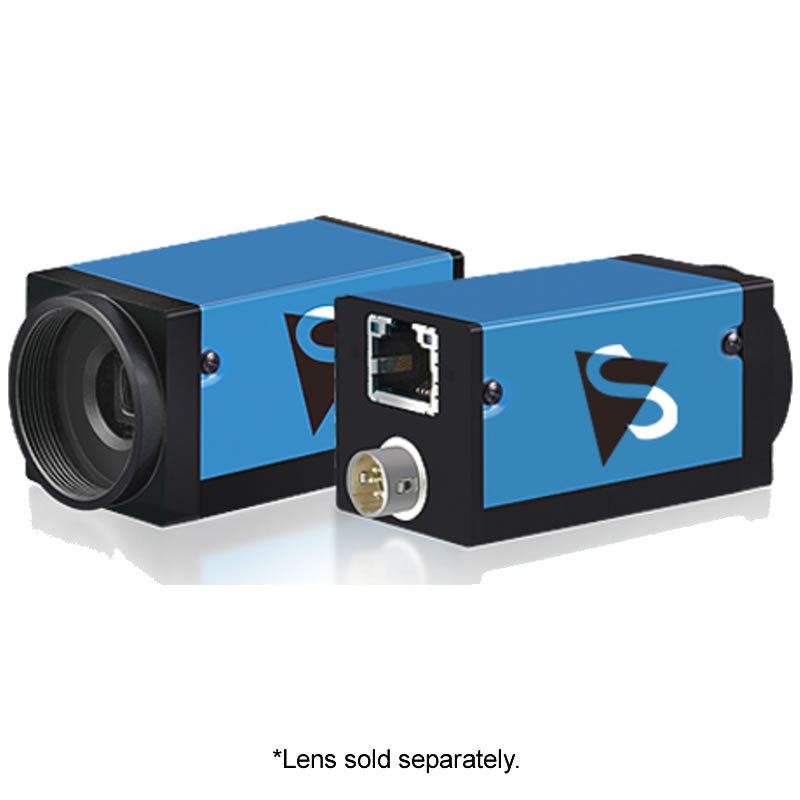

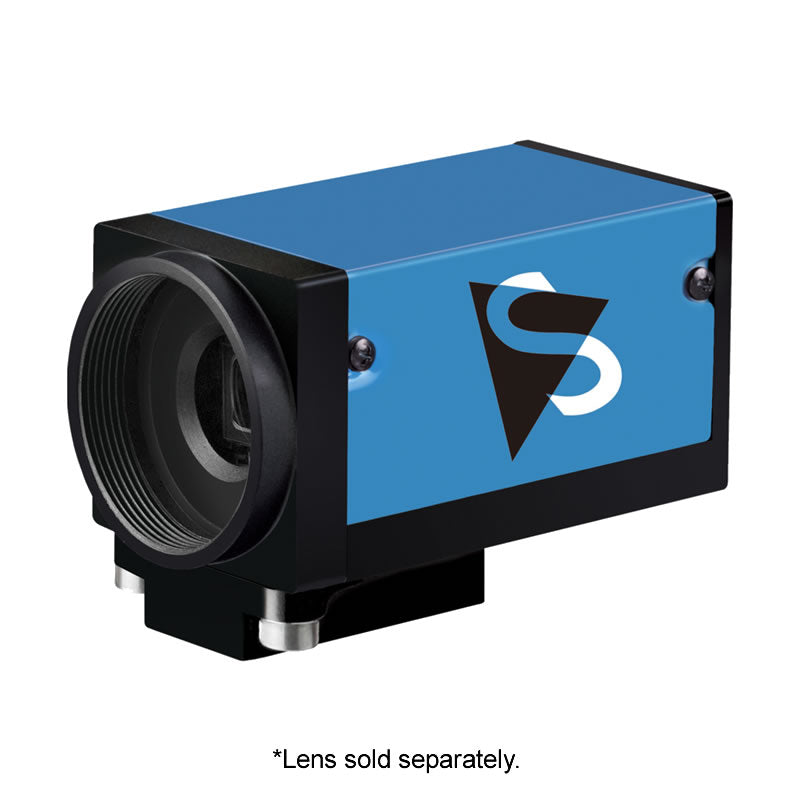

Imaging Source DFK 33GX273 GigE Color Industrial Camera

$459.00

•1/2.9 inch Sony CMOS Pregius sensor (IMX273LQR)
•1,440x1,080 (1.6 MP), up to 75 fps
•Global shutter
•Trigger and I/O inputs
•Casing compatible to most analog cameras
•Manufactured by The Imaging Source
•Windows and Linux software included

SKU: DFK 33GX273

$459.00

Description

Specifications

Downloads

Imaging Source DFK 33GX273

GigE color industrial camera

With an assortment of global and rolling shutter CMOS sensors to choose from as well as on-board image pre-processing and frame buffering, the DFK 33GX273 GigE camera offers a broad portfolio of ethernet cameras that are ideal for any number of machine vision applications.

A Hirose port allows for a variety of input, output, strobe and trigger options, and the Gigabit Ethernet interface enables easy setup and integration into existing and new applications.

Dynamic Range

12 bit

Video Format

1440 x 1080 (1.6 MP)

IR-Cut Filter

Yes

CMOS Pregius

Sensor Type

Sensor Specification

Sony IMX273

Shutter

Global

Format

1/2.9 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

1.6 MP

Resolution

1440 x 1080

FPS

75 FPS

Mono/Color

Color

Iris

Lens Mount

C/CS

Interface

PoE, GigE

Supply Voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC

Current Consumption

Approx. 400 mA @ 12 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 57 mm

Mass

65g

Adjustable Shutter

1 µs to 30 s

Gain

0 dB to 48 dB

White Balance

-2dB to 6dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
