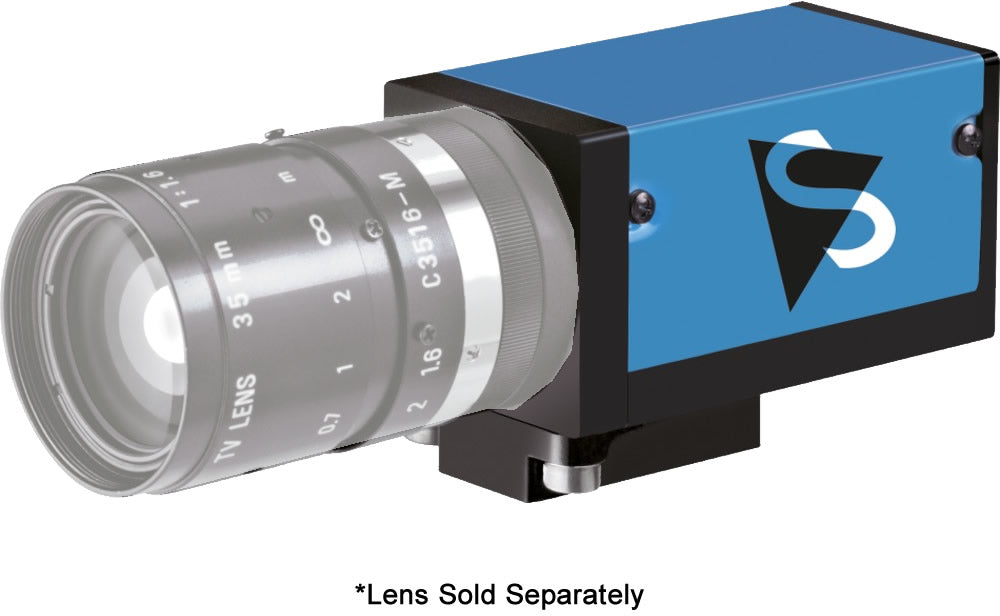

Imaging Source DFK 33GX226 GigE Color Industrial Camera

$574.00

• 1/1.7 inch Sony CMOS STARVIS sensor (IMX226CQJ)
• 4,000x3,000 (12 MP), up to 9 fps
• Rolling shutter
• Trigger and I/O inputs
• Casing compatible to most analog cameras

SKU: DFK 33GX226

$574.00

Description

Specifications

Downloads

Imaging Source DFK 33GX226

GigE Color Industrial Camera

The Imaging Source DFK 33GX226 color camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/1.7 inch Sony CMOS STARVIS IMX226CQJ sensor. With up to 9 images per second, the DFK 33GX226 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK 33GX226 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

12 bit

Video Format

4000 × 3000 (12 MP)

IR-Cut Filter

Yes

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX226

Shutter

Rolling

Format

1/1.7 inch

Pixel Size

H: 1.85 µm x V: 1.85 µm

12 MP

Resolution

4000 x 3000

FPS

9 FPS

Mono/Color

Color

Iris

Lens Mount

C/CS

Interface

PoE, GigE

Supply Voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC

Current Consumption

Approx. 400 mA @ 12 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 57 mm

Mass

65g

Adjustable Shutter

50 µs to 30 s

Gain

0 dB to 27.04 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
