Imaging Source DFK 33GX178e GigE Color Industrial Camera

$516.00

•1/1.8 inch Sony CMOS STARVIS sensor (IMX178LL)
•3,072x2,048 (6.3 MP), up to 19 fps
•Rolling shutter
•Trigger and I/O inputs
•Video Formats:
•8-Bit Bayer (RG)
•12-Bit Bayer Packed (RG)
•16-Bit Bayer (RG)
•YUV 4:2:2
•YUV 4:1:1
•RGB24

SKU: DFK 33GX178e

$516.00

Description

Specifications

Downloads

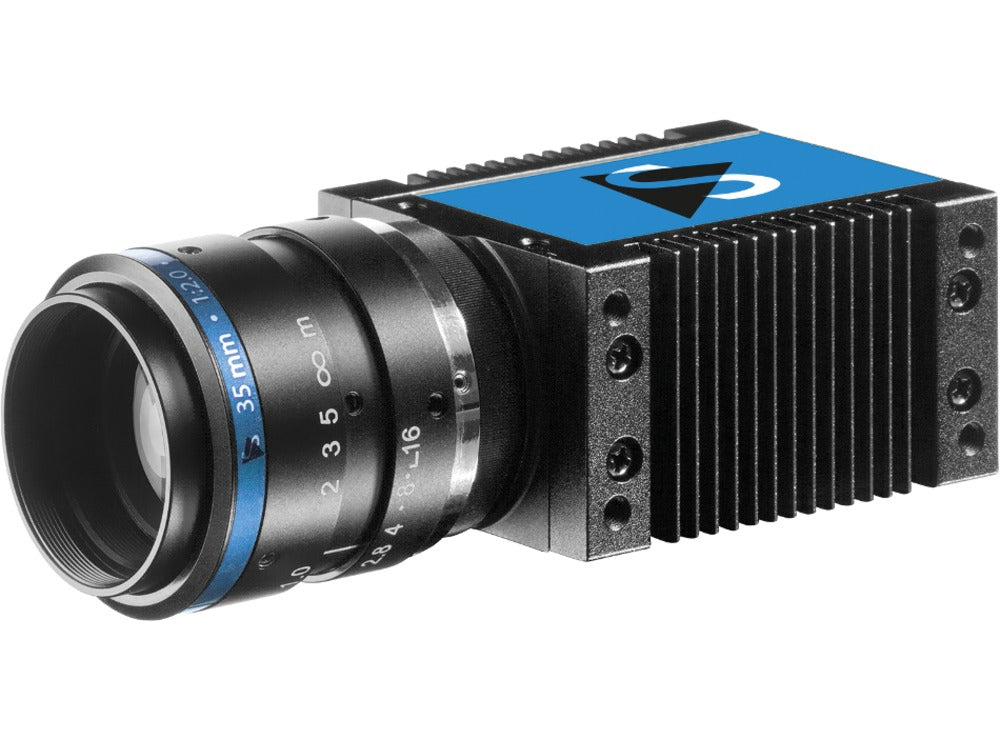

Imaging Source DFK 33GX178e

GigE Color Industrial Camera

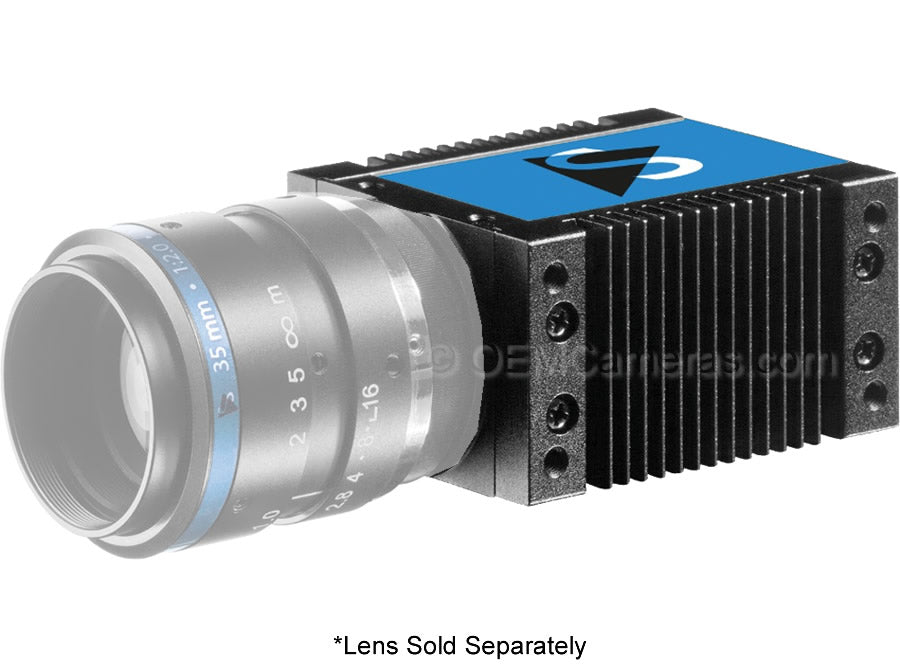

The Imaging Source DFK 33GX178e color camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/1.8 inch Sony CMOS STARVIS IMX178LL sensor. With up to 19 images per second, the DFK 33GX178e is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK 33GX178e to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

12 bit

Video Format

3072×2048 (6.3 MP)

IR-Cut Filter

Yes

Sensor Type

CMOS STARVIS

Sensor Specification

Sony IMX178

Shutter

Rolling

Format

1/1.8 inch

Pixel Size

H: 2.4 µm x V: 2.4 µm

6.3 MP

Resolution

3072 x 2048

FPS

19 FPS

Mono/Color

Color

Lens Mount

C (CS optional)

Interface

Gigabit Ethernet (RJ45), PoE

Supply Voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC

Current Consumption

Approx. 400 mA @ 12 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

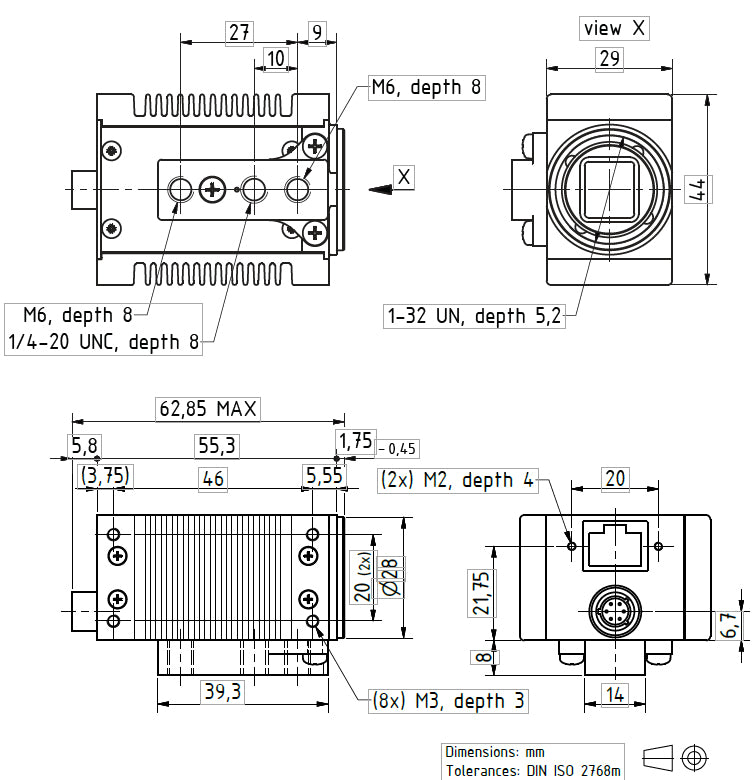

Dimensions (H x W x L)

H: 29 mm x W: 44 mm x L: 57 mm

Mass

120g

Adjustable Shutter

20 µs to 60 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
