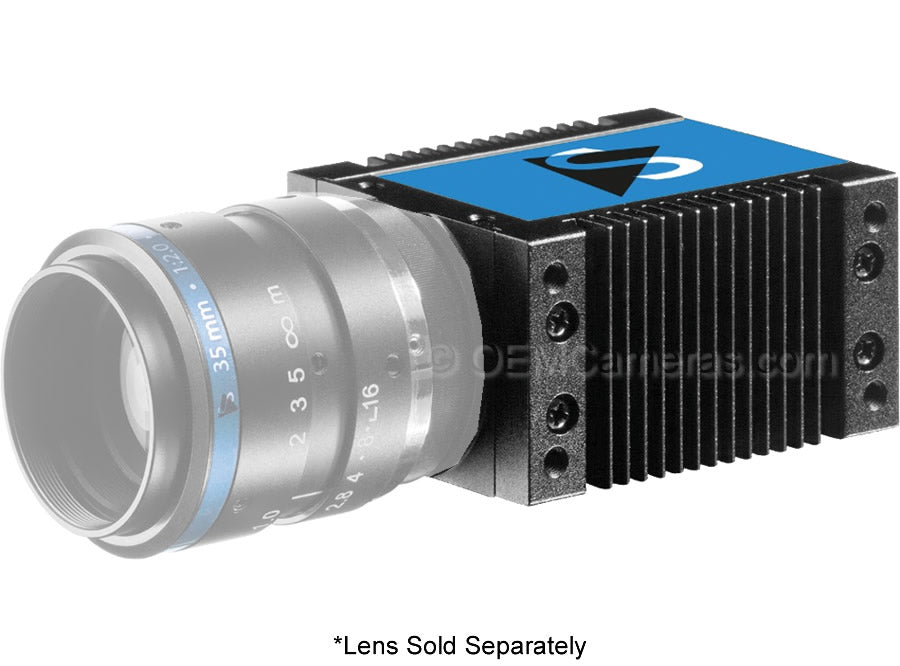

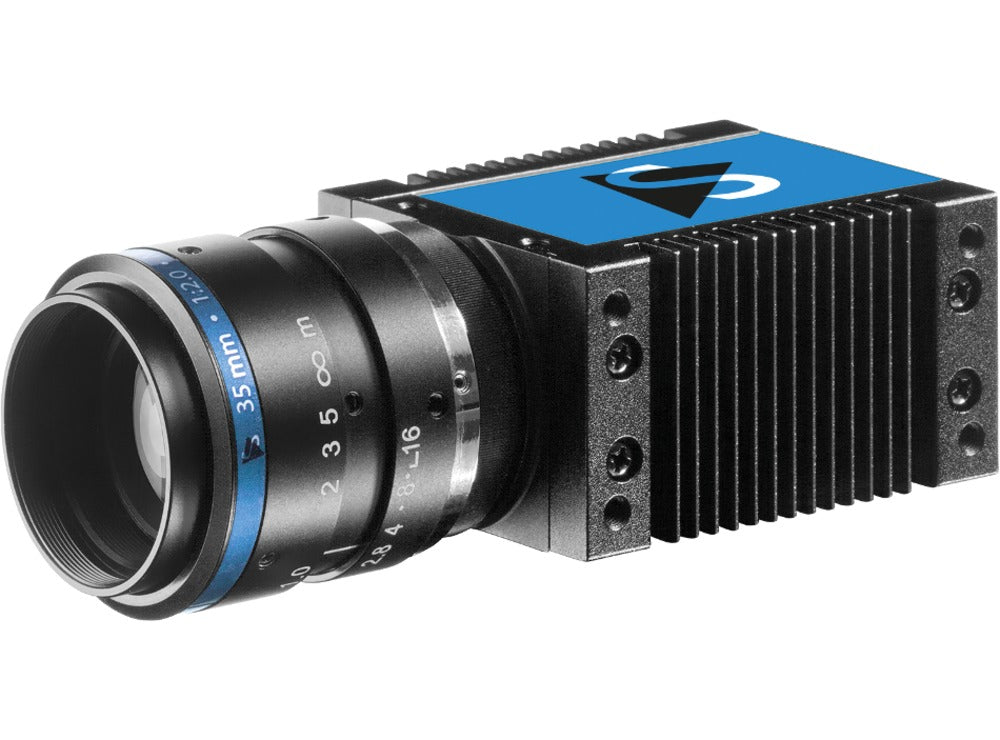

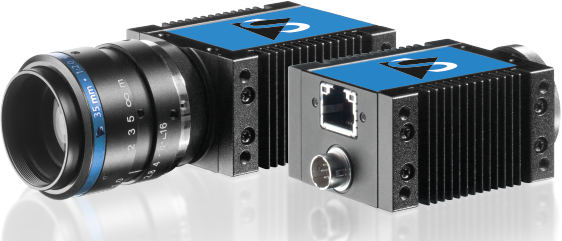

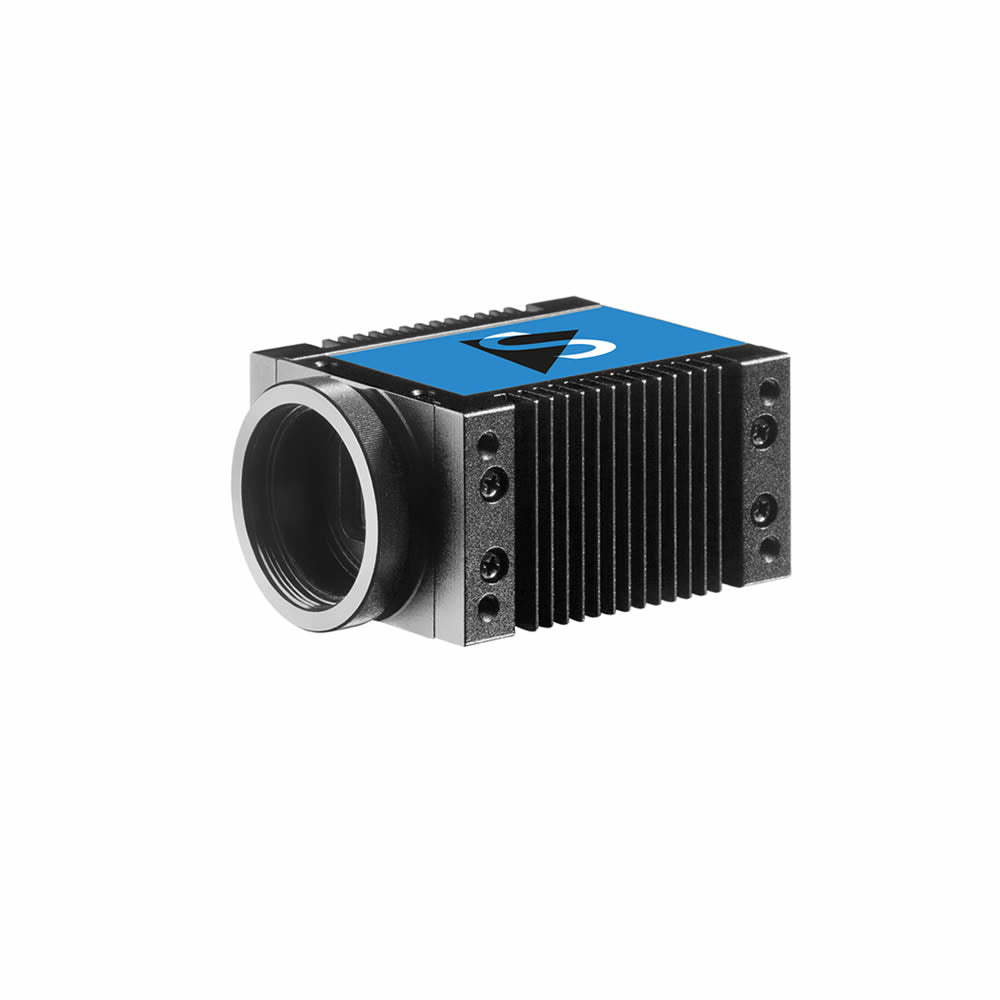

Imaging Source DFK 33GP1300e GigE Color Industrial Camera

$574.00

•GigE interface with PoE
•1/2 inch ON Semiconductor CMOS Python sensor (PYTHON 1300)
•1,280x1,024 (1.3 MP)
•Up to 30 images per second
•Global shutter
•Trigger and I/O inputs
•Only 29x44x57 mm
•Compatible to C and CS mount lenses
•Manufactured by The Imaging Source
•Ships with Windows and Linux software

SKU: DFK 33GP1300e

$574.00

Description

Specifications

Downloads

Imaging Source DFK 33GP1300e

GigE Color Industrial Camera

The Imaging Source DFK 33GP1300e color camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2 inch ON Semiconductor CMOS Python PYTHON 1300 sensor. With up to 90 images per second, the DFK 33GP1300e is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK 33GP1300e to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

10 bit

Video Format

1280 x 1024 (1.3 MP)

IR-Cut Filter

Yes

Sensor Type

CMOS Python

Sensor Specification

onsemi PYTHON 1300

Shutter

Global

Format

1/2 inch

Pixel Size

H: 4.8 µm x V: 4.8 µm

1.3 MP

Resolution

1280 x 1024

FPS

90 FPS

Mono/Color

Color

Lens Mount

C/CS

Interface

Gigabit Ethernet (RJ45), PoE

Supply Voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC

Current Consumption

Approx. 400 mA @ 12 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

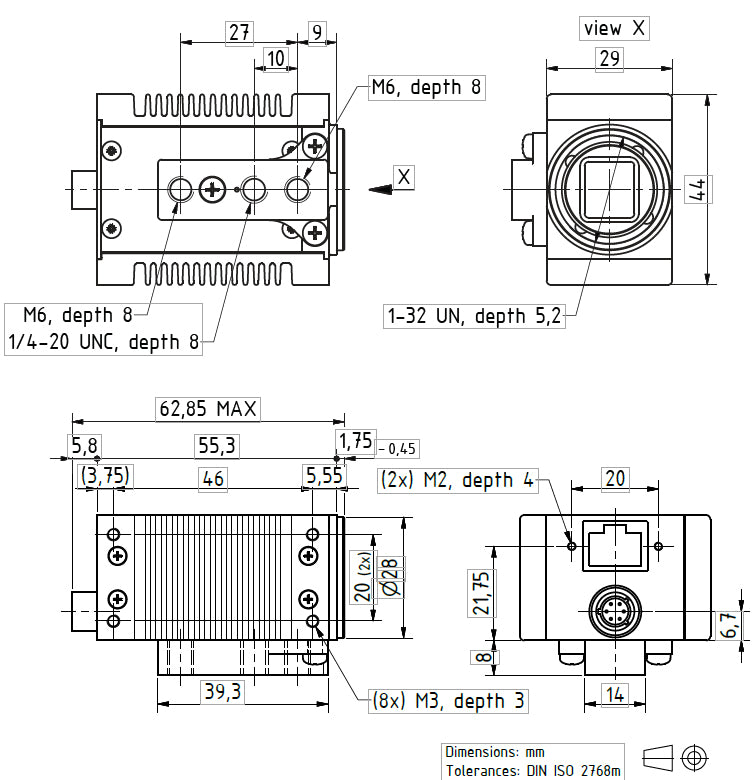

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 57 mm

Mass

65g

Adjustable Shutter

50 µs to 10 s

Gain

0 dB to 9.21 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
