Imaging Source DFK 27BUP006 USB 3.0 Color Industrial Camera

$275.00

•1/2.5 inch Aptina CMOS sensor (MT9P006)
•2,592x1,944 (5 MP), up to 15 fps
•Rolling shutter
•Trigger and I/O inputs
•Windows and Linux software included

SKU: DFK 27BUP006

$275.00

Description

Specifications

Downloads

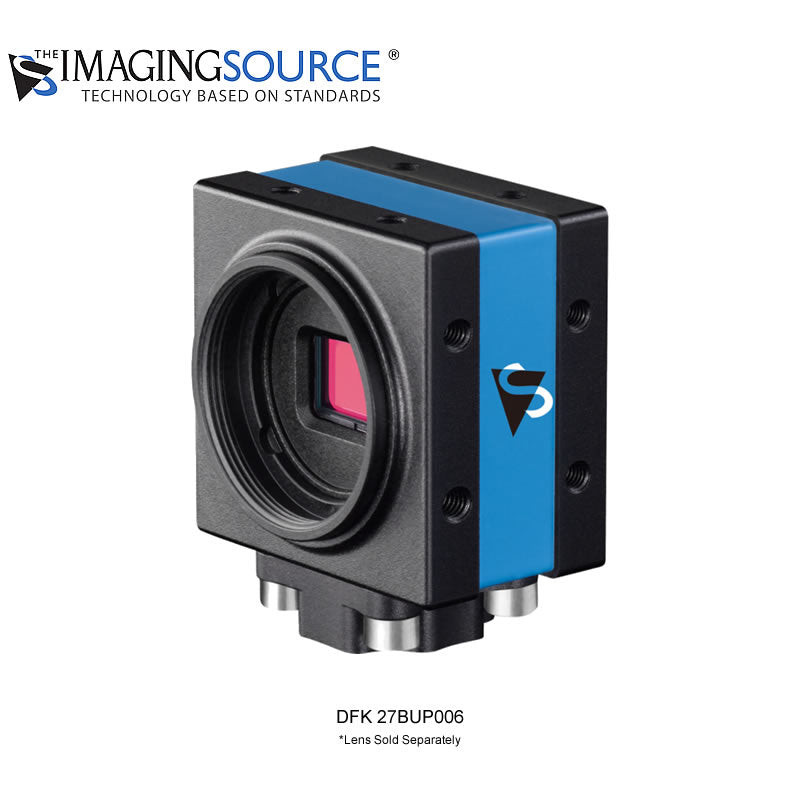

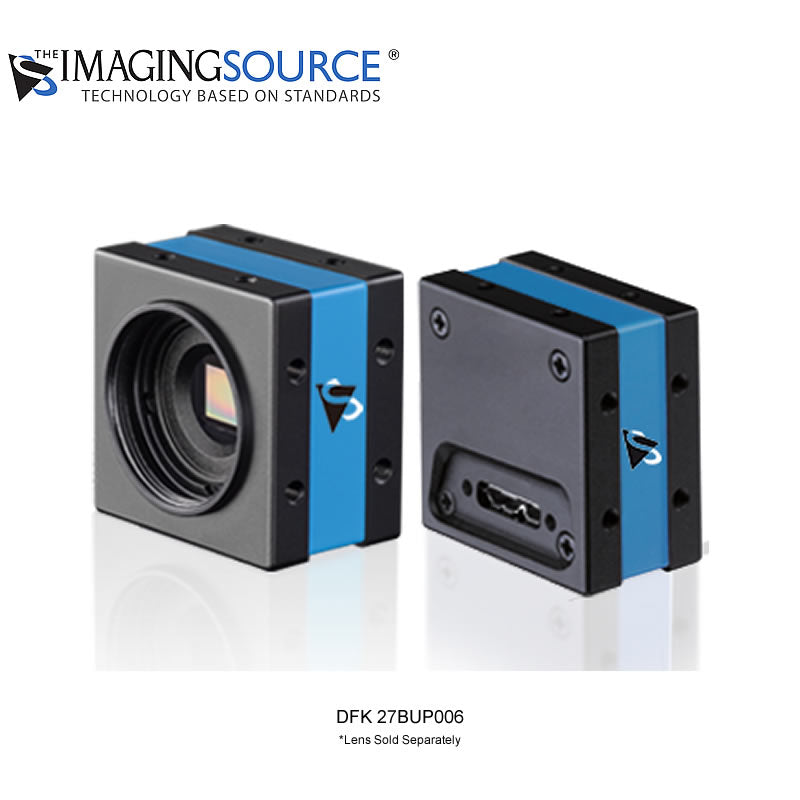

Imaging Source DFK 27BUP006

USB 3.0 Color Industrial Camera

The Imaging Source DFK 27BUP006 USB 3.0 color industrial camera is the perfect solution for many industrial automation, quality assurance, security, surveillance, and medical applications.

Utilizing a color CMOS sensor up to 2592x1944 (5MP), this camera features a variety of input, output, strobe, and trigger options.

_{* Please note, a lens is required and sold separately}

Dynamic Range

8/12 bit

Video Format

2592 × 1944 (5 MP) RGB32 @ 15 fps, 2592 × 1944 (5 MP) Y16 @ 7.5 fps, 2592 × 1944 (5 MP) Y800 @ 15 fps

IR-Cut Filter

Yes

Sensor Type

CMOS

Sensor Specification

onsemi MT9P006

Shutter

Rolling

Format

1/2.5 inch

Pixel Size

H: 2.2 µm x V: 2.2 µm

5 MP

Resolution

2592 x 1944

FPS

15 FPS

Mono/Color

Color

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 25 mm

Mass

70g

Adjustable Shutter

1/20000 s to 1/4 s

Gain

0 dB to 12 dB

White Balance

-2 dB to 6 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
