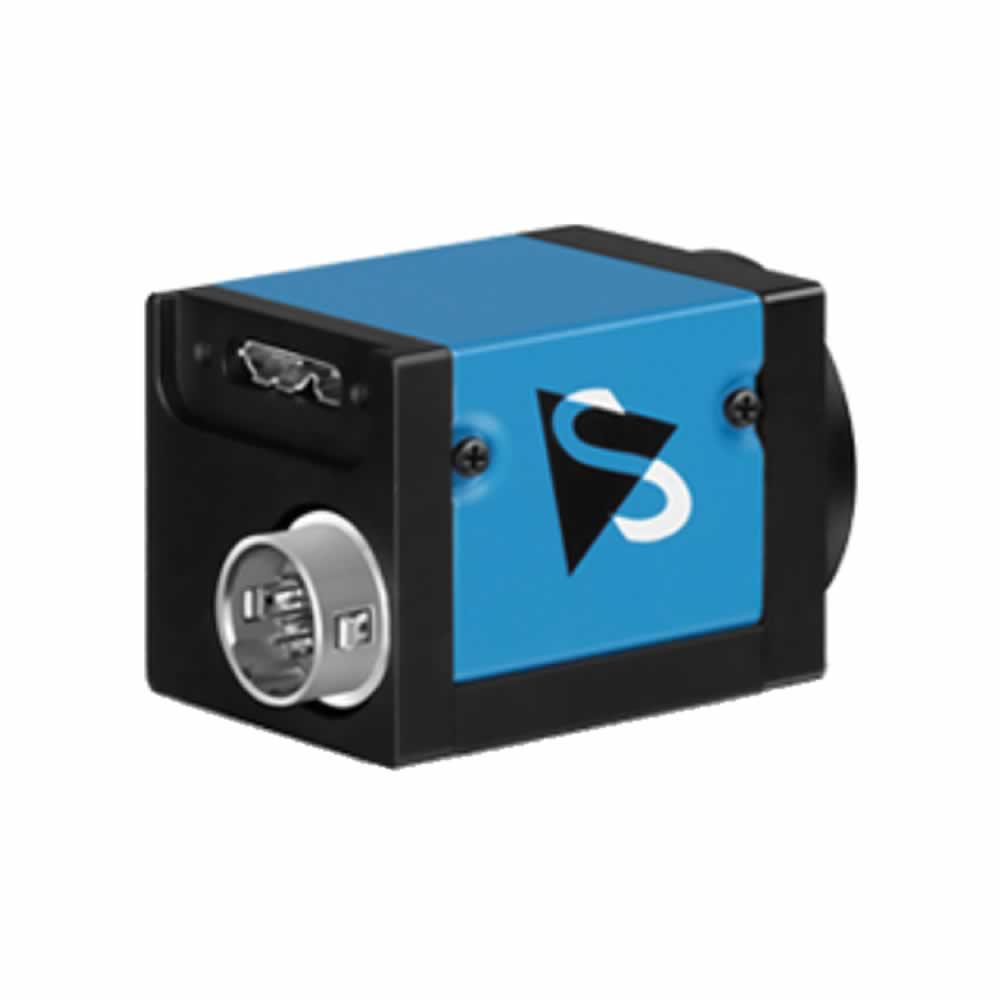

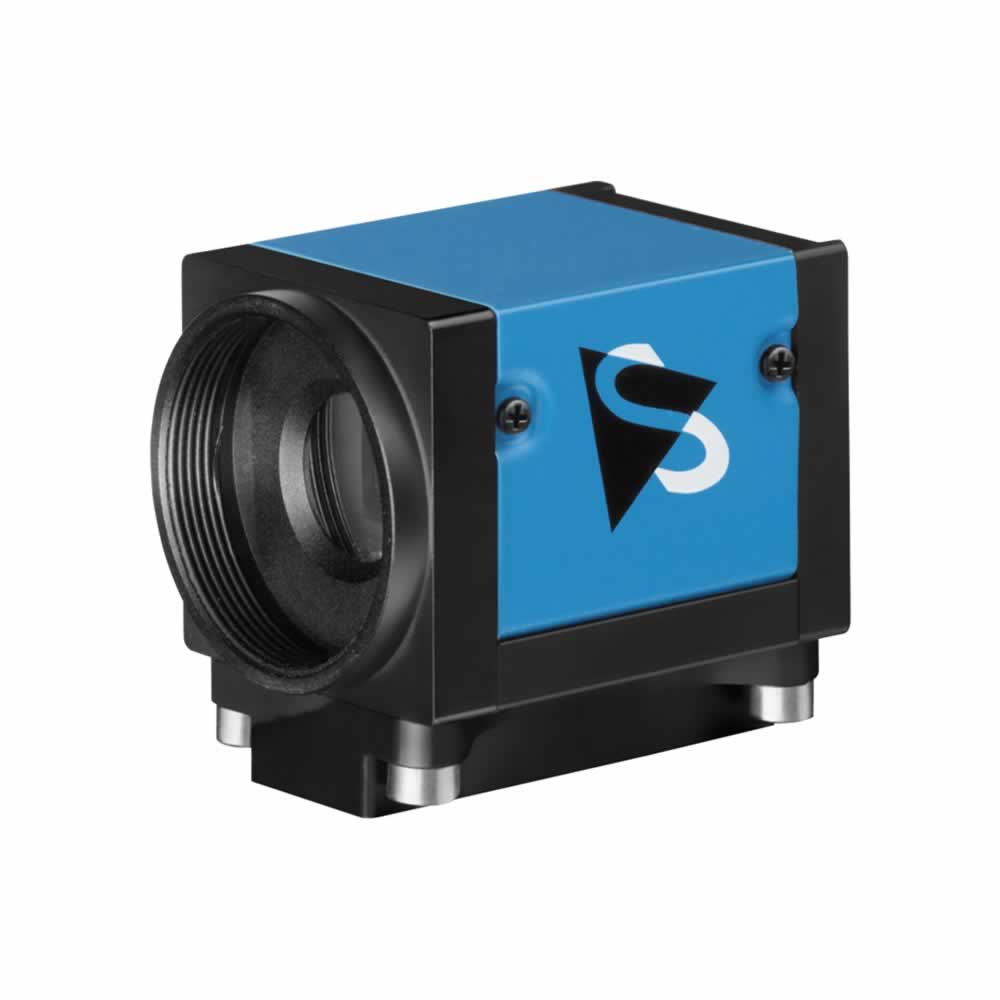

Imaging Source DFK 23UX174 USB 3.0 Color Industrial Camera

$840.00

• 1/1.2 inch Sony CMOS Pregius sensor (IMX174LQJ)
• 1,920x1,200 (2.3 MP), up to 54 fps
• Global shutter
• Trigger and I/O inputs
• Windows and Linux software included

SKU: DFK 23UX174

$840.00

Description

Specifications

Downloads

Imaging Source DFK 23UX174

USB 3.0 color industrial camera

The Imaging Source DFK 23UX174 monochrome camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The monochrome camera ships with the very sensitive / " Sony Exmor IMX174LL sensor. With up to 54 images per second, the DFK 23UX174 is a low cost, yet highly versatile imaging solution. The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK23UX174 to be integrated in to common machine vision software libraries, such as LabView and OpenCV.

Dynamic Range

8/12 bit

Video Format

1920 × 1200 (2.3 MP) RGB32 @ 54 fps, 1920 × 1200 (2.3 MP) Y16 @ 25 fps, 1920 × 1200 (2.3 MP) Y800 @ 54 fps

IR-Cut Filter

Yes

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX174LQJ

Shutter

Global

Format

1/1.2 inch

Pixel Size

H: 5.86 µm x V: 5.86 µm

2.3 MP

Resolution

1920 x 1200

FPS

54 FPS

Mono/Color

Color

Iris

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

1/100000 s to 30 s

Gain

0 dB to 36 dB

White Balance

'-2dB to 6dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
