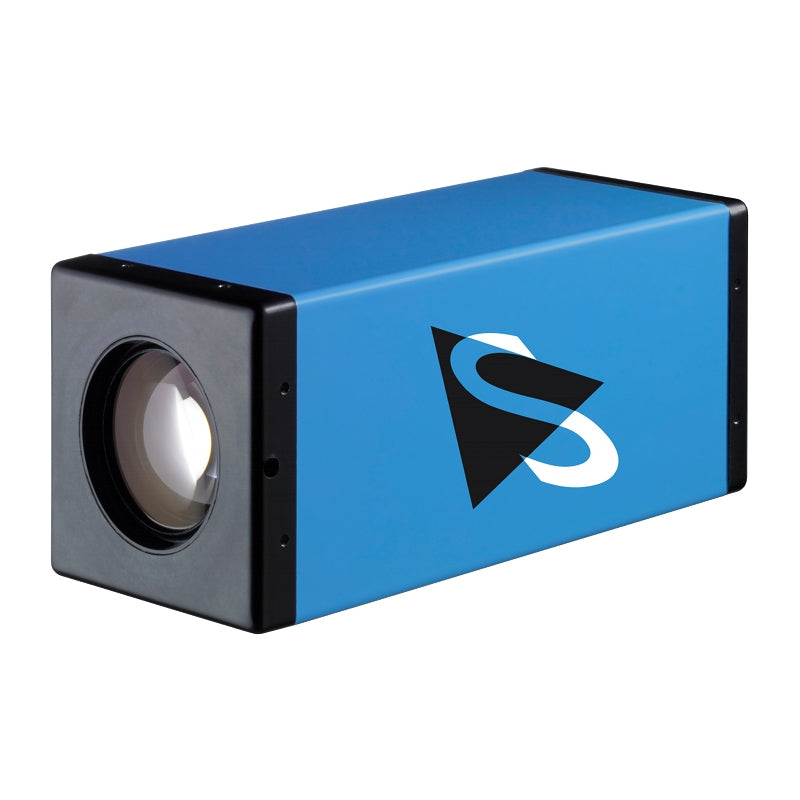

Imaging Source DFK Z30GP031 GigE Color zoom Camera

$1,264.00

• 1/2.5 inch Aptina CMOS sensor (MT9P031)
• Motor zoom: 4.3 mm to 129 mm
• 2,592x1,944 (5 MP), up to 15 fps
• Rolling shutter
• Trigger and I/O inputs

SKU: DFK Z30GP031

$1,264.00

Description

Specifications

Downloads

Imaging Source DFK Z30GP031

GigE color zoom camera

The Imaging Source DFK Z30GP031 color camera has a GigE interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.5 inch Aptina CMOS MT9P031 sensor. With up to 15 images per second, the DFK Z30GP031 is a low cost, yet highly versatile imaging solution. The camera integrates an autofocus lens (Automatic/manual)

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK Z30GP031 to be integrated in to common machine vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software (Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Video Format

2592 × 1944 (5 MP) Y16 @ 15 fps, 2592 × 1944 (5 MP) Y800 @ 15 fps, 2592×1944 (5 MP) RGB32 @ 15 fps

Sensor Type

CMOS

Sensor Specification

onsemi MT9P031

Shutter

Rolling

Format

1/2.5 inch

Pixel Size

H: 2.2 µm x V: 2.2 µm

5 MP

Resolution

2592 x 1944

FPS

15 FPS

Focal Length

4.8 mm (wide) to 57.6 mm (tele)

Mono/Color

Color

F-Stop

2.2 (wide) to 2.3 (tele)

MOD

3 cm (wide) to 70 cm (tele)

Focus

automatic and manual

Iris

automatic and manual

Lens Mount

Integrated

Interface

PoE, GigE

Supply Voltage

11 VDC to 13 VDC or POE: 48 VDC to 56 VDC

Current Consumption

Approx. 600 mA @ 12 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 60 mm x W: 60 mm x L: 116 mm

Mass

330 g

Adjustable Shutter

1/20000s to 30s

Gain

0 dB to 12 dB

White Balance

-2dB to 6dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)["Humidity (Storage)"]

20 % to 80 % (non-condensing)["\t 20 % to 95 % (non-condensing)"]
