Imaging Source DFK AFU420-L62 USB 3.0 Color Autofocus Camera

$1,484.00

•USB 3.0 interface
•2/3 inch CMOS sensor
•7,728x5,368 (41.5 MP)
•Up to 110 images per second
•Rolling shutter
•Only 36x36x26 mm

SKU: DFK AFU420-L62

$1,484.00

Description

Specifications

Downloads

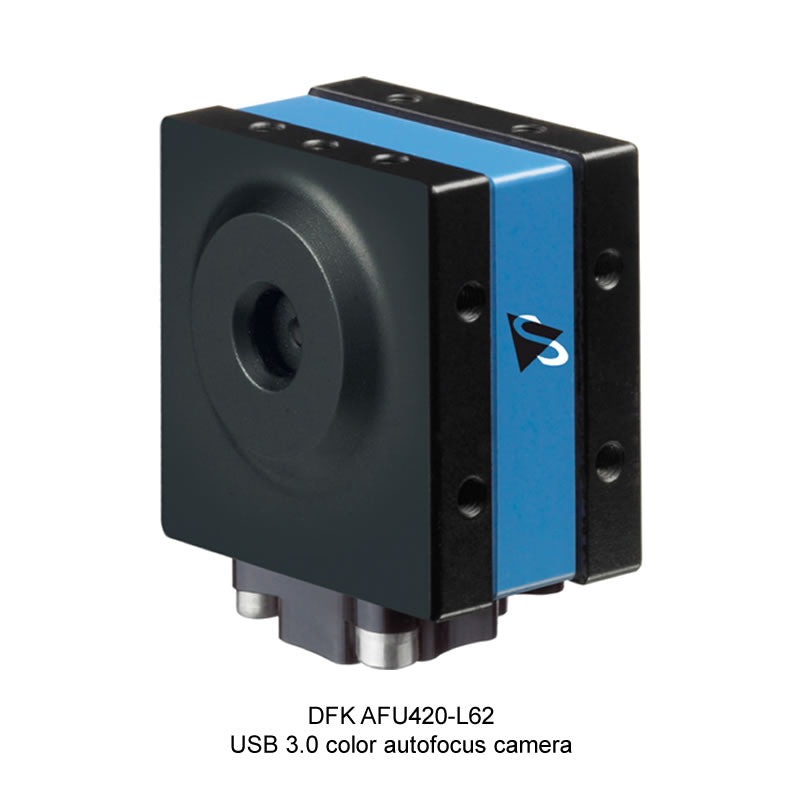

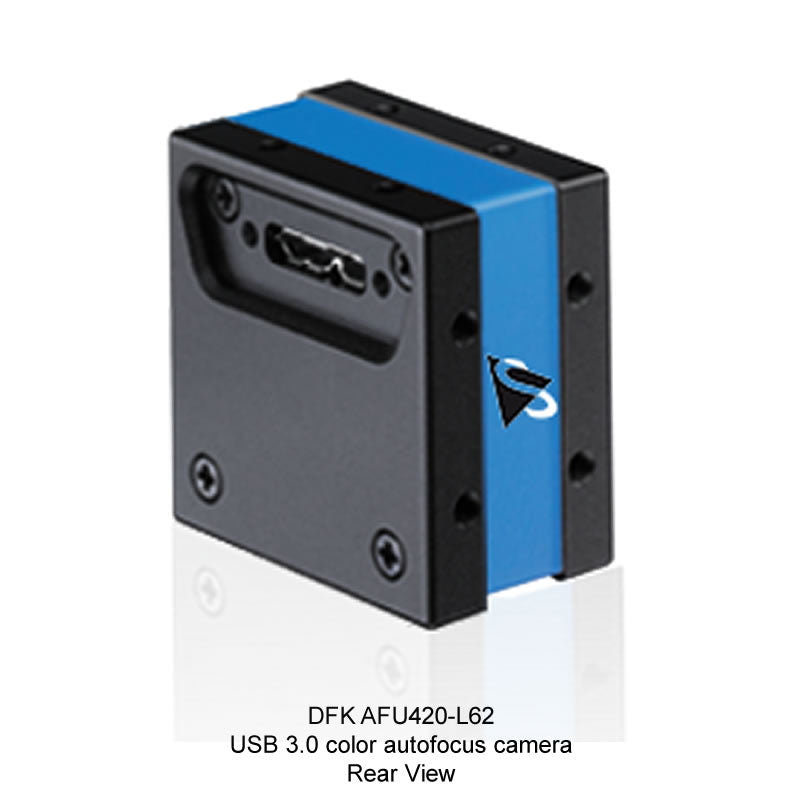

Imaging Source DFK AFU420-L62

USB 3.0 Color Autofocus Camera

The Imaging Source DFK AFU420-L62 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. With up to 110 images per second, the DFK AFU420-L62 is a low cost, yet highly versatile imaging solution. The camera integrates an autofocus lens (One-touch)

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely downloaded from our web site. Extensions for Microsoft Windows enable the DFK AFU420-L62 to be integrated in to common machine vision software libraries, such as LabView and OpenCV.

Dynamic Range

8/12 bit

Video Format

1920 × 1080 (2.1 MP) RGB32 @ 110 fps, 1920 × 1080 (2.1 MP) RGB64 @ 74 fps, 5424 × 5360 (29.1 MP) RGB32 @ 10 fps, 5424 × 5360 (29.1 MP) RGB64 @ 6.7 fps, 7716 × 5360 (41.4 MP) RGB32 @ 7 fps

IR-Cut Filter

Yes

Shutter

Rolling

Format

2/3 inch

Pixel Size

H: 1.12 µm x V: 1.12 µm

41.5 MP

Resolution

7728 x 5368

FPS

7 FPS

Focal Length

6.2mm

Mono/Color

Color

F-Stop

2.2

MOD

15 cm

Focus

One touch

Iris

Lens Mount

Integrated

Interface

USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

Trigger

I/O

Dimensions (H x W x L)

H: 36 mm x W: 36 mm x L: 26 mm

Mass

70g

Adjustable Shutter

1/1000000 s to 1/2 s

Gain

0 dB to 12 dB

White Balance

-2dB to 6dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)["Humidity (Storage)"]

20 % to 80 % (non-condensing)["\t 20 % to 95 % (non-condensing)"]
