Imaging Source DFK 33UX250 USB 3.0 Color Industrial Camera

$1,264.00

•2/3 inch Sony CMOS Pregius sensor (IMX250LQR)
•2,448x2,048 (5 MP), up to 75 fps
•Global shutter
•Trigger and I/O inputs
•Manufactured by The Imaging Source

SKU: DFK 33UX250

$1,264.00

Description

Specifications

Downloads

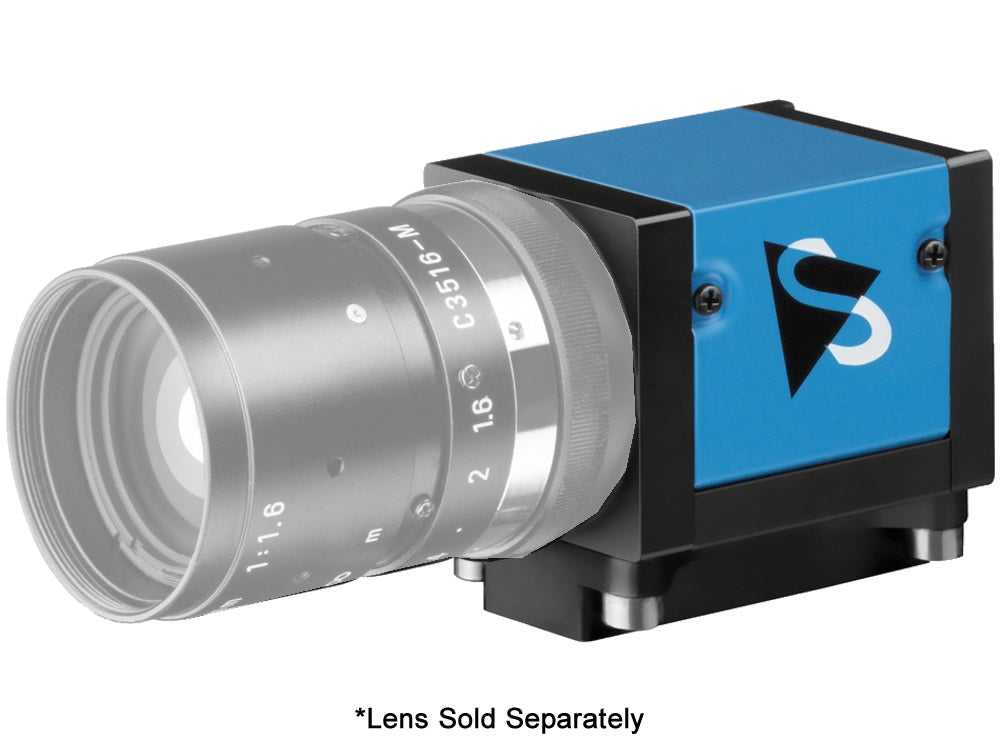

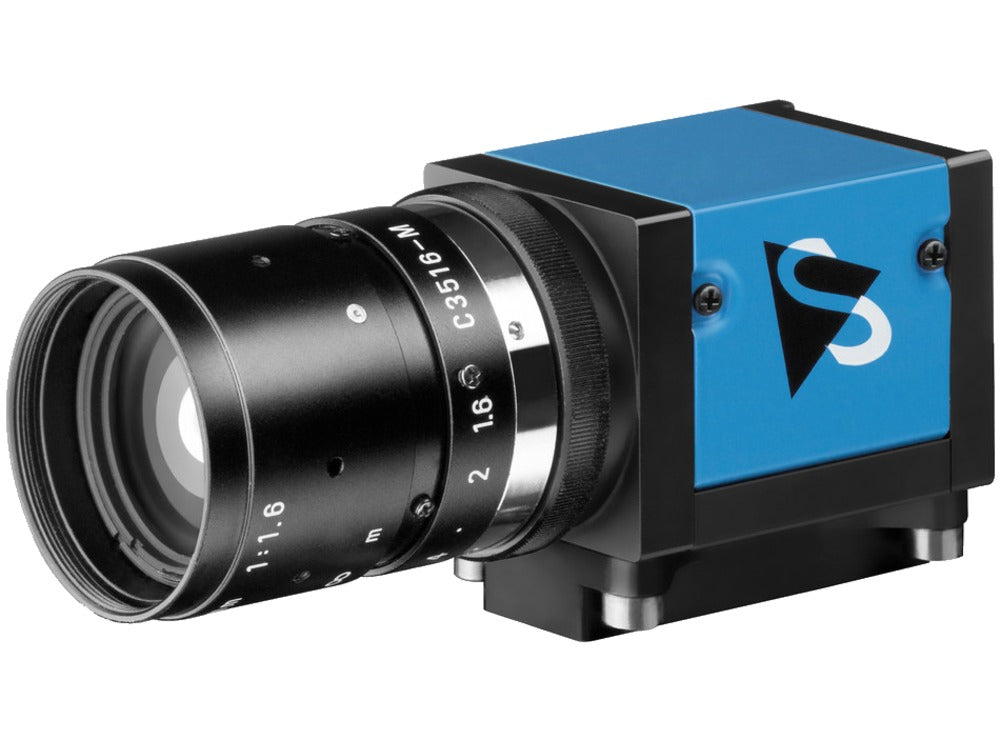

Imaging Source DFK 33UX250

USB 3.0 Color Industrial Camera

The Imaging Source DFK 33UX250 monochrome camera has a USB 3.0 interface and is the perfect

solution for many industrial automation, quality assurance, security, surveillance and medical applications.
The monochrome camera ships with the very sensitive 2/3 inch Sony CMOS Exmor IMX250LQR sensor. With up to
75 images per second, the DFK 33UX250 is a low cost, yet highly versatile imaging solution. The camera includes a C to
CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the
camera is also compatible to M12 board lenses.

The Imaging Source authors and supports drivers, SDKs, extensions and end-user software for Microsoft Windows, which can be freely
downloaded from our web site. Extensions for Microsoft Windows enable the DFK 33UX250 to be integrated in to common machine
vision software libraries, such as LabView and OpenCV. Furthermore, we author and support open source Linux drivers and software
(Apache License 2.0) to integrate the camera into popular distributions. Download the Linux source code at GitHub.

Dynamic Range

12 bit

Video Format

2448×2048 (5 MP)

IR-Cut Filter

Yes

Sensor Type

CMOS Pregius

Sensor Specification

Sony IMX250

Shutter

Global

Format

2/3 inch

Pixel Size

H: 3.45 µm x V: 3.45 µm

5 MP

Resolution

2448 x 2048

FPS

75 FPS

Mono/Color

Color

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 800 mA @ 5 VDC

Auto Iris Control

Trigger

Yes

I/O

Yes

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

1 µs to 4 s

Gain

0 dB to 48 dB

Temperature (Operating)

-5 °C to 50 °C

Temperature (Storage)

-20 °C to 80 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)

The Imaging Source Product Catalog

Download
