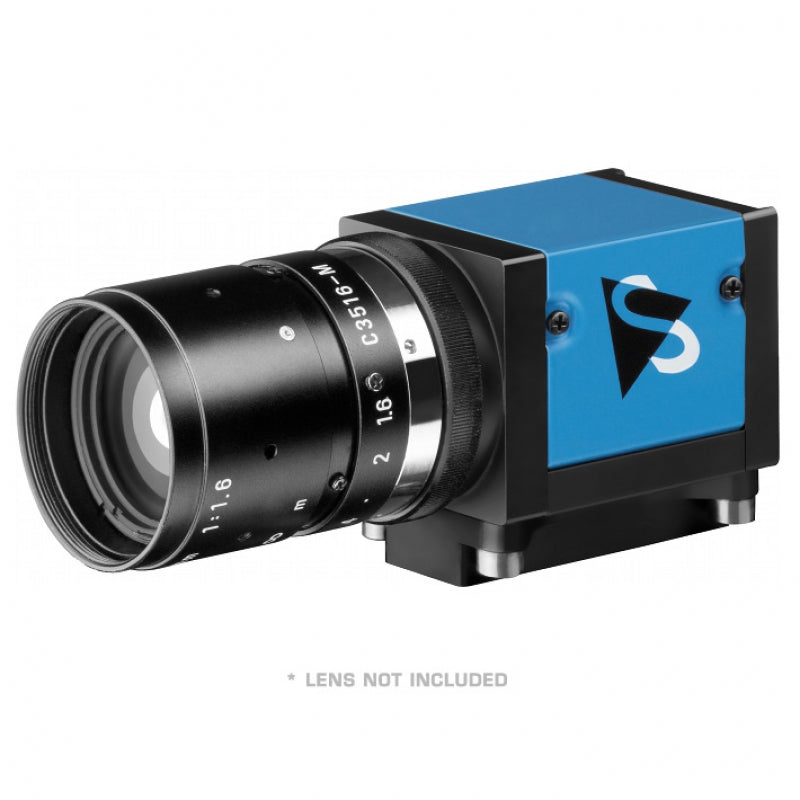

Imaging Source DFK 23UM021 USB 3.0 Color Industrial Camera

$437.00

• 1/3 inch Aptina CMOS sensor (MT9M021)
• 1,280x960 (1.2 MP), up to 115 fps
• Global shutter
• Manufactured by The Imaging Source

SKU: DFK 23UM021

We usually have a majority of these items in stock.
Please call or contact us for availability.

Description
Specifications
Downloads

Imaging Source DFK 23UM021

USB 3.0 Color Industrial Camera

The Imaging Source DFK 23UM021 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/3 inch Aptina CMOS MT9M021 sensor. With up to 115 images per second, the DFK 23UM021 is a low cost, yet highly versatile imaging solution.

The camera includes a C to CS mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

Dynamic Range

8/12 bit

Video Format

1280×960 (1.2 MP) RGB32 @ 60 fps, 1280×960 (1.2 MP) Y16 @ 30 fps, 1280×960 (1.2 MP) Y800 @ 60 fps

Sensor Type

CMOS

Sensor Specification

onsemi MT9M021

Shutter

Global

Format

1/3 inch

Pixel Size

H: 3.75 µm x V: 3.75 µm

MP

1.2 MP

Resolution

1280 x 960

FPS

60 FPS

Mono/Color

Color

Lens Mount

C/CS

Interface

PoE, USB 3.0

Supply Voltage

4.5 VDC to 5.5 VDC

Current Consumption

Approx. 250 mA @ 5 VDC

Auto Iris Control

No

Trigger

No

I/O

No

Dimensions (H x W x L)

H: 29 mm x W: 29 mm x L: 43 mm

Mass

65g

Adjustable Shutter

0.1 ms to 1 s

Gain

0 dB to 9 dB

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
