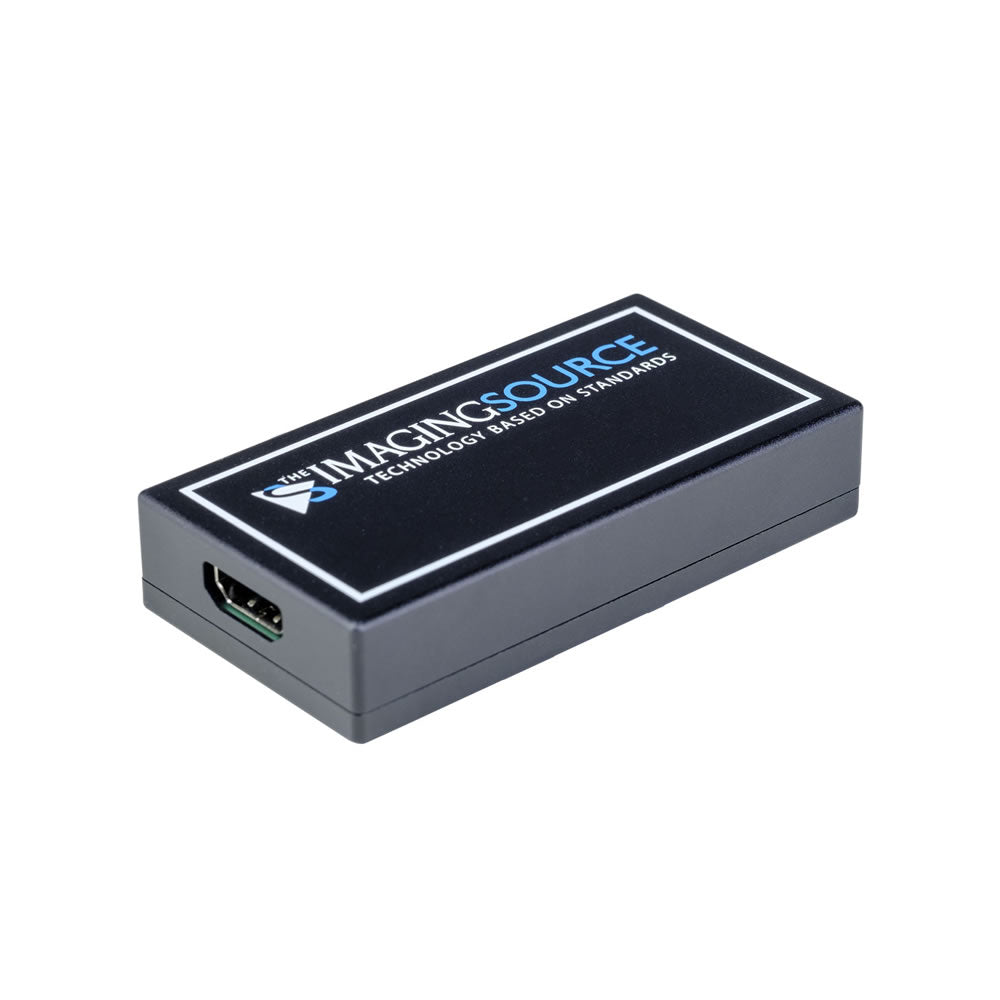

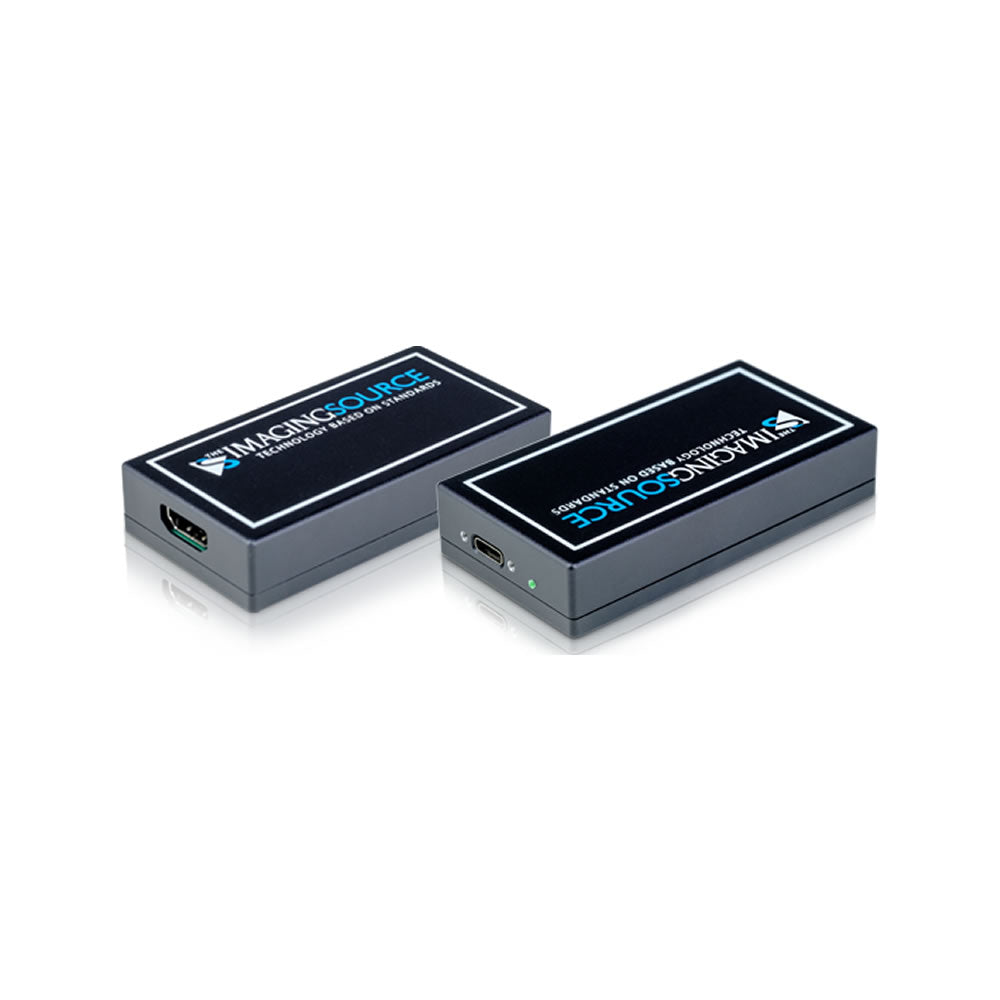

Imaging Source DFG/HDMI HDMI-to-USB converter

$401.00

• HDMI-to-USB converter
• Video standard: HDMI

SKU: DFG/HDMI

$401.00

Description

Specifications

Downloads

DFG/HDMI

HDMI-to-USB converter

Capture HD or 4K HDMI input signals through a standard USB 3.0 interface

The Imaging Source's HDMI-to-USB converter (DFG/HDMI) captures digital images from HDMI video sources such as medical and industrial imaging devices, computers and other video equipment. The uncompressed video signal can then be processed or recorded via The Imaging Source's free software tools: IC Measure, IC Capture and IC Imaging Control SDK. A selection of supported resolutions include 1920x1080 (Full HD) at 60 fps, 3840x2160 (4K) at 30 fps and 4096x2160 (4K) at 30 fps. This robust and cost-optimized converter is quickly connected and can be used with Windows or Linux-based operating systems.

The Imaging Source offers various video signal converters for a wide range of input signals and applications: Convert analog (PAL, NTSC, CCIR, EIA) or SDI video signals to digital image data streams; capture video signals from an HDMI source via USB 3.0 interface; reduce system footprint by directly connecting an HDMI display with any of The Imaging Source's USB industrial cameras using the USB-to-HDMI Converter.

Color Formats

RGB24, YUY2, Y411, Y800 and Bayer8

Input

HDMI

Output

USB 3.1

Output Formats @ Frame Rate (maximum)

1,920×1,080 (2.1 MP) YUY2 @ 60 fps 3,840×2,160 (8.3 MP) Y411 @ 30 fps 4,096×2,160 (8.8 MP) Bayer8 @ 30 fps

Configuration Port

USB 3.1 Interface

Power

4.75 VDC to 5.25 VDC

Current Consumption

Approx. 500 mA @ 5 VDC

Dimensions

H: 13 mm, W: 43 mm, L: 83 mm

Weight

101 g

Temperature (Operating)

0 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
