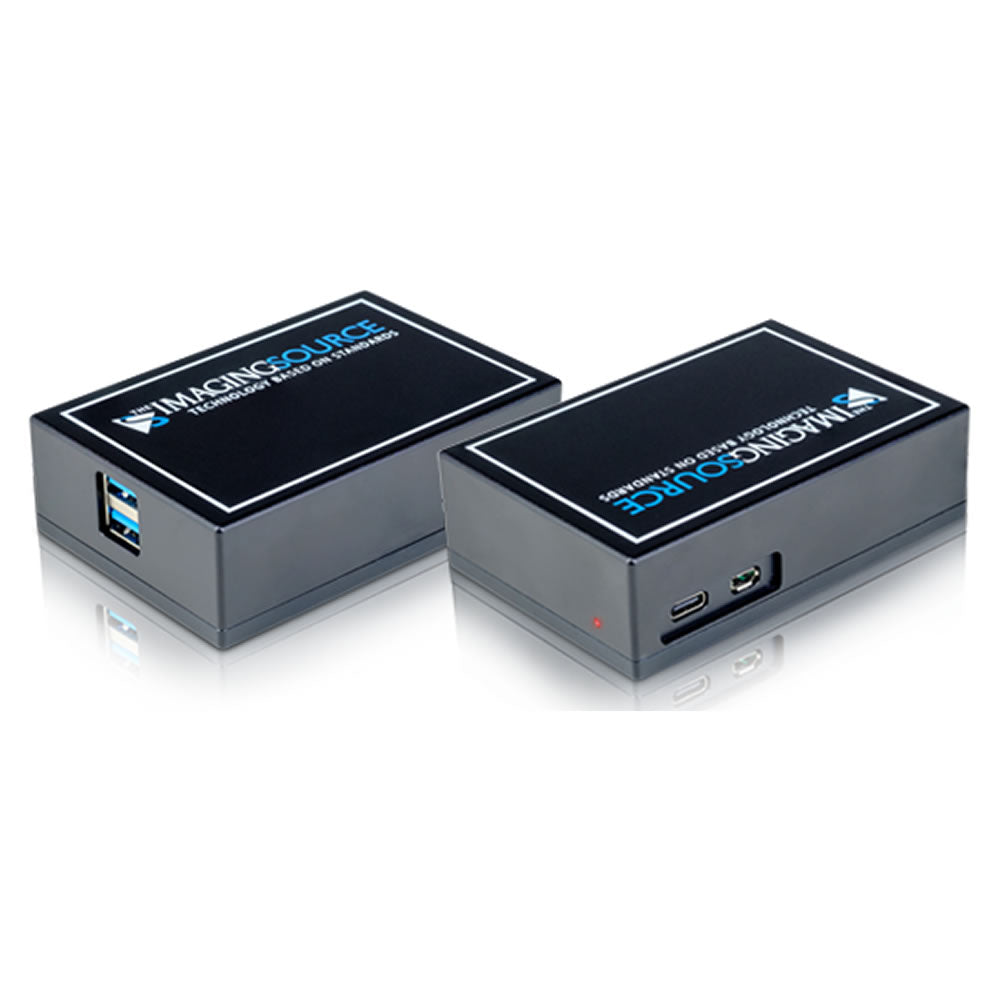

Imaging Source DFG/USBtoHDMI USB-to-HDMI converter

$275.00

• USB-to-HDMI converter
• Input: USB 3.0 Type A
• Output: HDMI
• Supports input devices:
• Imaging Source 33U, 37U, 38U cameras

SKU: DFG/USBtoHDMI

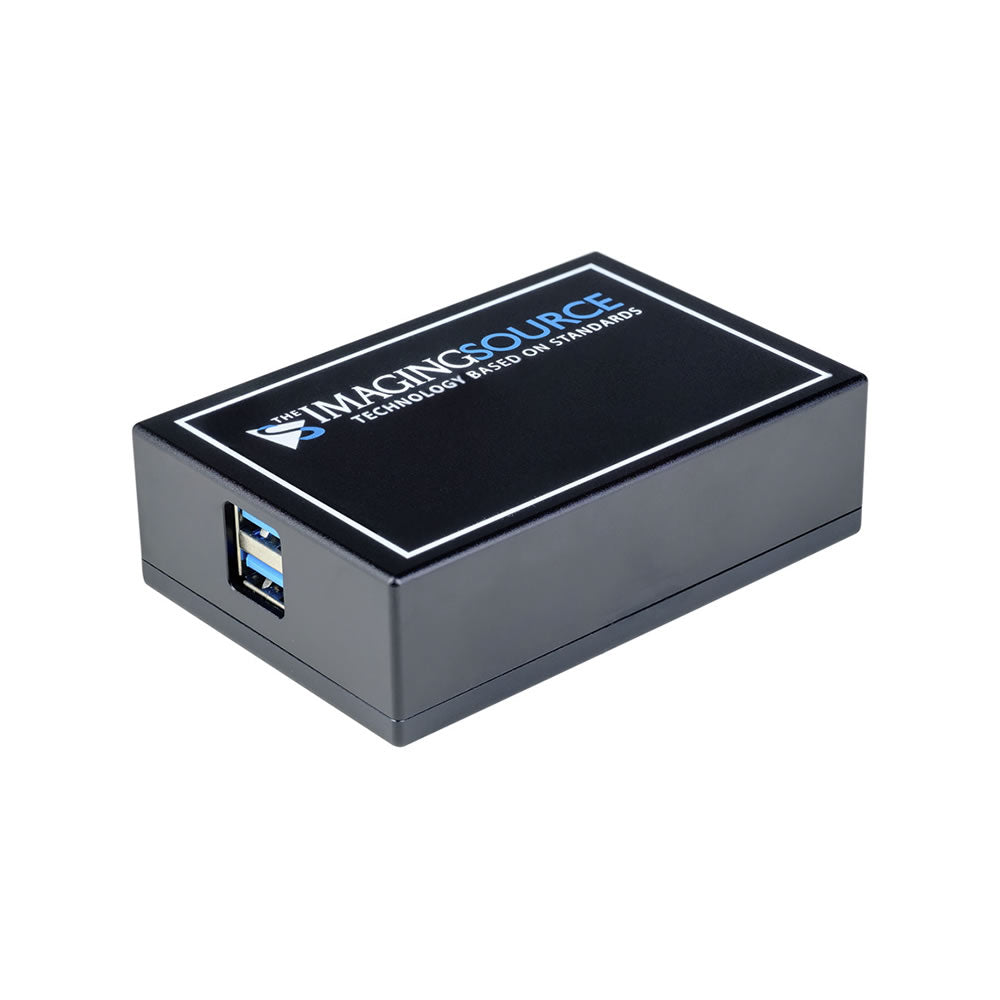

DFGUSBtoHDMI_hero

Imaging Source DFG/USBtoHDMI USB-to-HDMI converter

$275.00

$275.00

Description
Specifications
Downloads

Imaging Source DFG/USB2pro

Video-to-USB 2.0 converter

Typical machine vision applications use dedicated computers to perform image processing and analysis.

Some simple monitoring and visualization tasks do not, however, require these levels of image processing. Such tasks are most efficiently solved by delivering images directly from camera to monitor—eliminating the need for and associated costs of dedicated computer hardware.

Expressly designed for this purpose, the USB-to-HDMI converter generates an HDMI signal from The Imaging Source’s USB3 camera image data. Camera settings like exposure and gain can be configured via an on-screen menu and are automatically restored on startup.

Features:

  • Supports all DMK/DFK 33, 37 and 38 series cameras from The Imaging Source
  • Supports resolutions up to 4K (3840x2160) at 15 fps; Full HD up to 60 fps
  • Supports monitors up to 4K native resolution
  • Easy-to-use on-screen menus for camera and display settings via USB keyboards

Input

USB 3.0, Type A

Output

HDMI

Output Formats @ Frame Rate (maximum)

3,840×2,160 (8.3 MP) @ 60 fps, 1,920×1,080 (2.1 MP) @ 60 fps

Configuration Port

USB 3.0, Type A

Power

4.75 VDC to 5.25 VDC, USB 3.0, Type C

Current Consumption

Approx. 3,000 mA @ 5 VDC

Dimensions

H: 29 mm, W: 63 mm, L: 95 mm

Weight

233 g

Temperature (Operating)

0 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
