Teledyne FLIR Tau 2+ 640 x 512 19mm 32°HFoV - LWIR Thermal Imaging Camera Core
$8,496.00
Unit price per
Tau™ 2+
Longwave Infrared Thermal Camera Module with Enhanced Performance and Increased Sensitivity
Made in USA, the Tau 2+ is the most advanced, highest performance longwave infrared (LWIR) Tau 2 camera model from Teledyne FLIR. It maintains the widely deployed and real-world-tested Tau 2 mechanical, electrical, and optical interfaces allowing plug-and-play with existing designs. Its new 1.5x sensitivity improvement and an entirely redesigned image processing engine deliver dramatically enhanced scene contrast and sharpness.
Tau 2+ is the go-to thermal camera module for the most challenging environments, including detection of the smallest, hardest to find targets over long distances. Enhanced LWIR thermal performance and market-leading reliability provide low-risk development in the short run and the long run, making it the ideal thermal camera module for unmanned vehicles, security applications, and thermal sights.
DETECT OBJECTS AT GREATER DISTANCES
NEDT of <25 mK extends detection, recognition, and identification (DRI) performance
- 1.5x increase in thermal sensitivity
- 640 x 480 VGA resolution
- Simple optical interface accommodates integrator-designed optics
RESOLVE KEY INFORMATION WITH SHARPER IMAGES AND IMPROVED CONTRAST
Best in class image processing algorithm provides clearer thermal details in challenging environments
- New level of minimum resolvable of temperature difference (MRTD)
- Low image noise
- Improves scene contrast with blacker blacks and whiter whites
DESIGNED FOR INTEGRATORS
Shared Tau 2 interface and access to US-based Technical Services team reduce development risk and shorten time to market
- Commercial off-the-shelf connectors including USB, CMOS, Camera Link, or Ethernet
- Comprehensive product documentation and many years of reliable Tau production experience
- Industry’s widest variety of lens options available
ACCURATE TEMPERATURE MEASUREMENT
Supports radiometry, analytics and telemetry
- TLinear output places temperature data in each pixel
- Adjustable isotherm thresholds colorize temperatures of interest
- Rugged and reliable in all terrain
IMPROVED IMAGE PROCESSING
For clearer imagery, edge sharpening, and contrast
- Second generation Digital Detail Enhancement (DDE)
- Active Contrast Enhancement (ACE)
- Smart Scene Optimization (SSO)
- Information Based HEQ (IBHEQ) automatically adjusts AGC
- Silent Shutterless NUC for continuous image improvement
COMMON FEATURES ACROSS MODELS
Fosters improved OEM integration
- Multiple lens and FOV options
- 60Hz or 30mK frame rates
- Mechanical / electrical compatibility
- FLIR brand and support
Color Palette Comparison (30Hz)
Color Palette Comparison (7.5Hz)
FLIR Tau 2+ Features
FLIR Tau 2+ 640 Thermal Imaging Camera Core LWIR Uncooled Thermal Imaging Cameras offer an unmatched set of features such as radiometry, increased sensitivity (<25mK), frame rates, and powerful image processing modes. Some key features include:
- 640 x 512 Pixels
- 30Hz Frame Rate
- 2x and 4x Continuous Digital Zoom
- Multiple Color Palette Function
- Remote Control via TTL
- Improved Image Processing
- Customizable Splash Screen
- 1 Year Manufacturer Warranty
- Exportable to Most Countries License Free
FLIR Tau 2 for OEM Applications
Since the electrical functions are common between the Tau 2+ and Tau 2 640 and 336, integrators have direct compatibility between the different camera formats, and Tau 2 camera versions share many of the same lens options. Making them well-suited for demanding applications like:
- UAV & UGV Systems
- Component Analysis
- OEM Handheld Imagers
- Nighttime Navigation
- Security Systems
- Electrical Inspection
- Aerial Photography
FLIR Tau 2 Out of the Box Video

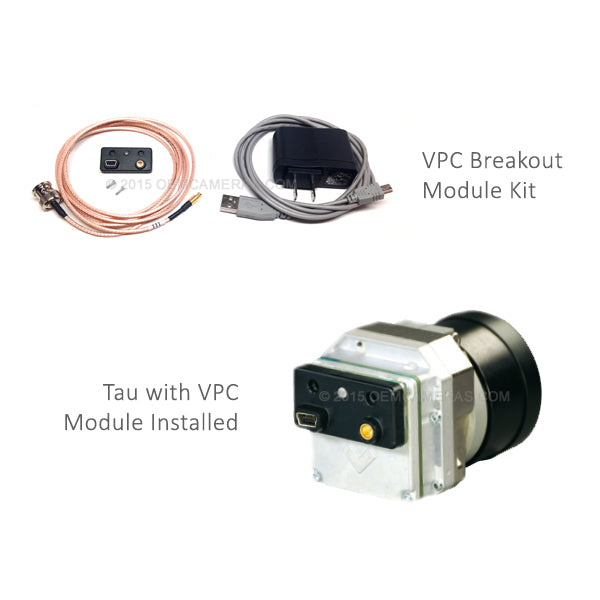

(with VPC Module Kit)
FLIR Tau Distance Chart
