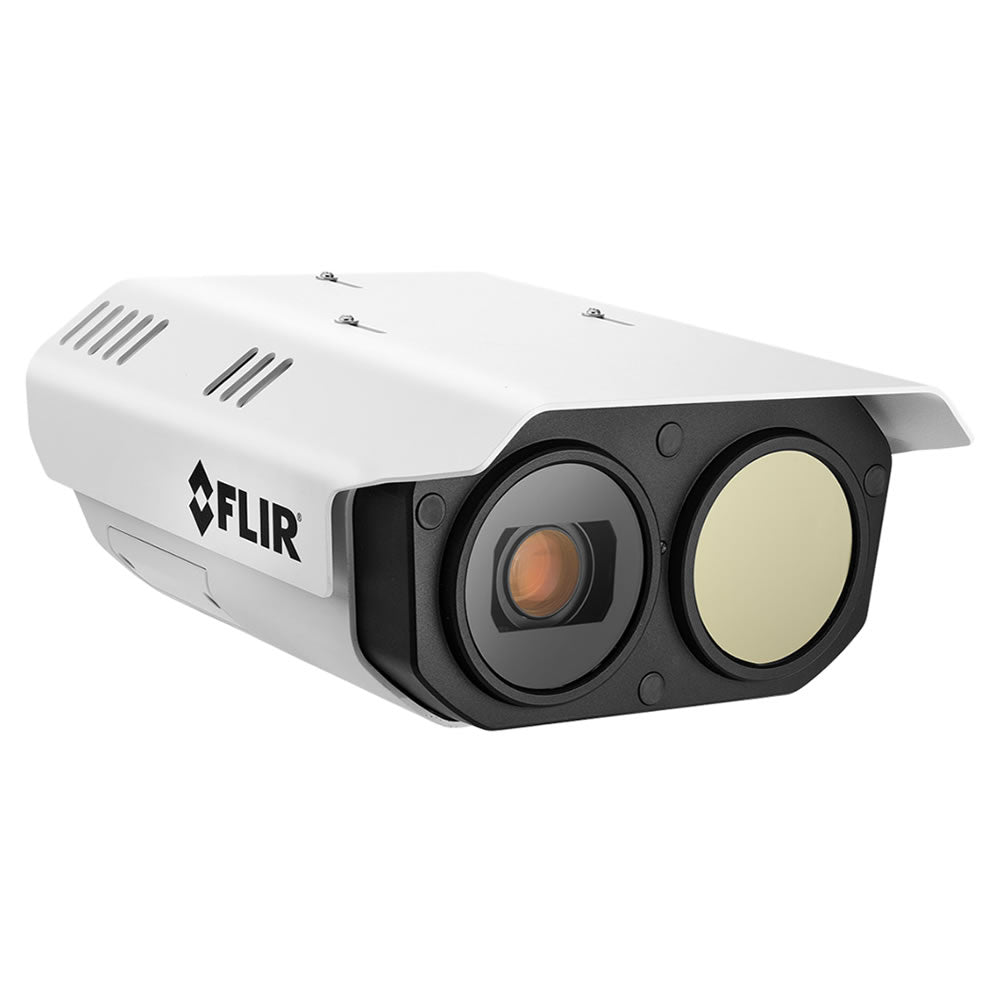

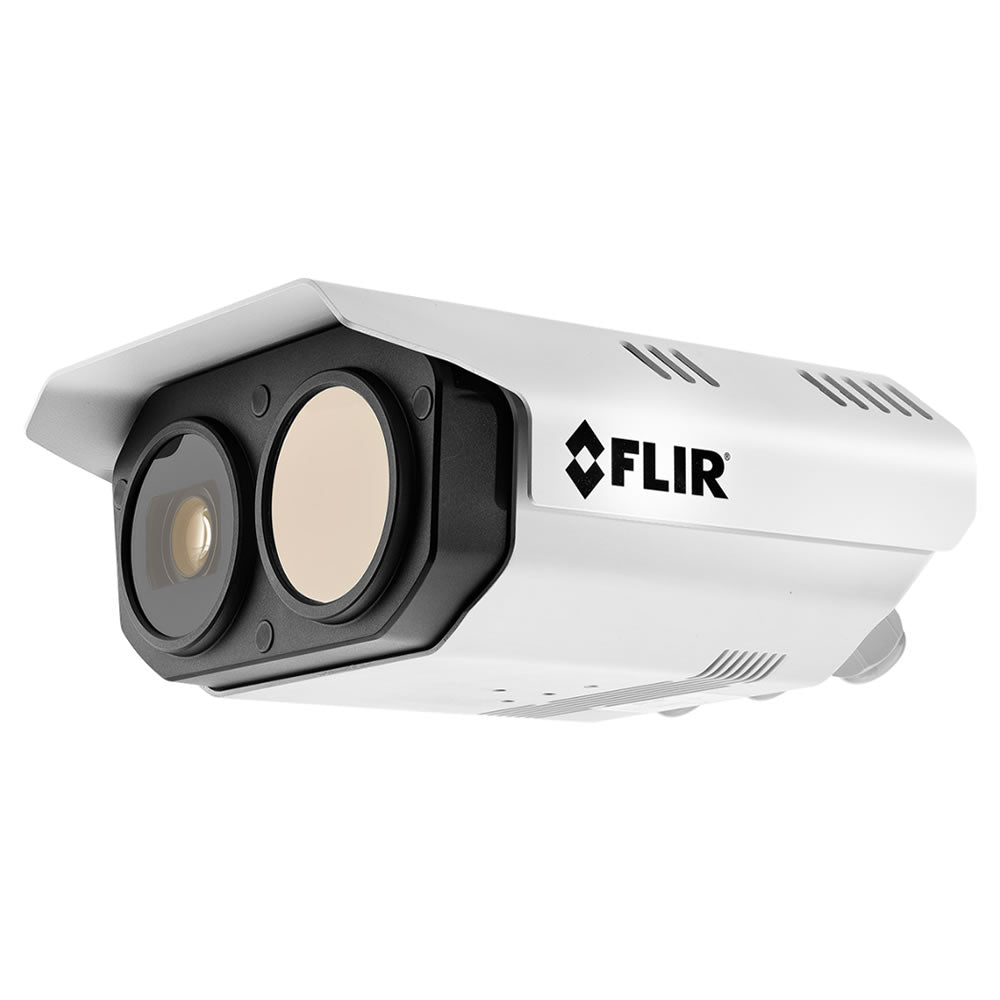

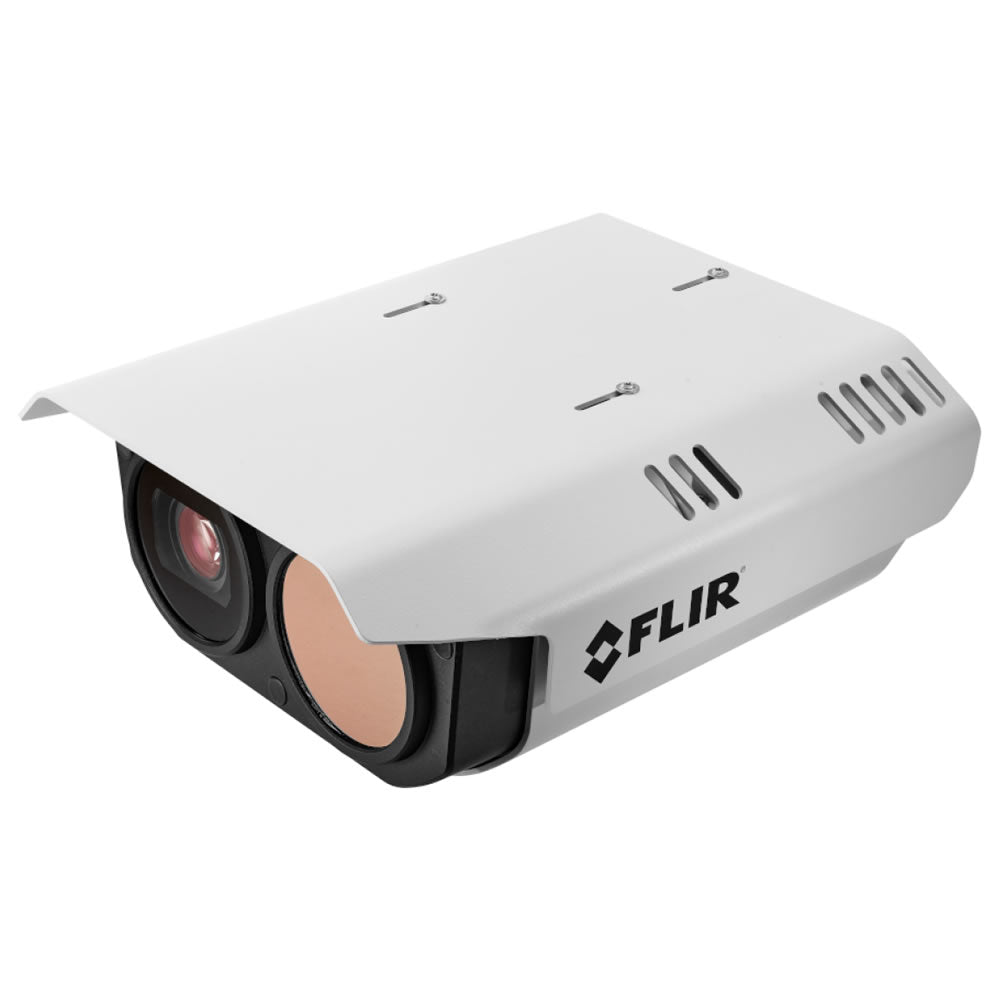

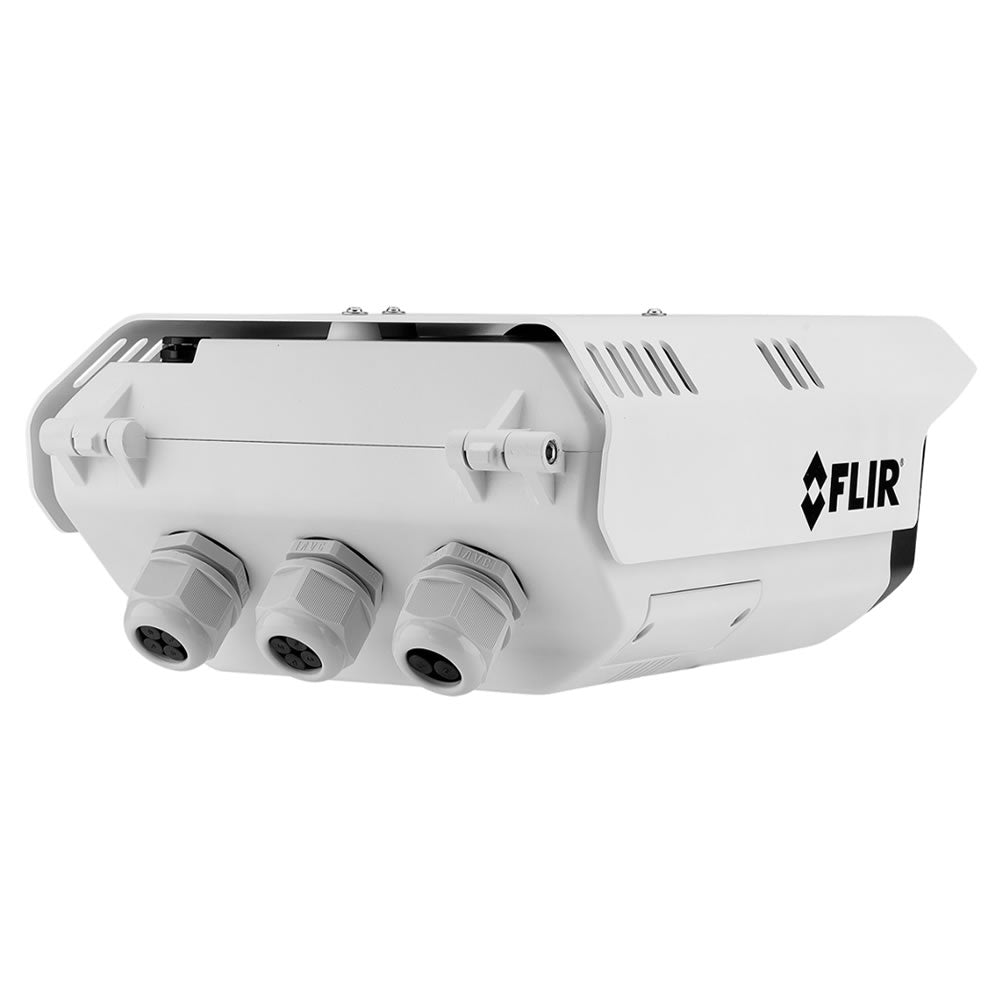

Teledyne FLIR Triton FH-669 ID, 640 x 512, 9MM 69° FOV - LWIR Multispectral Fixed Camera

$9,849.00

• Perimeter Protection
• Intrusion Detection
• Target Geolocation
• 4K Visible Camera
• 640 x 512 Thermal Resolution

SKU: 427-0102-31-00

$9,849.00

Description
Specifications
Downloads

Triton FH-Series ID

Multispectral Fixed Camera for Perimeter Protection

The FLIR Triton FH-Series ID are ruggedized, multispectral fixed cameras that integrate industry-leading thermal imaging with 4K visible imaging to provide reliable intruder-detection capabilities for perimeter security.

Built-in convolutional neural network (CNN) analytics accurately detect and classify human and vehicle threats moving at high or low speeds, minimizing false alarms and daily operations costs. Custom scheduling enables operators to run visible analytics during the day and thermal analytics at night for optimized coverage in any lighting condition.


Triton Color Image Example

ALWAYS READY, ALWAYS WORKING

Combines thermal and visible imaging into one device for consistent performance across all environments.

  • 640 × 512 thermal resolution with <30 mK sensitivity for 24/7 awareness
  • 4K visible camera delivers real-time forensic detail
  • Dual-sensor system in a single installation
  • 10-year thermal sensor warranty
Triton Thermal Image Example

HIGH-ACCURACY INTRUSION DETECTION

Advanced analytics reduce false alarms while accurately detecting human and vehicle threats.

  • AI-based classification of humans and vehicles
  • Reduced false alarms and operational costs
  • Flexible scheduling for day/night analytics modes
  • Reliable detection even with partial visibility or varying speeds
Triton Mounted on a Pole

EASY INTEGRATION

Integrates seamlessly into FLIR ecosystems or third-party security platforms.

  • NEXUS® technology enables network connectivity to FLIR edge devices
  • Compatible with FLIR United VMS and major third-party VMS
  • ONVIF® conformant (Profiles S/G/T)

Resolution

640 x 512

Pixel Pitch

17 µm

Spectral Band

7.5 – 13.5 µm

Sensitivity/NEdT

<25 mK @ 25°C

Frame Rate

30 Hz

Zoom

4x continuous E-Zoom

Radiometry

No

Field of View

69°(H) × 56°(V)

Focal Length

9mm

f-number

f/1.1

Dimensions (L x W x H)

314 x 233 x 124 mm (12.31 × 9.17 × 4.88 in)

Weight

5.1kg (11.3 lbs.)

Input Voltage

12 VDC: 48 W Heaters enabled, all other inputs: 70 W, Nominal: 15 W Heaters enabled

Composite Video NTSC or PAL

Hybrid system with IP & analog video

Analytics Features

Region Entrance/Intrusion Detection, Crossover/Fence Trespassing; Auto/Manual Depth Setup, Human and Vehicle Rules, Tampering, Loitering, CNN classifier

Analytics Management

Web-based configuration and management, Masking of analytic detection areas, adjustable sensitivity,automatic responses, remote I/O control

Digital Video Compression

Two independent channels of H.264/H.265 or M-JPEG (except 4k) for visible and thermal

IP Rating

IP66 & IP67

Humidity

0-95% relative humidity

Image Uniformity Opt.

Automatic Flat Field Correction (FFC); Thermal and Temporal Triggers

Certifications

IEC 62368

Effective Resolution

327,680 pixels

Streaming Resolution

Primary Stream: 640×512, Visible 4k: 3840 x 2160

Operating Temperature Range

-40°C to 70°C/-40°F to 158°F

Storage Temperature Range

-50°C to 85°C/-58°F to 185°F

Thermal AGC Region of Interest

Default, Presets, and User definable to ensure optimal image quality on subjects of interest

Ethernet Connector Type

RJ-45

FH Series ID Datasheet

Download
