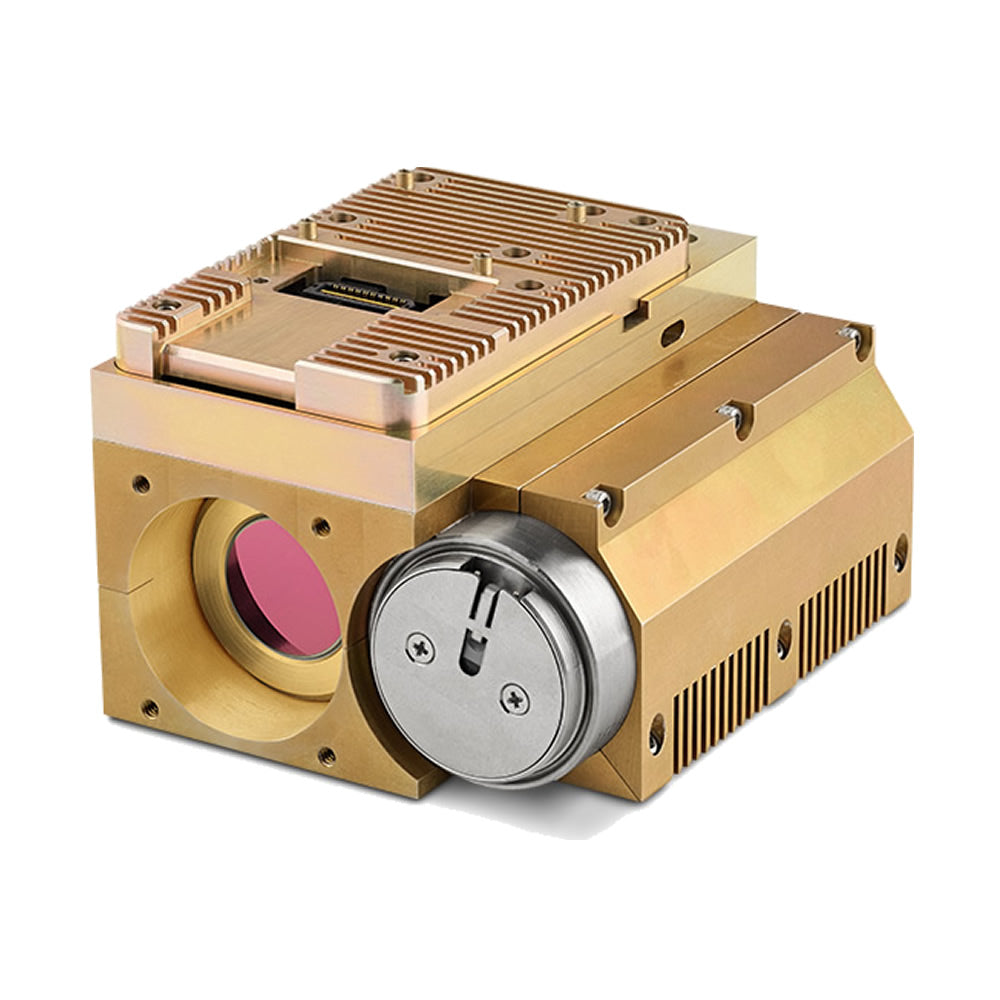

Teledyne FLIR Neutrino QX, f/2.5, with Shutter MWIR Camera Module

$0.00

• Sensor Size (W x H): 2048 x 1536
• Detector Type: InSb
• Sensor Technology: MWIR
• Pixel Pitch:  10µm
• Size (w/o lens): 13.4 x 7.0 x 10.3 cm (5.26 x 2.76 x 4.05 in)
• Spectral Band: 3.4µm to ≥ 5µm Standard
• Weight: 1970 g / 4.34 lbs.
• Frame Rate: 60Hz (1080P), >30Hz (QXGA)
• Aperture: f/2

This item is available by quote only. View your quote list

SKU: 425-0054-00
neutrino_qx

Teledyne FLIR Neutrino QX, f/2.5, with Shutter MWIR Camera Module

$0.00

$0.00

Description
Specifications
Downloads

FLIR Neutrino QX

High Resolution MWIR Camera Module

NDAA compliant and ITAR-free, the Neutrino® Performance series includes the FLIR Neutrino QX and SX12.With high resolution and fast frame rates, the Neutrino Performance Series is ideal for ground or airborne intelligence, surveillance and reconnaissance (ISR), targeting, counter-UAS solutions, and Wide Area Motion Imagery (WAMI) applications. Recognizing integrators’ different operating requirements, the performance series offers a range of FPA types and optical interface options.

The Neutrino Performance Series was developed with system integrators in mind. The industry-standard interfaces, simple and powerful software controls, complete product documentation and Teledyne FLIR technical support reduces product development risk and shortens time to market.



HIGH-RESOLUTION PERFORMANCE

  • 2048 × 1536 MWIR sensor
  • High sensitivity and clarity
  • Optimized for long-range imaging

DESIGNED FOR INTEGRATORS

  • CameraLink & RS-422 support
  • Robust SDK
  • Reduced integration time

FLIR RELIABILITY

  • Proven MWIR platform
  • Documentation & support
  • Commercial + defense applications

Resolution

2048 x 1536 MWIR

Pixel Pitch

10 µm

Spectral Band

3.4 to ≥ 5.0 µm Standard

Noise Level (NEdT Value)

<30 mk, f/4, 50% well

Frame Rate Option

60 Hz (1080P), >30 Hz (QXGA)

Shutter

Yes

Solar protection

—

Continuous Digital Zoom

—

Symbology

—

Radiometry

—

Scene Dynamic Range

—

Temperature Accuracy

—

Field of View

—

Focal Length

—

Short Lens

—

f-number

—

Dimensions (L x W x H)

—

Weight

—

Precision Mounting Holes

—

Input Voltage

—

Power Dissipation

—

Video Channels

—

Control Channels

—

Configurable GPIO

—

Operating Temperature Range

—

Non-Op. Temp. Range

-57 °C to +80 °C (-65 °F to 176 °F)

Shock (goal)

—

Operational Altitude

—

Communication Protocol

—

Communication Protocol

—

Neutrino Series Datasheet

Download

Neutrino Series Accessories Datasheet

Download
