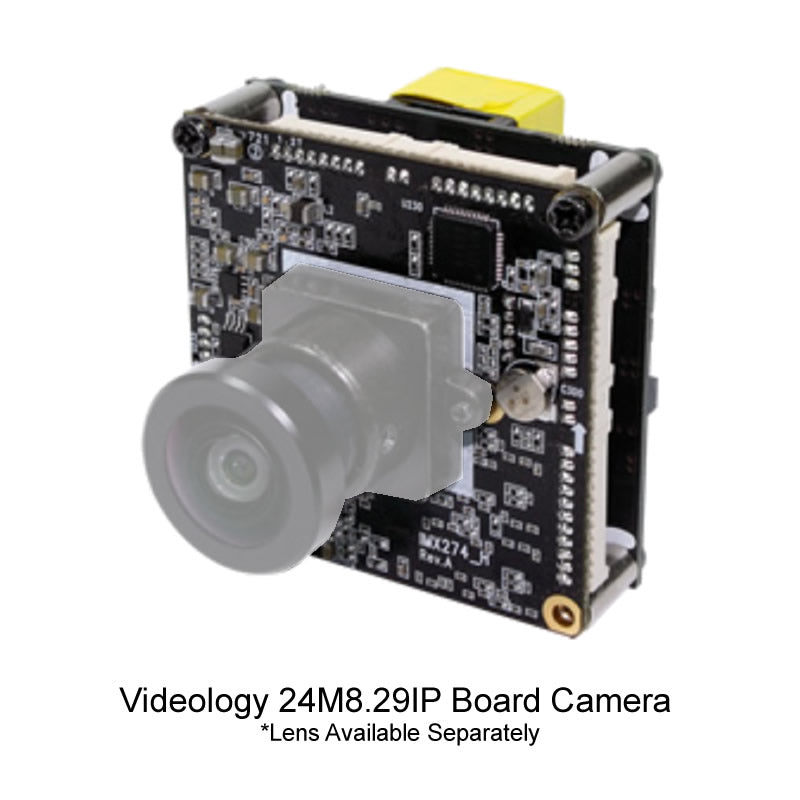

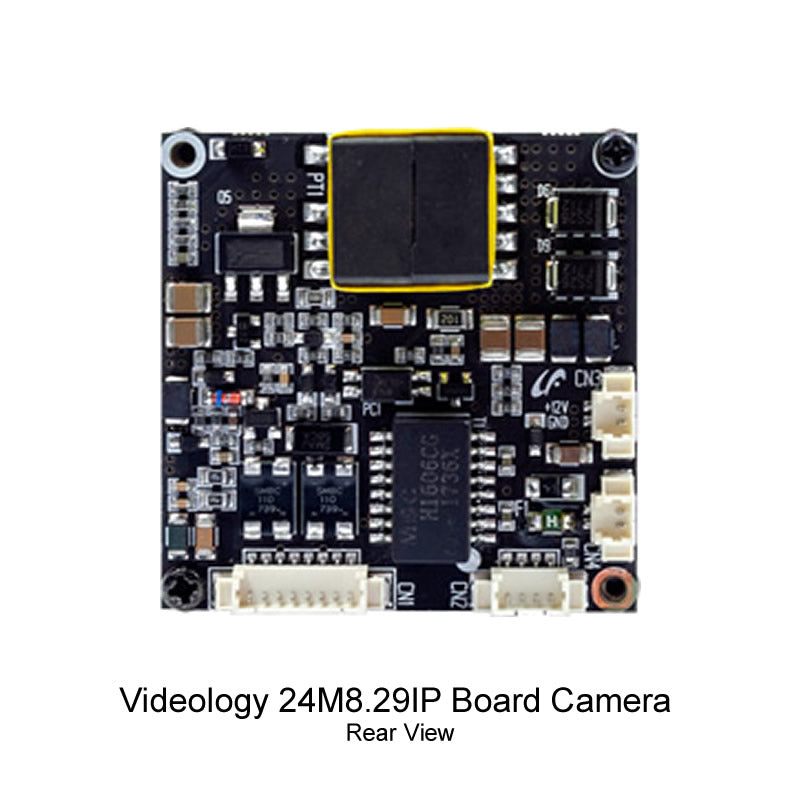

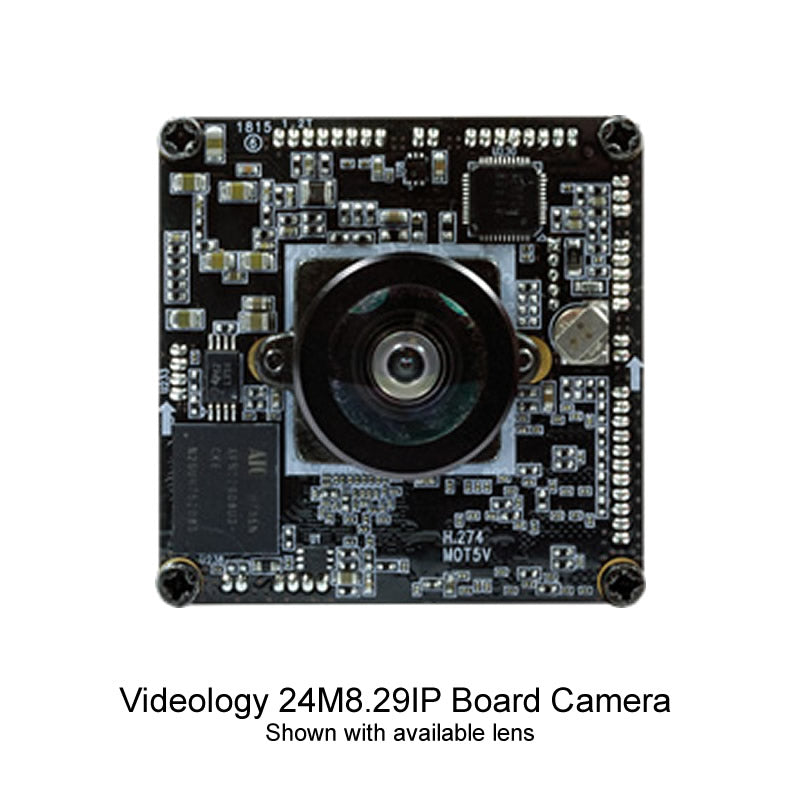

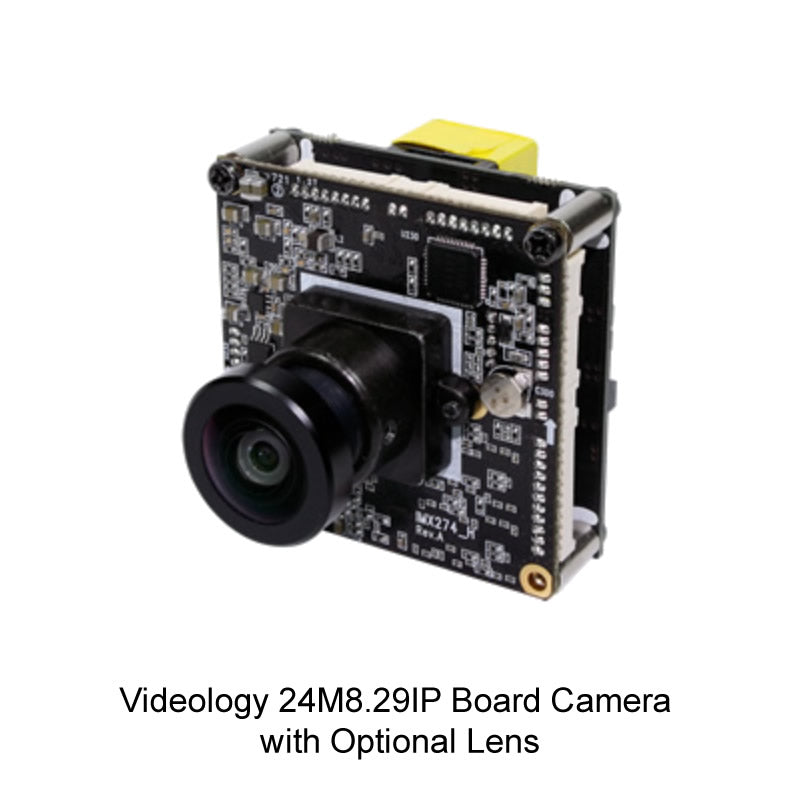

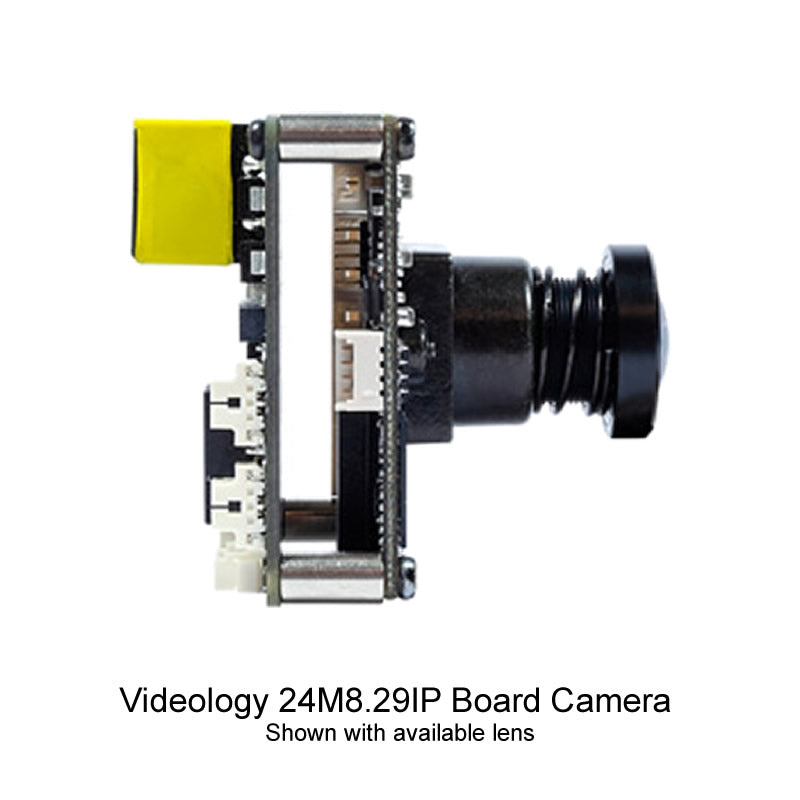

Videology 24M8.29NIP 4K IP Board Camera, Low Latency, with DOL WDR

$758.00

•8.29 Megapixel, IP camera, 3840x2160/ 30fps
•Remote field upgradable firmware
•Cross web browsing
•Power board includes PoE and 12VDC
•Three simultaneous streams of MJPEG & H.264 or H.265
•Zero configuration IP address (Zeroconf)
•Simple-LDC (Lens Distortion Compensation)
•Functions: Motion Detection, Privacy Mask, Defog, BLC, Mirror/Flip
•Adaptive web re-sizing depending on layout & resolution of display device

SKU: Videology 24M8.29IP

$758.00

Description

Specifications

Downloads

Videology 24M8.29NIP

4K IP Board Camera, Low Latency, with DOL WDR

The Videology 24M8.29NIP incorporates such features as 4K resolution, Digital Overlap Wide Dynamic Range (DOL-WDR), IP video server and H.265 compression, all in a single front board.

The 42mm x 42mm board camera 8.29 MP sensor outputs resolution of 3840x2160 @30fps. Compression options are H.265, H.264 and MJPEG with triple output stream each individually configured. The camera communication is ONVIF compliant for fast integration into security systems and can be powered via the ethernet port (PoE).

The camera has cross-browser capability. ActiveX and IE are used to configure all aspects of the camera.

Shutter Speed Control

Automatic/Manual: min 1/30,000 sec ~ max 1/25 sec Slow shutter: 2x/4x/Off

Operating Humidity

90% RH

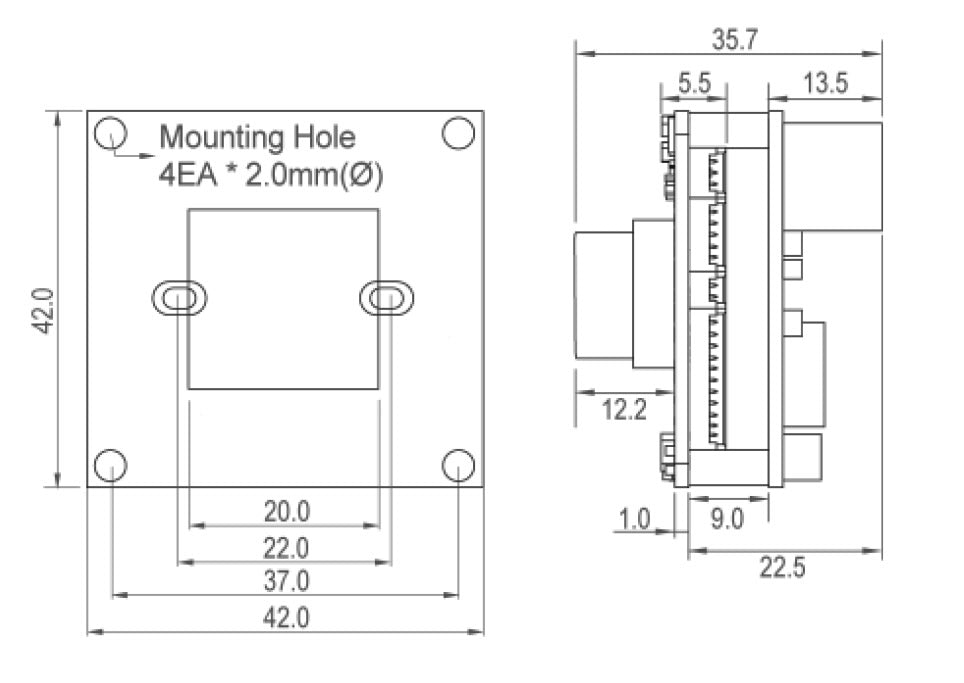

Dimensions

42.0mm x 42.0mm x 7.5mm (w/o lens mount) With PoE Board: 42.0mm x 42.0mm x 24.7mm (±5mm for cable overlap) (w/o lens mount)

Sensor

Sony 1/2.8” STARVIS CMOS 8MP Sensor (IMX415)

Power Consumption

3.36W (280mA)

24M8.29NIP Datasheet

Download
