Videology 24M2.17IP 2MP IP Board Camera with DOL WDR

$299.00

• New and Improved Ambarella Chipset!
• 2 Megapixel, IP camera, 1920x1080/ 30fps
• Remote field upgradable firmware
• Cross web browsing (IE, Edge, Safari, Firefox, Chrome)
• For full camera control, ActiveX is required (IE only)
• Power board includes PoE and 12VDC
• Simultaneously streaming of MJPEG & H.264 or MJPEG & H.265
• Zero configuration IP address (Zeroconf)
• DOL (Digital Overlap) WDR
• Simple-LDC (Lens Distortion Compensation)
• Functions: Motion Detection, Privacy Mask, BLC/HLC, D-Zoom, Mirror/Flip, Vertical View
• Adaptive web re-sizing depending on layout & resolution of display device by responsive web

Note: Significant heat transfer methods need to be implemented in customers mechanical design

SKU: 24M2.17IP

$299.00

Description

Specifications

Downloads

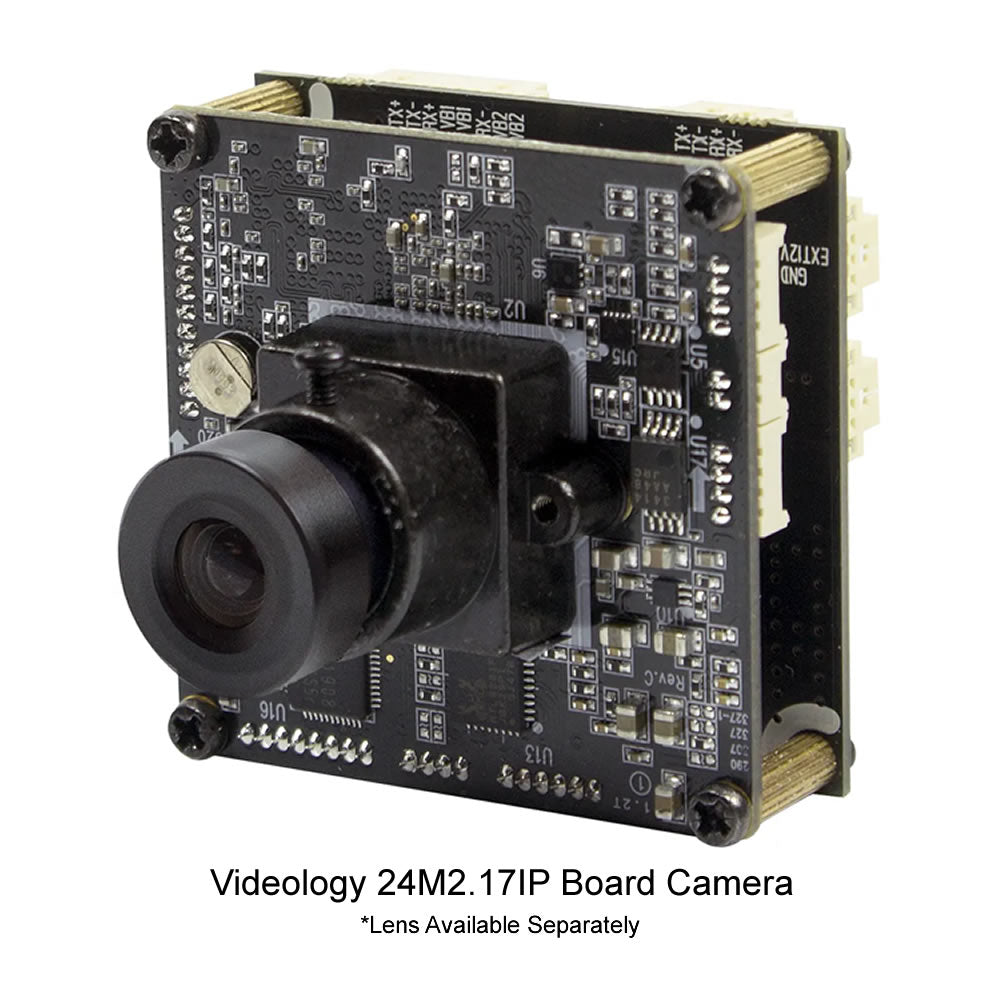

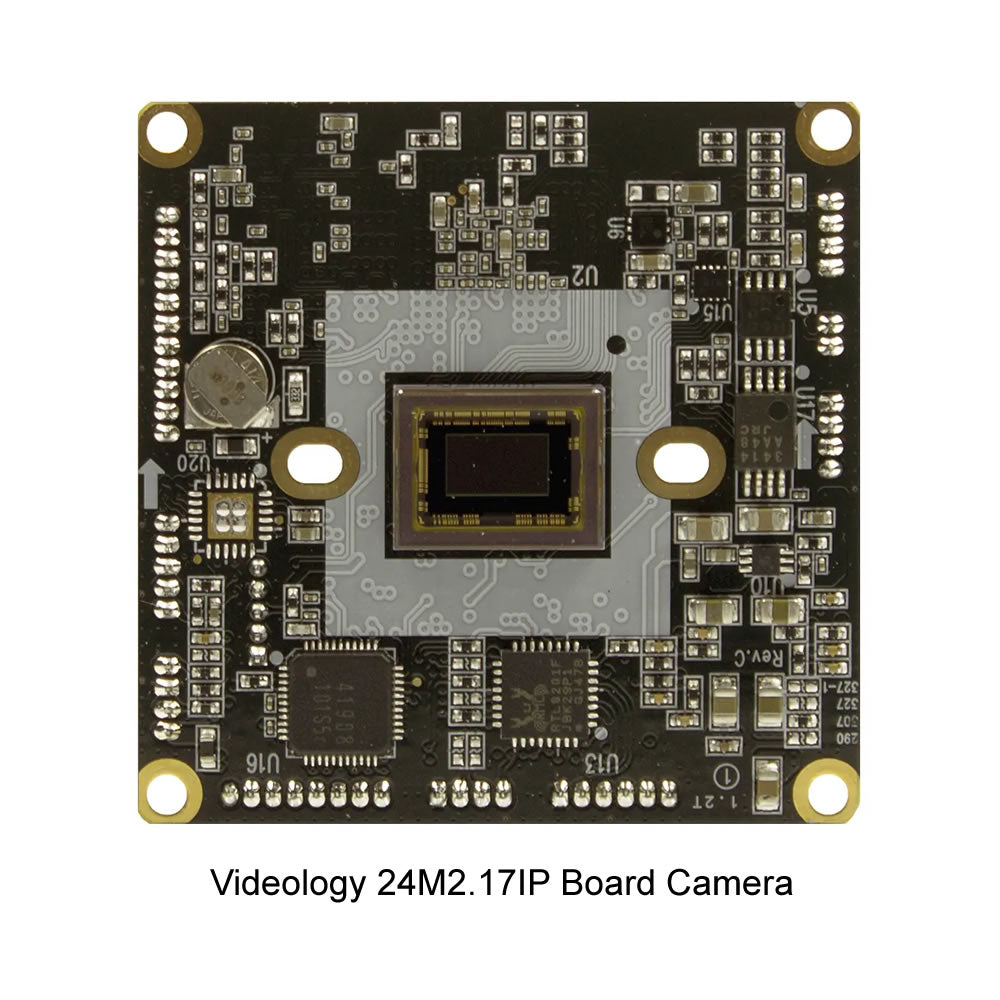

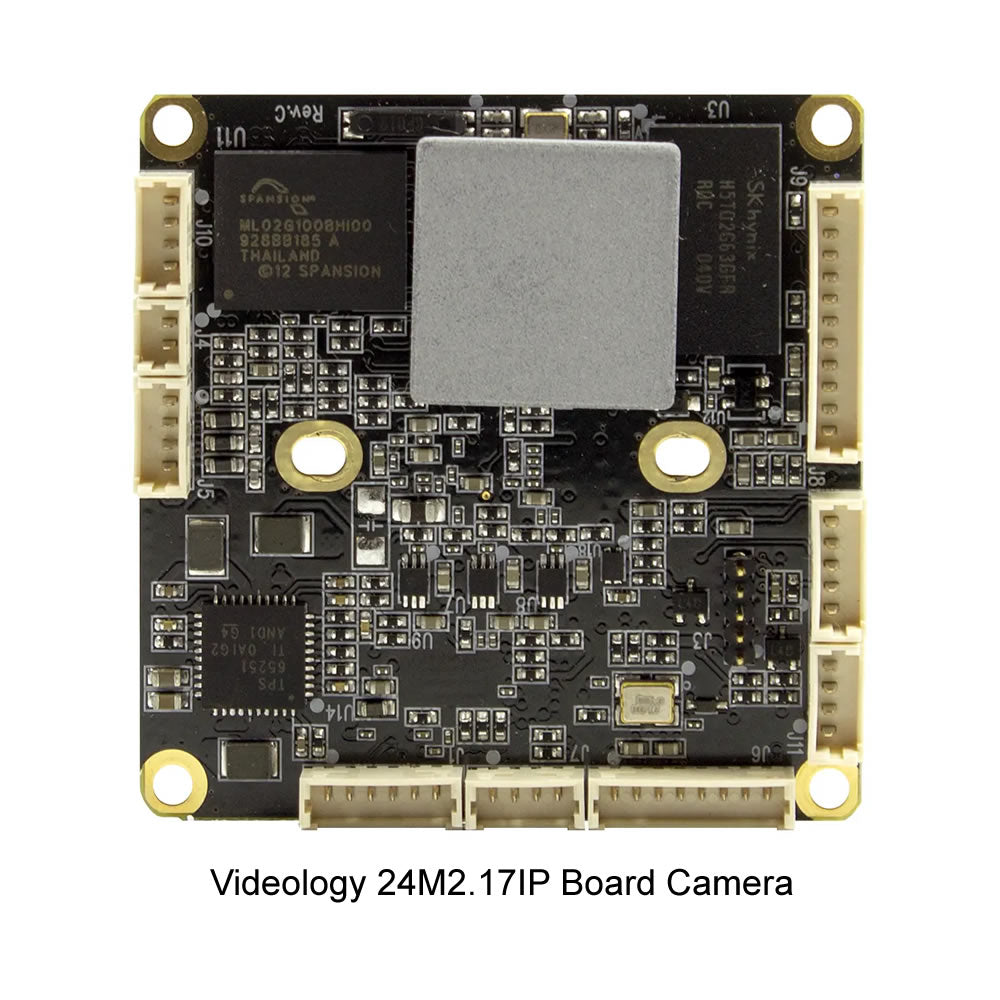

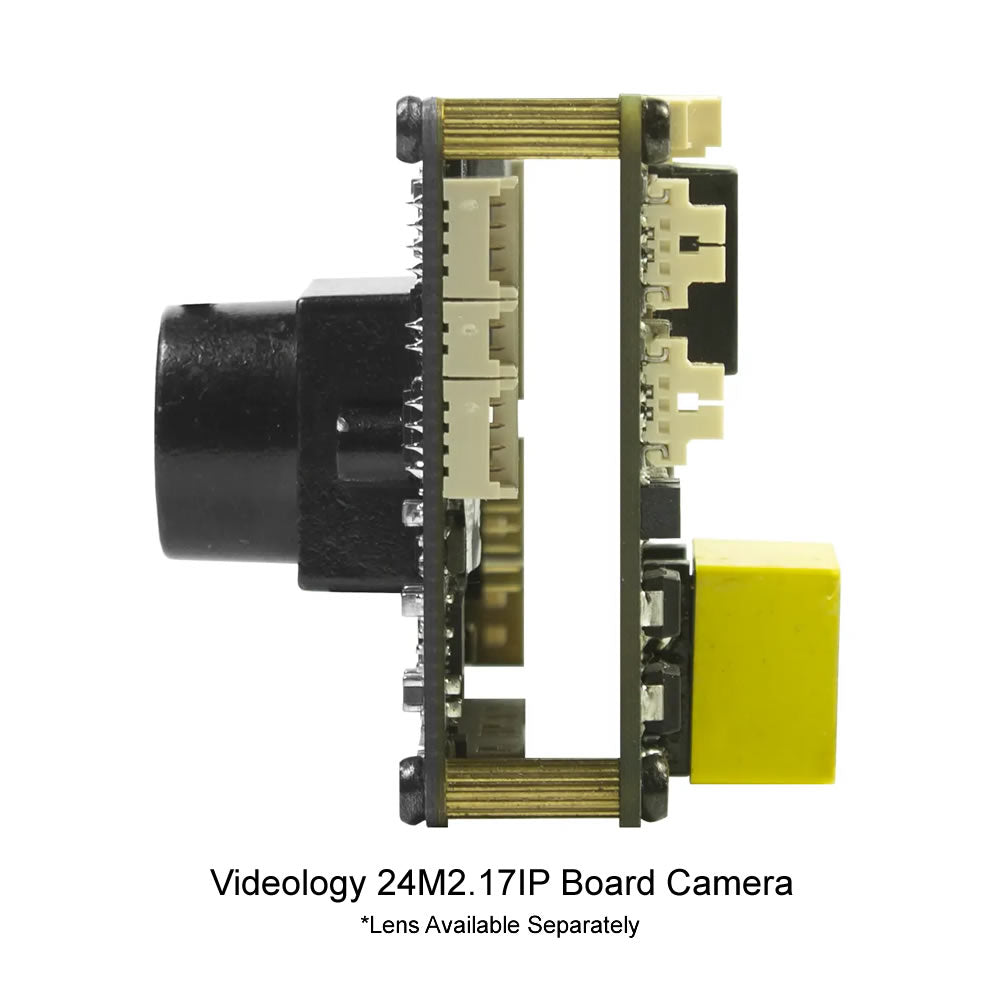

Videology 24M2.17IP

2MP IP Board Camera with DOL WDR

Introducing the new and improved Videology 24M2.17IP 2MP IP Board Camera with DOL WDR, featuring the latest Ambarella chipset for cutting-edge performance. This high-resolution IP camera delivers exceptional image quality with 2 megapixel resolution at 1920x1080/30fps. With a high 2MP resolution, this camera provides sharp and clear video footage, ensuring optimal monitoring and security.

The Digital Overlap (DOL) Wide Dynamic Range (WDR) technology enhances image clarity in challenging lighting conditions by capturing details in both bright and dark areas of the scene. The board camera design offers versatility for integration into various setups, allowing for seamless installation and customization to meet specific surveillance needs. Its innovative features, combined with reliable performance, make the Ambarella 2MP IP Board Camera an excellent choice for professional security solutions that prioritize crisp imagery and reliable monitoring capabilities.

Weight

890g

Shutter Speed Control

Automatic: min 1/110,000 sec ~ max 1/25 sec Manual: min 1/10,000 sec ~ max 1/25 sec

Functions

Motion Detection, Privacy Mask, Tamper, D-Zoom (~x10), HLC/BLC, Mirror/Flip, LDC, Vertical View

12VDC, PoE is 44.0VDC – 57.0VDC

Power Connection

Operating Humidity

0~90% (non-condensing)

24M2.17IP Datasheet

Download
