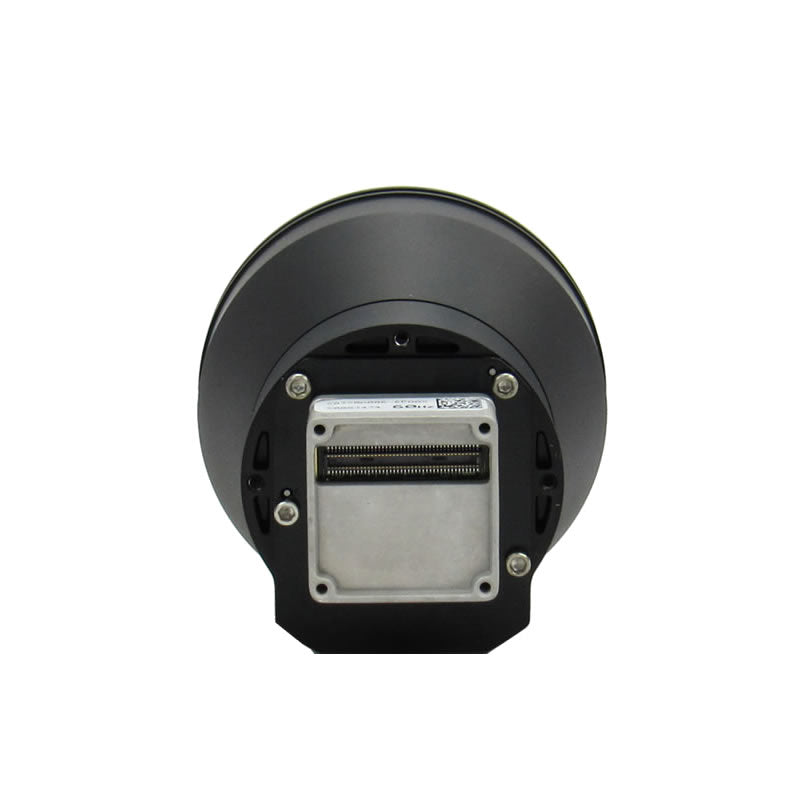

Teledyne FLIR BOSON+ 640 x 512 36mm 12° HFoV - LWIR Thermal Camera Core

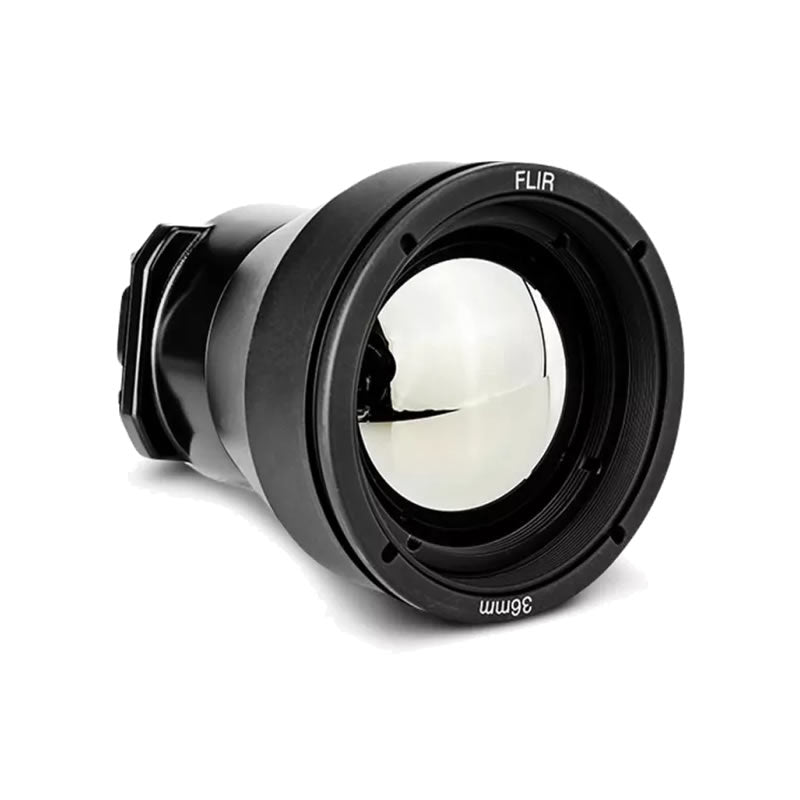

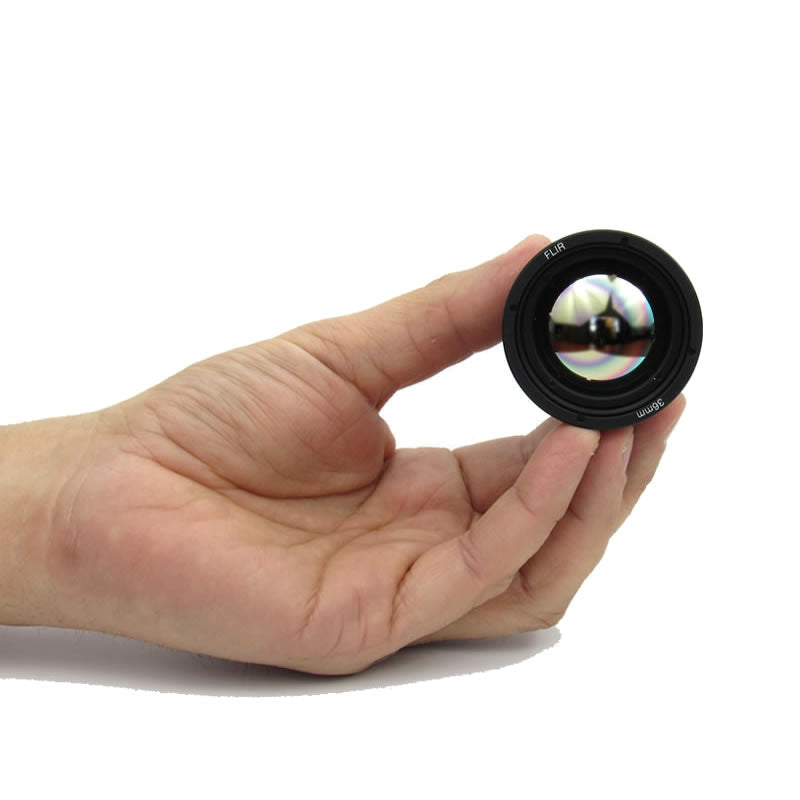

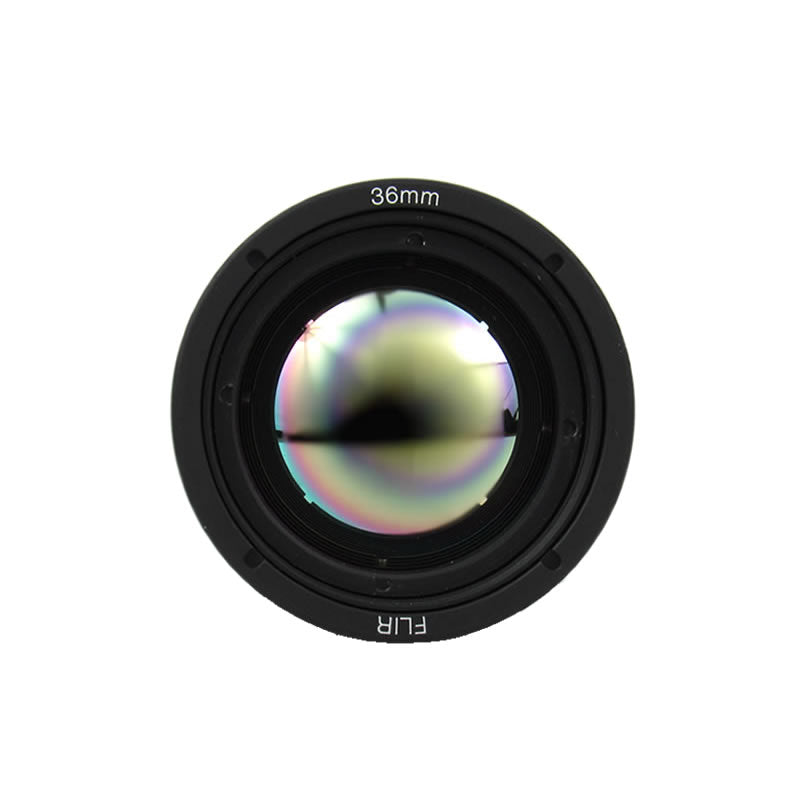

FLIR Boson+ 36mm Lens

High Performance, Uncooled, Longwave Infrared (LWIR) OEM Thermal Camera Module

The Boson longwave infrared (LWIR) thermal camera module sets a new standard for size, weight, power, and performance (SWaP). It utilizes FLIR infrared video processing architecture to enable advanced image processing and several industry-standard communication interfaces while keeping power consumption low. The 12 µm pitch Vanadium Oxide (VOx) uncooled detector comes in two resolutions – 640 x 512 or 320 x 256. It is available with multiple lens configurations, adding flexibility to integration programs.

With a weight as low as 7.5g and a camera body as small as 21 x 21 x 11 mm, the Boson represents an industry-leading reduction in SWaP with no reduction in performance. Advanced embedded processing and video analytics, as well as software-customizable functionality, give this small camera big capabilities, including integration with auxiliary sensors such as third-party cameras, GPS, and IMU.

DRAMATIC REDUCTION IN SIZE, WEIGHT AND POWER (SWaP) WITH NO REDUCTION IN PERFORMANCE

A full-featured VGA thermal camera module at less than 4.9cm³.

• 21 x 21 x 11 mm camera body and weight as low as 7.5g.
• Low power consumption, starting at 500 mW
• 12 µm pixel pitch VOx microbolometer with 320 and 640 resolutions.
• Rugged construction and -40 °C to 80 °C.

POWERFUL INFRARED VIDEO PROCESSING ARCHITECTURE

FLIR infrared video processing with embedded industry-standard interfaces empowers advanced analytics.

• Embedded noise filters, gain control, blending, and more.
• Software-customizable processing and power options.
• Built-in support for interface standards.

WIDE CONFIGURABILITY FOR FASTER DEVELOPMENT AND LOWER COST-TO-MARKET

Unprecedented integration flexibility for fast, affordable developments.

• Custom applications via third-party developers.
• Mechanical/electrical compatibility across versions.
• OEM integration flexibility.
