Videology 21B45 - Mini CMOS Color Day/Night Board Camera

$123.50



• Low power 1/4" CMOS color sensor with ultra wide temperature & vibration spec.
• PAL (true two field) analog composite video output
• Computer controllable via I2C
• Day/Night (optional standard IR-cut filter)

SKU: 21B45

$123.50

Description
Specifications
Downloads

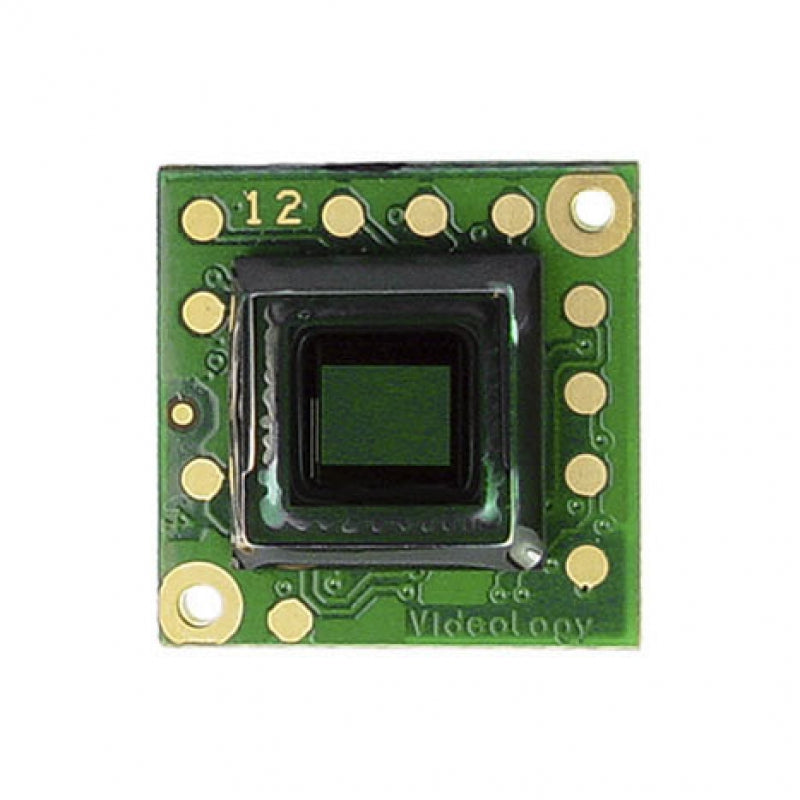

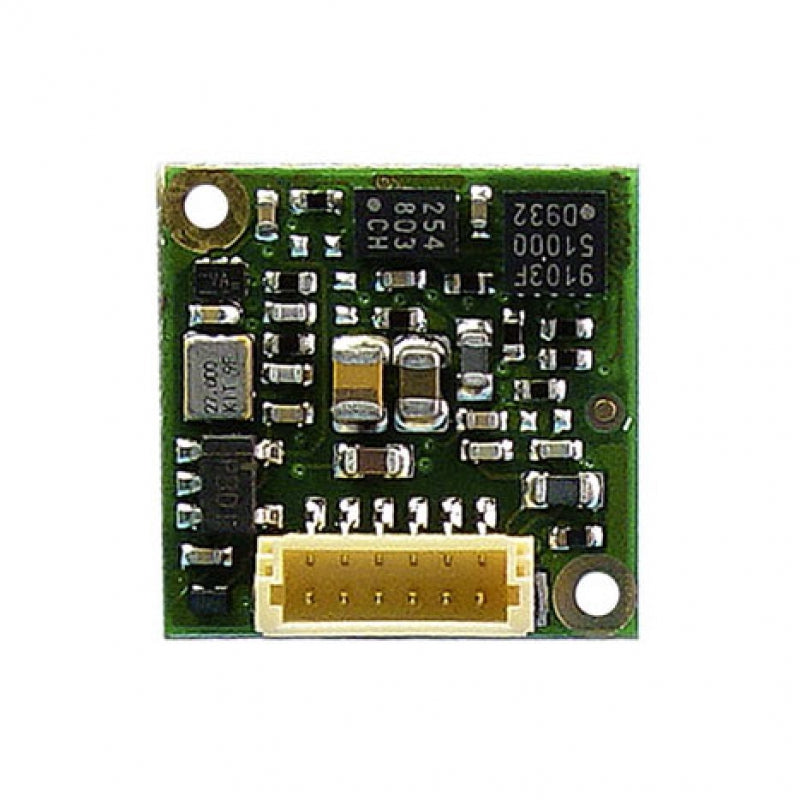

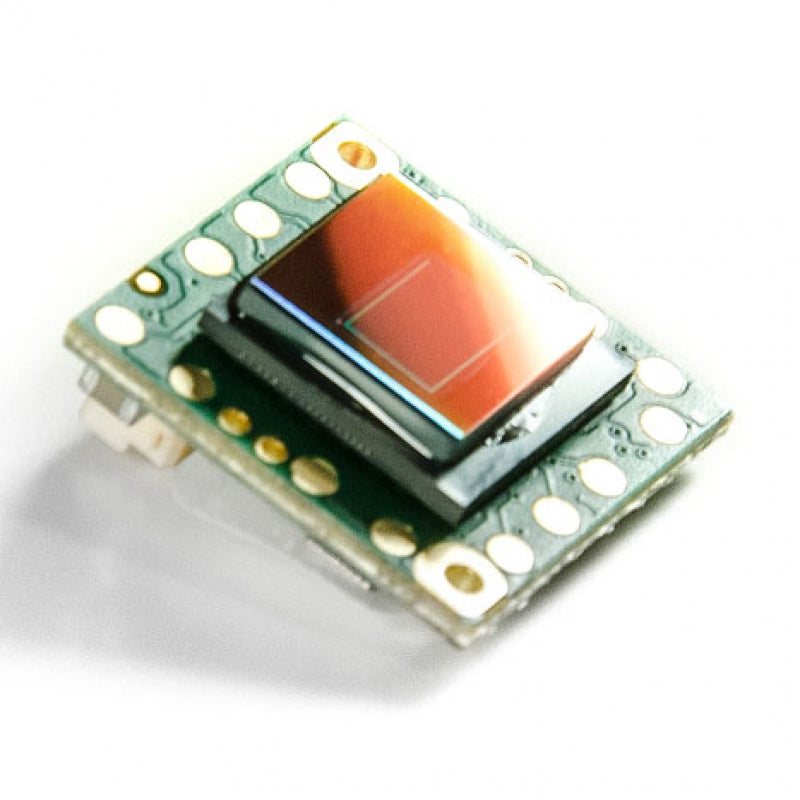

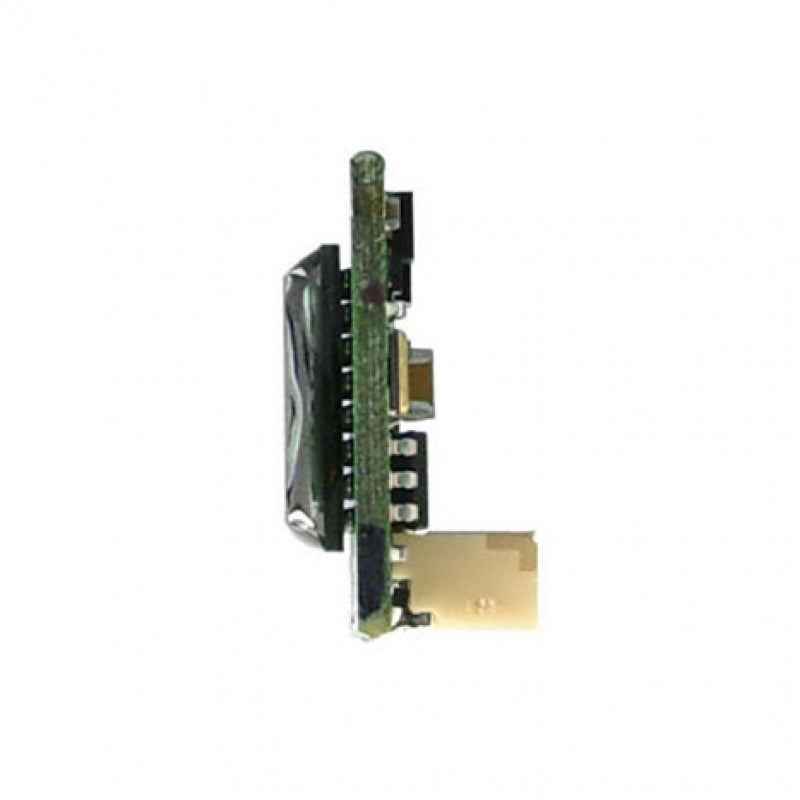

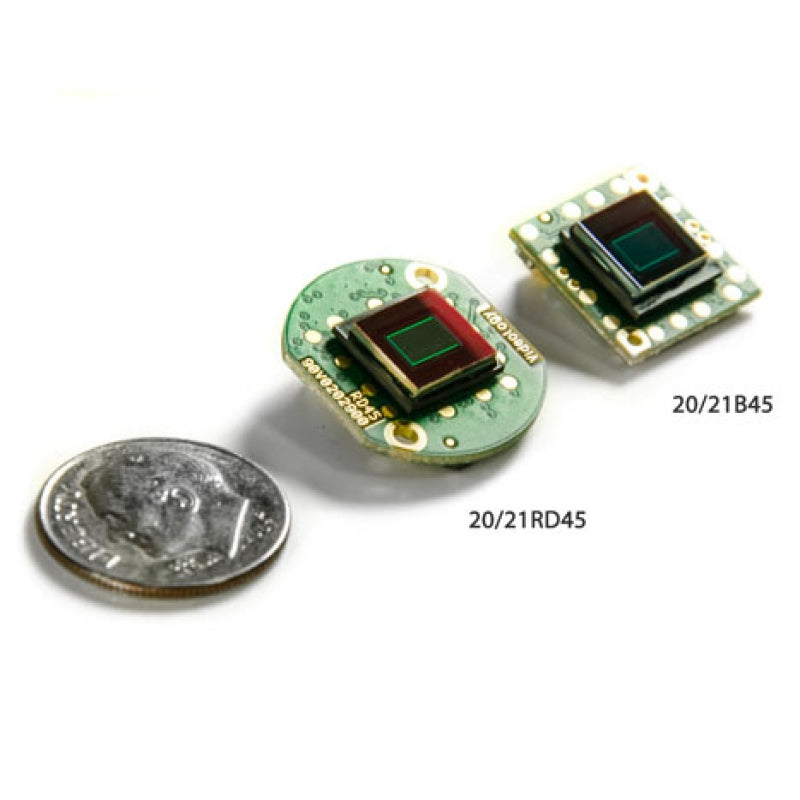

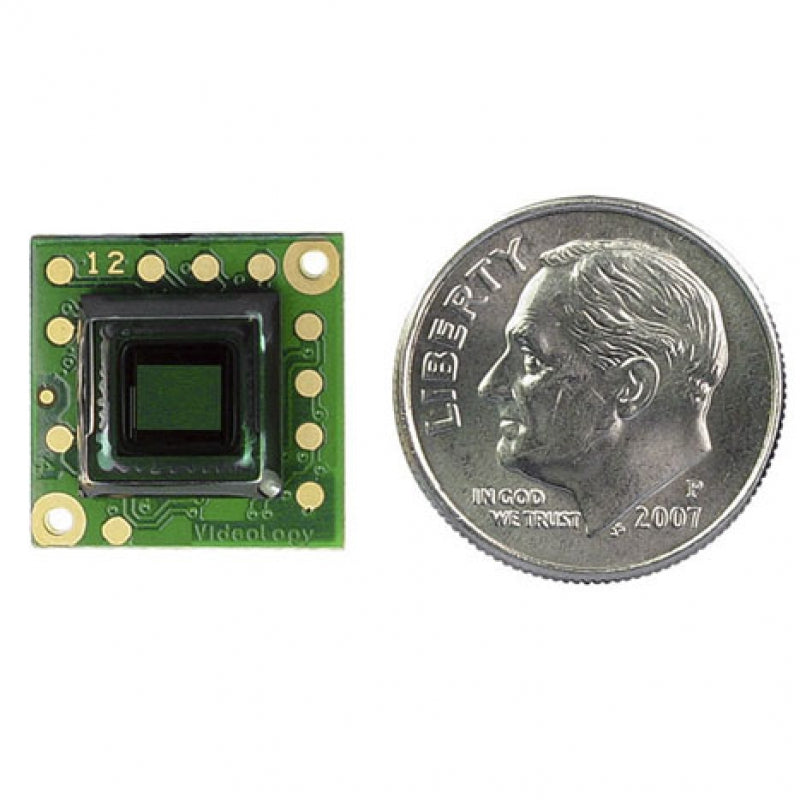

Videology 21B45

Mini CMOS Color Day/Night Board Camera

The Videology 21B45 1/4 CMOS Color Camera stands out as a professional-grade solution equipped with a low-power 1/4" CMOS color sensor that boasts exceptional performance even under extreme conditions due to its ultra-wide temperature and vibration specifications.
This camera offers NTSC/PAL (true two field) analog composite video output, ensuring high-quality video feeds suitable for various professional applications. Moreover, its computer controllability through I2C allows for seamless integration and easy operation within complex systems.

For enhanced versatility, the optional Day/Night feature with a standard IR-cut filter optimizes image quality in both day and night conditions, making the Videology 21B45 a reliable and efficient choice for sensitive monitoring requirements.

Communication

Serial I2C

Dynamic Range

73.4 dB

Dimensions (H x W x L)

14mm x 6.7mm x 14mm (0.55” x 0.26” x 0.55”)

Shutter Speed Control

Auto exposure or fixed

Power Connection

3V – 3.3V (max)

21B45 Datasheet

Download
