Teledyne FLIR BOSON 640 x 512 24.4mm 18° HFoV - Shutterless LWIR Thermal Camera Core

$4,231.00

• Resolution: 640x512 - 18° HFoV
• Shutterless
• 12 µm pixel pitch VOx microbolometer
• 21 x 21 x 11 mm camera body
• Weight as low as 7.5 grams
• Low power consumption, starting at 500 mW
• Rugged construction and highest temperature rating -40 °C to +80 °C




Boson Consumer Grade <60mK NEDT  SKU:21640A018-6CAAX - $4231.00
Boson Professional Grade <50mK NEDT  SKU:21640A018-6PAAX - $5289.00
Boson Industrial Grade <40mK NEDT  SKU:21640A018-6IAAX - $6347.00

Interfaces and Accessories sold separately.

We usually have a majority of these items in stock. Please call or contact us for availability.

SKU: 21640A018-9CAAX

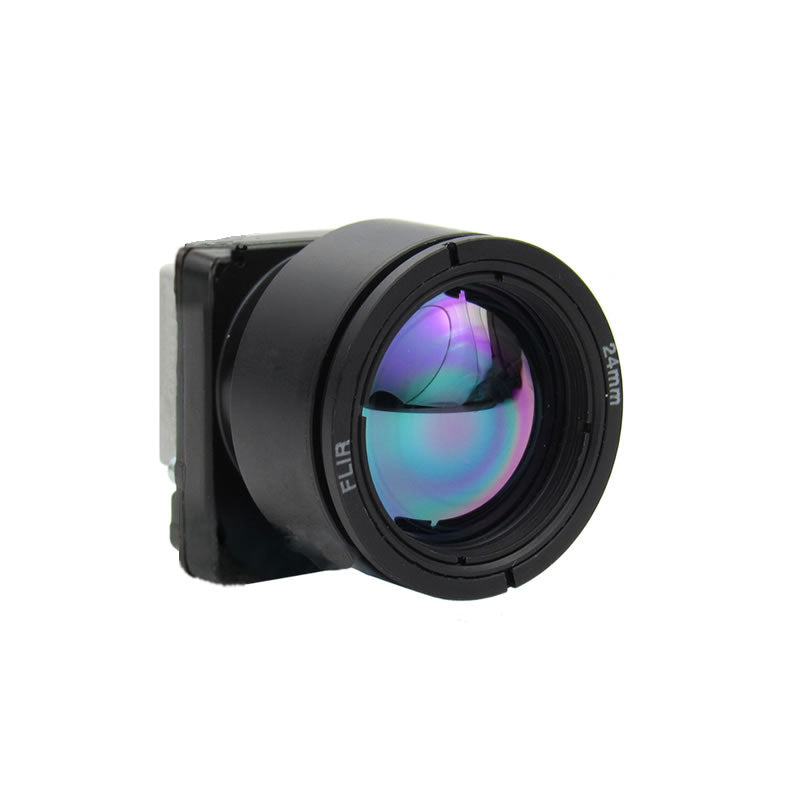

boson-640s-24mm-hero

Teledyne FLIR BOSON 640 x 512 24.4mm 18° HFoV - Shutterless LWIR Thermal Camera Core

$4,231.00

$4,231.00

Description
Specifications
Downloads

FLIR Boson - 24.4mm Lens

Compact LWIR Thermal Camera

The Boson® longwave infrared (LWIR) thermal camera module sets a new standard for size, weight, power, and performance (SWaP). It utilizes FLIR infrared video processing architecture to enable advanced image processing and several industry-standard communication interfaces while keeping power consumption low. The 12 µm pitch Vanadium Oxide (VOx) uncooled detector comes in two resolutions – 640 x 512 or 320 x 256. It is available with multiple lens configurations, adding flexibility to integration programs.

With a weight as low as 7.5g and a camera body as small as 21 x 21 x 11 mm, the Boson represents an industry-leading reduction in SWaP with no reduction in performance. Advanced embedded processing and video analytics, as well as software-customizable functionality, give this small camera big capabilities, including integration with auxiliary sensors such as third-party cameras, GPS, and IMU.

helicopter

DRAMATIC REDUCTION IN SIZE, WEIGHT AND POWER (SWaP) WITH NO REDUCTION IN PERFORMANCE

A full-featured VGA thermal camera module at less than 4.9cm3.

  • 21 x 21 x 11 mm camera body and weight as low as 7.5g.
  • Low power consumption, starting at 500 mW
  • 12 µm pixel pitch VOx microbolometer with 320 and 640 resolutions.
  • Rugged construction and -40 °C to 80 °C.
traffic lanes

POWERFUL INFRARED VIDEO PROCESSING ARCHITECTURE

FLIR infrared video processing with embedded industry-standard interfaces empowers advanced analytics.

  • Embedded noise filters, gain control, blending, and more.
  • Software-customizable processing and power options.
  • Built-in support for interface standards.
person standing

WIDE CONFIGURABILITY FOR FASTER DEVELOPMENT AND LOWER COST-TO-MARKET

Unprecedented integration flexibility for fast, affordable developments.

  • Custom applications via third-party developers.
  • Mechanical/electrical compatibility across versions.
  • OEM integration flexibility.

Resolution

640 x 512

Pixel Pitch

12 µm

Spectral Band

LWIR | 8 µm – 14 µm

Noise Level (NEdT Value

Boson Consumer Grade <60 mK NEdT, Boson Professional Grade <50 mK NEdT, Boson Industrial Grade <40 mK NEdT

Frame Rate Option

<9 Hz Slow Frame Rate, 60Hz default; 30 Hz runtime selectable

Shutter

No

Solar protection

Integral

Continuous Digital Zoom

1X to 8X zoom

Symbology

Re-writable each frame; alpha blending for translucent overlay

Radiometry

No

Scene Dynamic Range

to 140 °C (high gain) to 500 °C (low gain)

Temperature Accuracy

—

Field of View

18° HFoV

Focal Length

24.4mm

Short Lens

No

f-number

f/1.0

Dimensions (L x W x H)

21 × 21 × 11 mm without lens

Weight

7.5 g without lens (configuration dependent)

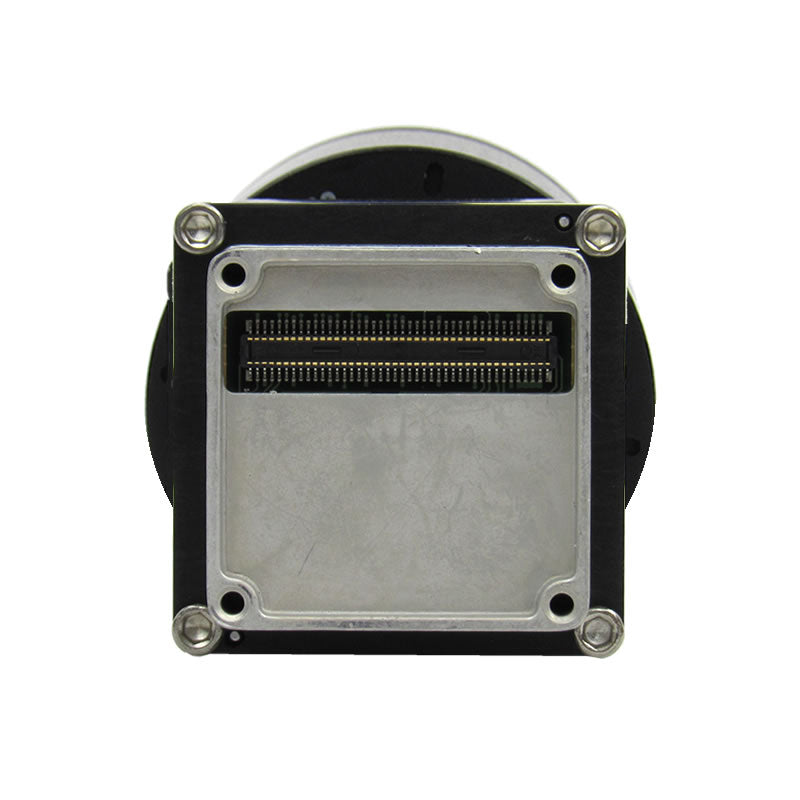

Precision Mounting Holes

Four tapped M1.6 x 0.35 (rear cover). Lens support recommended when lens mass exceeds core mass.

Input Voltage

3.3 VDC

Power Dissipation

Varies by configuration. 320+ as low as 500 mW, 640+ as low as 1000 mW

Video Channels

CMOS or USB2

Control Channels

UART or USB

Configurable GPIO

Up to 11; user configurable

Operating Temperature Range

-40°C to 80°C

Non-Op. Temp. Range

-50 °C to 85 °C (-58 °F to 185 °F)

Shock

1, 500 g @ 0.4 msec

Operational Altitude

12 km (max altitude of a commercial airliner or airborne platform)

Boson Enclosure Compatible

Yes

IDD CAD Data Boson 640SL - 24mm-f1.0

This IDD CAD Data package includes a comprehensive set of design resources, featuring a .STEP file and an accompanying PDF. The .STEP file provides a detailed 3D model that ensures compatibility with various CAD software, facilitating seamless integration into your projects. The PDF offers essential documentation, including specifications, dimensions, and guidelines to help you make the most of the provided CAD data. Download the zip file to access these valuable resources for your design and engineering needs.

Download

Teledyne FLIR Boson Datasheet

Download

Boson Family Brochure

Download
