Videology 20B45M-12 Mini CMOS Color Camera

$142.50

• Low power 1/4" CMOS color sensor with ultra wide temperature & vibration spec.
• NTSC (true two field) analog composite video output
• Computer controllable via I2C
• Day/Night (optional standard IR-Cut filter)

SKU: 20B45M-12

$142.50

Description

Specifications

Downloads

Videology 20B45M-12

Mini CMOS Color Camera

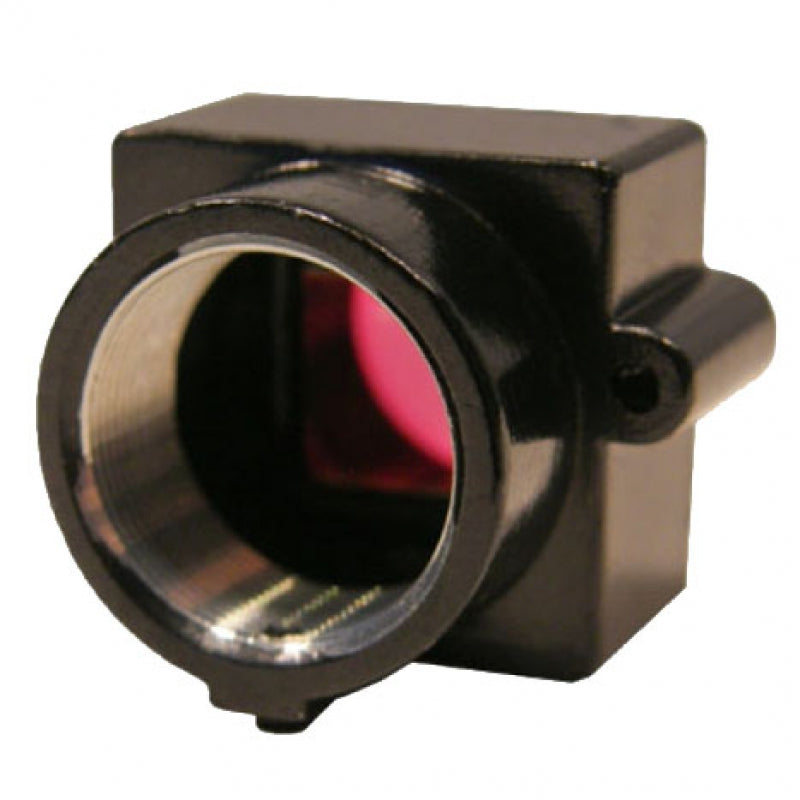

The Videology 20B45M-12 color board camera is a ultra compact board camera with a 14mm x 14mm unenclosed footprint.
The 20B45M-12 color board camera series features a low power 1/4" CMOS and CCD image sensors with ultra wide temperature and vibration specifications. This board camera version weighs in at about 0.5g (0.01 oz) without a lens mount. Active pixel resolution is at 640x480 and a TV resolution of 420 TV lines. Optional models include balanced video output and can be prepared for computer control via I²C.

Communication

Serial I2C

Image Sensor

1/4” CMOS

Dynamic Range

73.4 dB

Shutter Speed Control

Auto exposure or fixed

Power Connection

3V – 3.3V (max)

Gain

Automatic 36 dB (default)

Power Consumption

<150mA

Resolution

420TVL

White Balance

AWB (default) / fixed (selectable via software)

Operating Temperature

-40°C ~ 70°C (-40°F ~ 158°F) @ 3.3V

Synchronization Modes

Internal

Storage Temperature Range

-40°C ~ 90°C (-40°F ~ 194°F)

Storage Humidity

Up to 98% RH

Signal to Noise Ratio

46dB (AGC On)

Gamma

0.45 default

Sensitivity

0.025 lux (50 IRE) F1.2 32000K

Lens Mount

M-12 mount (lens not included)

Scan Mode

Interlaced

Mirror Mode

Yes (selectable via software)

Shutter

Electronic rolling shutter

Pixel Size

5.6μm x 5.6μm

Weight

6.9g (0.24 oz)

Back Light Compensation

Default Off

Pixel Format

640 x 480

Contour Enhancement

Default on

Iris Control

Electronic (No DC signal)

Dimensions (L x W x H)

17mm x 12mm x 16.4mm (0.67” x 0.47” x 0.64”)

Video Outputs

CVBS (75 Ohms) Balanced video output (optional)
