PT-Series Accessories

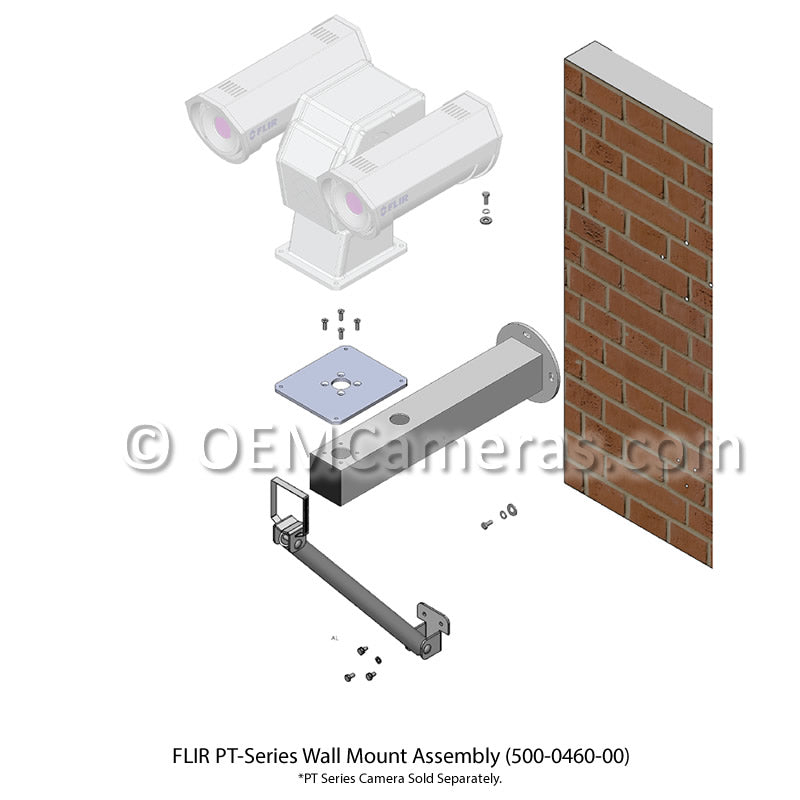

PT-Series & F-Series Wall Mount

High capacity pole mount for pole diameters between 150mm-230mm

Teledyne FLIR PT-Series Wall Mount

Kit Contents:

• PT-Series pedestal mount 4119497 PT-Series adapter plate 4119468
• 6 each 1/4-20 FHMS x 3/4” Hex, S.S. 6 each 5/16-18 x 3/4 SHCS, S.S.
• 6 each 5/16 split washer
• 6 each 5/16 flat washer
• Two extra pieces of each attaching part

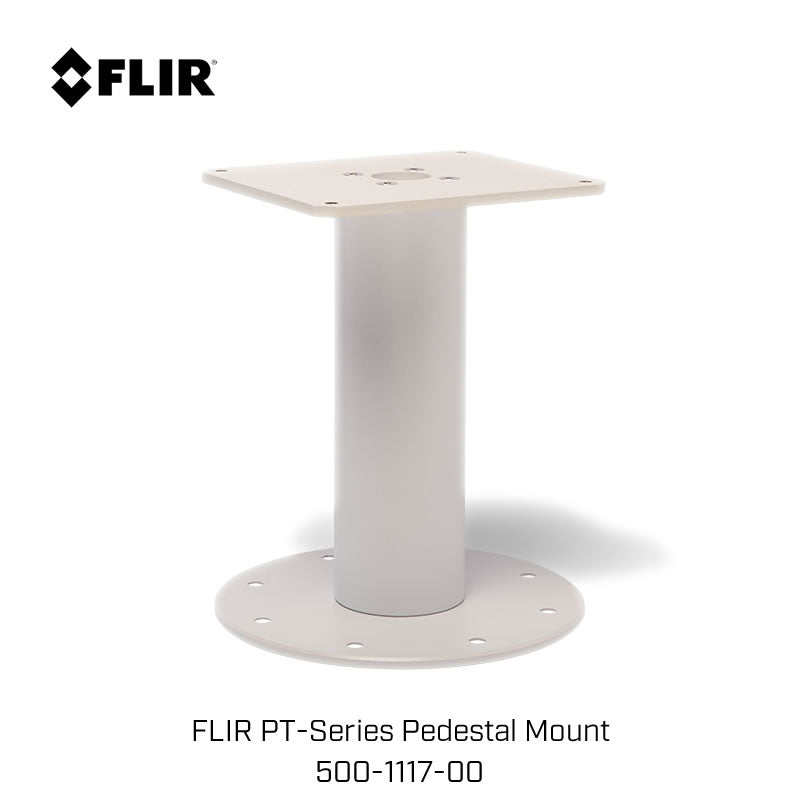

The Teledyne FLIR PT-Series pedestal mount (4119497) and adapter plate (4119468) are designed for use with medium- to heavy-duty pan and tilt units and will safely support loads up to 125 pounds (57 kg). The mount is constructed of aluminum and has a gray polyester powder coat finish.

Side Mount Payload Bracket (1)
Side-mounting payload bracket for the PTU-5 pan tilt. Up to 3 lb capacity per side, 6 lb total with two side brackets. Side bracket use requires removal of the PTU-5 top bracket. (Side and top brackets cannot be used together at the same time.)

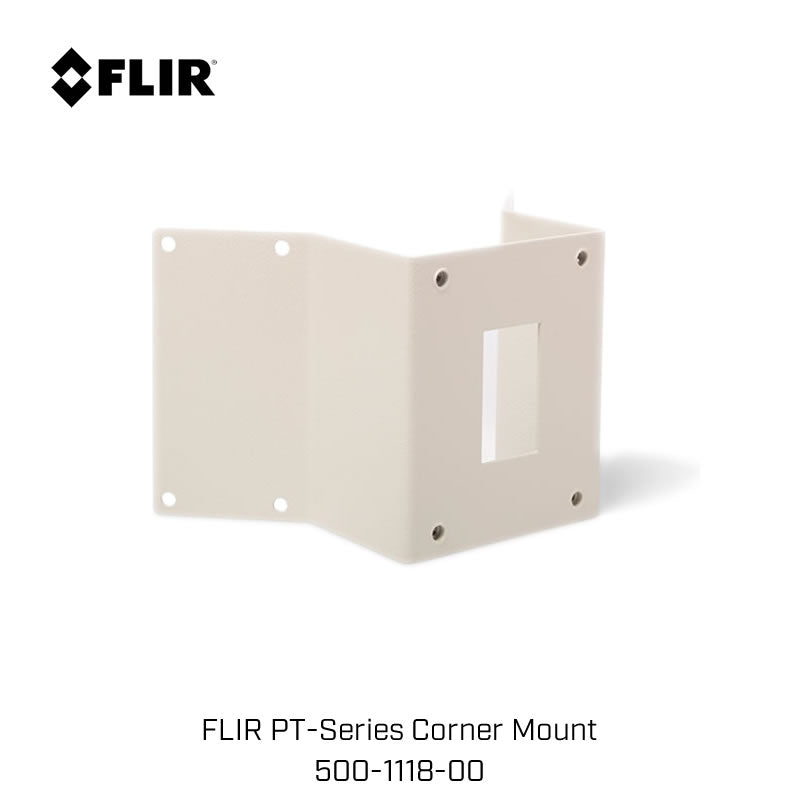

Teledyne FLIR PT-Series Corner Mount High capacity corner mount

Part Number: 500-1118-00

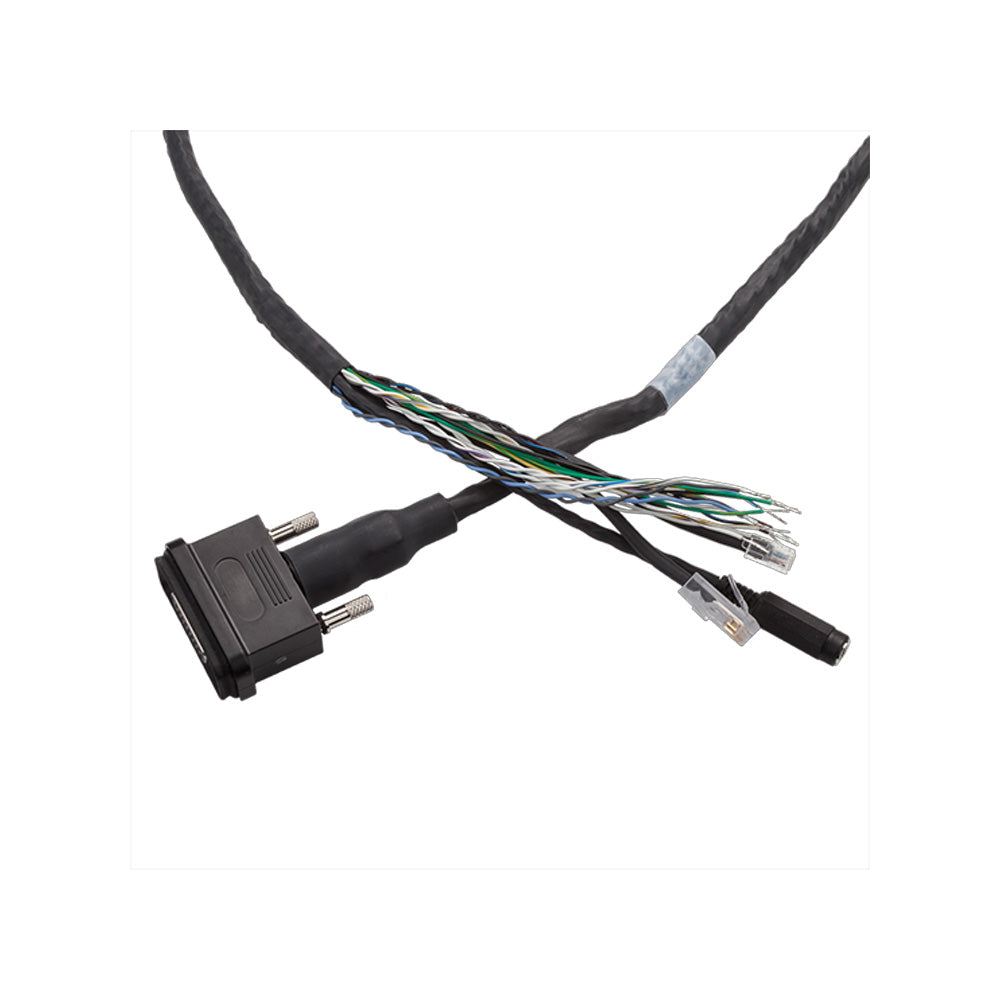

Interface cable to AC power and host computer.

Available in 3′, 10′ 25′ or 50′.

Interface cable to AC power and host computer.

Available in 3′, 10′ 25′ or 50′.

Interface cable to AC power and host computer.

Available in 3′, 10′ 25′ or 50′.

Interface cable to AC power and host computer.

Available in 3′, 10′, 25′ or 50′.
