Teledyne FLIR PTU-5 High Performance Pan-Tilt Unit
$3,550.00
Unit price per
$3,550.00
Unit price perFLIR PTU-5
PAN/TILT FOR TOP-MOUNTED PAYLOADS UP TO 5 LBS
Standing only six inches tall when fully integrated, the new FLIR PTU-5 can hold up to five pounds on its top bracket, packing incredible performance into a compact package. Even with its small size the PTU-5 is more accurate than many other – more expensive – systems thanks to the absolute encoders used on the drive axes.
Fully sealed and weatherproof rated to IP67, the PTU-5 can be used anywhere, even outdoors. By doing away with the separate controller box, and including a unique ability to home the axes without returning to zero, the PTU-5 is easy to set-up and has a fast start-up sequence. PTU-5 is the lightweight, low-cost, easy to integrate pan/tilt solution demanding OEM integrators have been looking for.
Big Performance, Small Package
Turn on and track moving targets in seconds with accuracy and repeatability to 0.1°, and Pan speeds up to 150 degrees per second.
Lightweight, MIL-spec system for harsh environments, an integrated micro controller - so no extra boxes are needed -- plus it's weatherproof and IP67 certified.

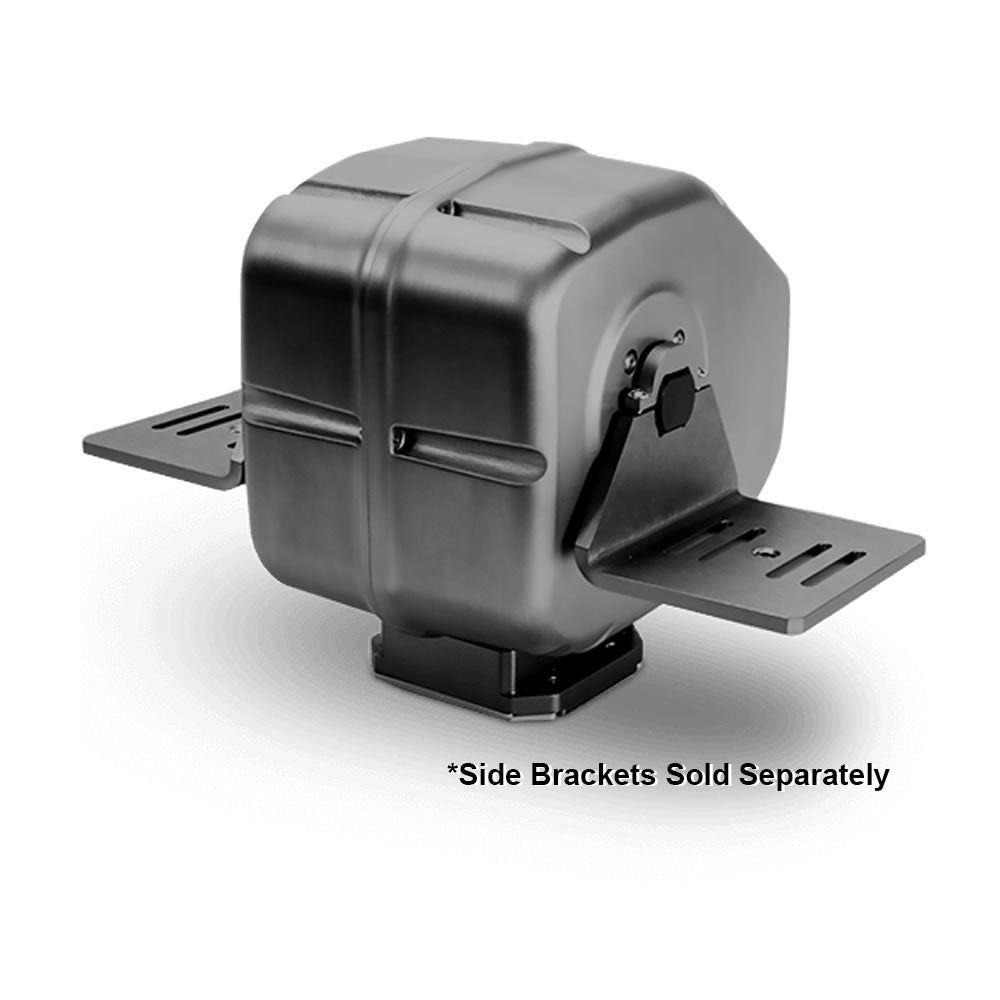

Featuring flexibility for a wide range of applications and sensors, a slip ring enabling continuous rotation, and top or side bracket options.

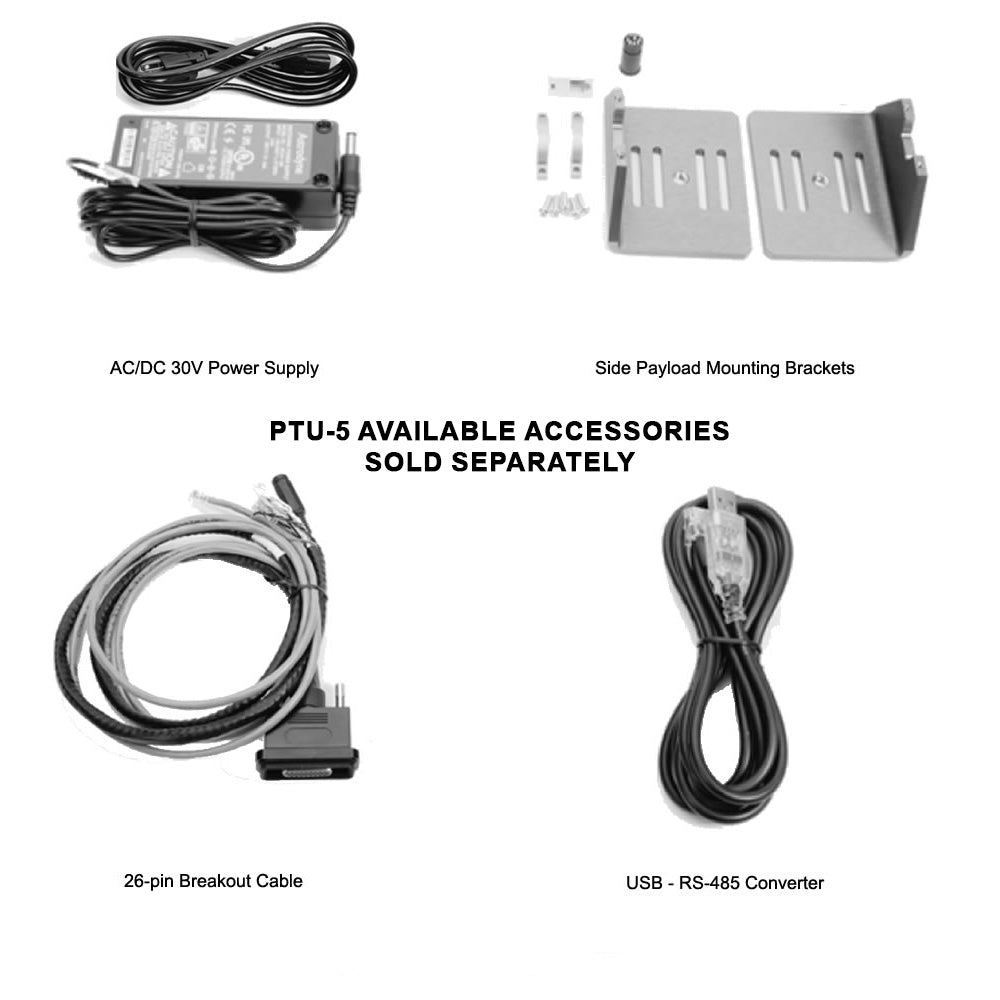

| Included | Sold Separately | ||||
|---|---|---|---|---|---|
| TOP MOUNTING BRACKETS (TMB) | TOP PAYLOAD CAPACITY | SIDE MOUNTING BRACKETS (SMB) | SIDE PAYLOAD CAPACITY | TOTAL PAYLOAD CAPACITY | BRACKET NOTES |
| Included | 5 lbs / 2.2 kg | 1 or 2 Side Mount Brackets can be purchased & installed |
6 lbs / 2.7 kg | The combined weight of top and side payloads (if using both) cannot exceed the side payload capacity rating |
Top & side brackets cannot be used together — the bracket clamp allows only one type at a time |
