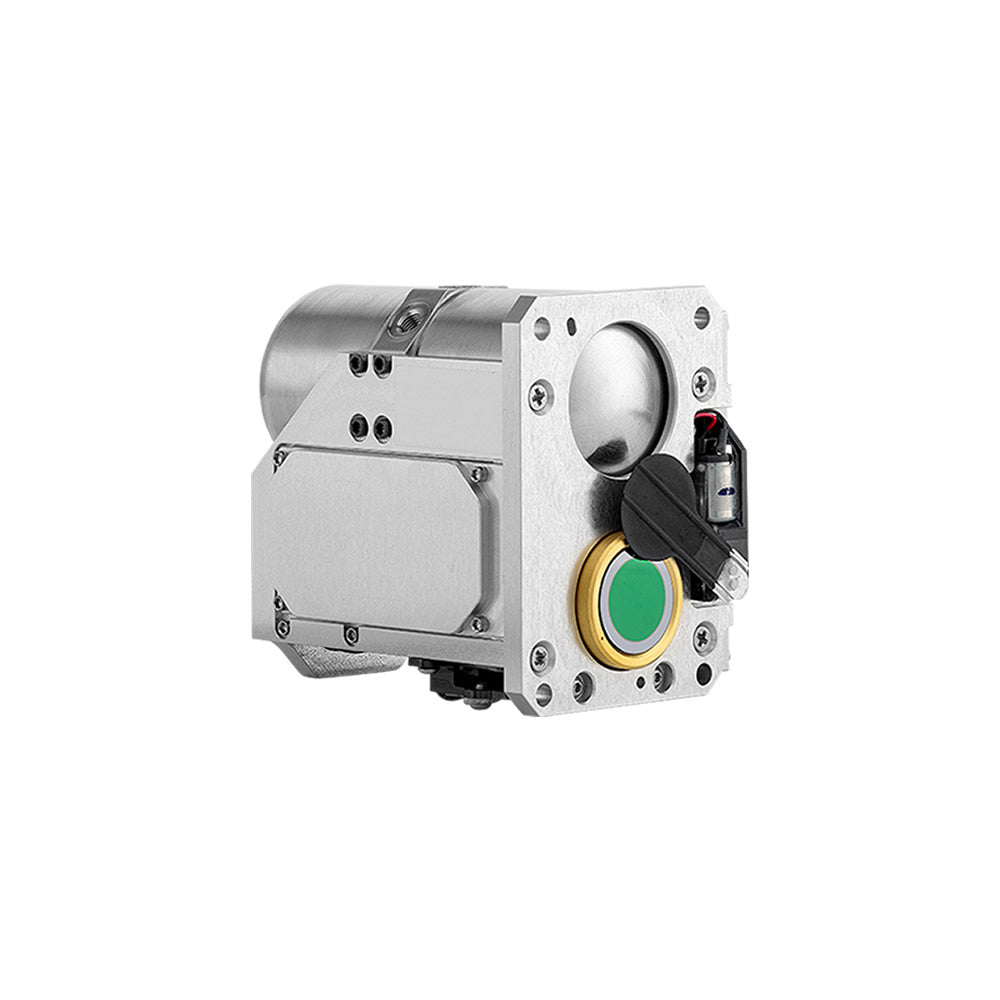

Teledyne FLIR Neutrino SX8 - CZ 15-300 HOT MWIR Camera Module + Continuous Zoom Lens
$0.00
Unit price perTeledyne FLIR Neutrino SX8 - CZ 15-300 HOT MWIR Camera Module + Continuous Zoom Lens
$0.00
Unit price perNeutrino SX8 - CZ 15-300
HOT MWIR Camera Module + Continuous Zoom Lens
Neutrino IS series combines Teledyne FLIR’s world-class mid-wavelength infrared (MWIR) OEM camera modules and continuous zoom (CZ) lenses to offer high–performance imaging solutions with various FPA resolutions and CZ zoom/FOV ranges. Neutrino IS lowers development and manufacturing risk and improves time-to-market. Cutting-edge HOT FPAs, long life and low vibration linear coolers, common camera interfaces, and fully athermalized lenses make for the best-in-class solution. Each camera module and lens are designed for each other, providing optimal performance not achievable when buying and integrating cameras and lenses from multiple sources.
Teledyne FLIR Neutrino IS series is simply the best technical solution available. With nearly off-the-shelf delivery, industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it offers the lowest risk solution. The Neutrino IS is an OEM camera module that is intended to be integrated into a higher level system.
SWAP+C OPTIMIZED SENSOR ENGINE
SWaP+C optimized design saves space, weight, and power, resulting in operational and cost benefits and the ability to integrate into smaller spaces.
- HOT MWIR Sensor Technology provides superb MWIR imagery
- Tight optics-to-camera tolerances minimize optics size and mass
- Best-in-class power consumption
RELIABLE LINEAR COOLER
Designed from the ground up for optimum performance and reliability minimize cost of ownership and maximize operational uptime
- Increased reliability and low vibration
- 2x faster time to image
- Reduce user fatigue and operate for longer periods
- Comprehensive product documentation
MARKET LEADING THERMAL OPTICS
Integrated SWaP optimized lens provides instant clear imaging able to withstand every rugged environment.
- Smooth continuous zoom
- Precision aligned camera and lens with a collimator and sophisticated test equipment
- Highly qualified Teledyne FLIR Technical Services team available to support integration
Neutrino™ SWaP+C Series
Neutrino SX8, f/4, with Shutter
The newly-released SXGA-resolution Neutrino SX8 provides best-in-class MWIR imagery and data in a small, lightweight package. Based on Teledyne FLIR’s High Operating Temperature (HOT) FPA technology and linear micro-cooler, SWaP series OEM camera modules are designed for ruggedized products requiring long life, low-power consumption, and quiet, low-vibration operation. Ideal for small gimbals and airframes, handheld devices, security cameras, targeting devices, and asset monitoring applications.
The Neutrino SWaP Series is simply the best technical solution available. With nearly off-the-shelf delivery (ITAR free), industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it also offers the lowest risk solution. The Neutrino SWaP is an OEM camera module that is intended to be integrated into a higher level system.
MULTIPLE RESOLUTION SWAP OPTIMIZED MWIR CAMERA CORES
SXGA/8 µm HOT FPA camera modules in a SWaP-optimized envelope offer low-power consumption, rugged construction, and a wide operating temperature range.
- HOT MWIR Sensor Technology provides superb imagery, 2x faster time to image, and longer cooler lifetime
- Small and light at 7.4 x 4.5 x 6.1 cm and <420 grams
- Low power consumption with <8 W cool down and <4 W steady state @21°C
- Rugged construction and wide operational temperature range of -40°C to +71°C
- Quiet and low vibration operation
DESIGNED FOR INTEGRATORS
Small, light, and powerful, the Neutrino SWaP Series camera modules come with common interfaces and support documentation/accessories to shorten time-to-market and reduce project risk.
- Built-in support for physical and protocol-level industry standards (e.g. USB2)
- Full suite of hardware accessories
- FLIR XIR™ expandable infrared video processing architecture and robust SDK
- Classified under US Department of Commerce jurisdiction as EAR 6A003.b.4.a
PERFORMANCE, RELIABILITY, AND SUPPORT
The Neutrino SWaP Series cameras offer best-in-class image quality, an industry-leading two-year warranty, superior SWaP performance, high reliability, long lifetime, and come with Teledyne FLIR’s well-known product support.
- Industry’s most advanced SWaP+C optimized image processing
- Increased reliability and low-vibration FLIR linear micro-cooler
- Optional integrated shutter provides faster time to image
- Comprehensive product documentation
- Highly-qualified FLIR Technical Services

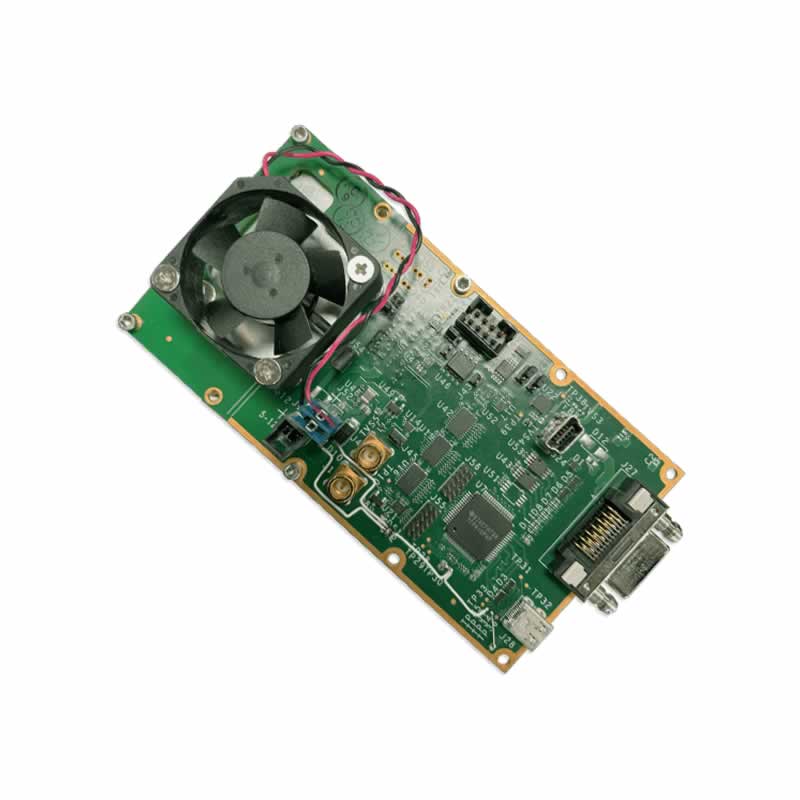

The Utility Kit provides Camera link and HDMI video output to a single development electronics board.
The kit includes a wire harness for camera and cooler power. Communication and power to the Neutrino SX8 camera electronics is provided via a USB driver to a virtual COM port.
External sync input/output signals are provided with standard MCX connectors. A header connector is provided for RS-422 lens control.
Neutrino SWaP+C Series
Neutrino SX8, f/2.5, with Shutter
The newly-released SXGA-resolution Neutrino SX8 provides best-in-class MWIR imagery and data in a small, lightweight package. Based on Teledyne FLIR’s High Operating Temperature (HOT) FPA technology and linear micro-cooler, SWaP series OEM camera modules are designed for ruggedized products requiring long life, low-power consumption, and quiet, low-vibration operation. Ideal for small gimbals and airframes, handheld devices, security cameras, targeting devices, and asset monitoring applications.
The Neutrino SWaP Series is simply the best technical solution available. With nearly off-the-shelf delivery (ITAR free), industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it also offers the lowest risk solution. The Neutrino SWaP is an OEM camera module that is intended to be integrated into a higher level system.
MULTIPLE RESOLUTION SWAP OPTIMIZED MWIR CAMERA CORES
SXGA/8 µm HOT FPA camera modules in a SWaP-optimized envelope offer low-power consumption, rugged construction, and a wide operating temperature range.
- HOT MWIR Sensor Technology provides superb imagery, 2x faster time to image, and longer cooler lifetime
- Small and light at 7.4 x 4.5 x 6.1 cm and <420 grams
- Low power consumption with <8 W cool down and <4 W steady state @21°C
- Rugged construction and wide operational temperature range of -40°C to +71°C
- Quiet and low vibration operation
DESIGNED FOR INTEGRATORS
Small, light, and powerful, the Neutrino SWaP Series camera modules come with common interfaces and support documentation/accessories to shorten time-to-market and reduce project risk.
- Built-in support for physical and protocol-level industry standards (e.g. USB2)
- Full suite of hardware accessories
- FLIR XIR™ expandable infrared video processing architecture and robust SDK
- Classified under US Department of Commerce jurisdiction as EAR 6A003.b.4.a
PERFORMANCE, RELIABILITY, AND SUPPORT
The Neutrino SWaP Series cameras offer best-in-class image quality, an industry-leading two-year warranty, superior SWaP performance, high reliability, long lifetime, and come with Teledyne FLIR’s well-known product support.
- Industry’s most advanced SWaP+C optimized image processing
- Increased reliability and low-vibration FLIR linear micro-cooler
- Optional integrated shutter provides faster time to image
- Comprehensive product documentation
- Highly-qualified FLIR Technical Services
Neutrino SWaP+C Series
Neutrino SX8, f/3, with Shutter
The SXGA-resolution Neutrino SX8 provides best-in-class MWIR imagery and data in a small, lightweight package. Based on Teledyne FLIR’s High Operating Temperature (HOT) FPA technology and linear micro-cooler, SWaP series OEM camera modules are designed for ruggedized products requiring long life, low-power consumption, and quiet, low-vibration operation. Ideal for small gimbals and airframes, handheld devices, security cameras, targeting devices, and asset monitoring applications.
The Neutrino SWaP Series is simply the best technical solution available. With nearly off-the-shelf delivery (ITAR free), industry-leading two-year warranty, real price competitiveness and well-known product support and product reliability, it also offers the lowest risk solution. The Neutrino SWaP is an OEM camera module that is intended to be integrated into a higher level system.
COMPACT AND CONFIGURABLE
The High Operating Temperature (HOT) FPA offers low power consumption, rugged construction and a wide operating temperature.
- HOT MWIR Sensor Technology provides superb imagery, 2x faster time to image, and longer cooler lifetime
- Small and light at 7.4 x 4.5 x 6.1 cm and 370 grams
- Low power consumption with <8 W cool down and <4 W steady state @21°C
- Rugged construction and wide operational temperature range of -40°C to +71°C
- Quiet and low vibration operation
DESIGNED FOR INTEGRATORS
Small, light, and powerful, the Neutrino LC produces superb thermal imagery using a HOT 640 × 512 15µm FPA, while weighing in at only 370 grams.
- Built-in support for physical and protocol-level industry standards (e.g. USB2)
- Full suite of hardware accessories
- FLIR XIR™ expandable infrared video processing architecture and robust SDK
- Classified under US Department of Commerce jurisdiction as EAR 6A003.b.4.a
PERFORMANCE, RELIABILITY, AND SUPPORT
The Neutrino LC offers increased reliability and low-vibration linear micro-cooler, faster time to image and FLIR reliability and support.
- Industry’s most advanced SWaP+C optimized image processing
- Increased reliability and low-vibration FLIR linear micro-cooler
- Optional integrated shutter provides faster time to image
- Comprehensive product documentation
- Highly-qualified FLIR Technical Services
