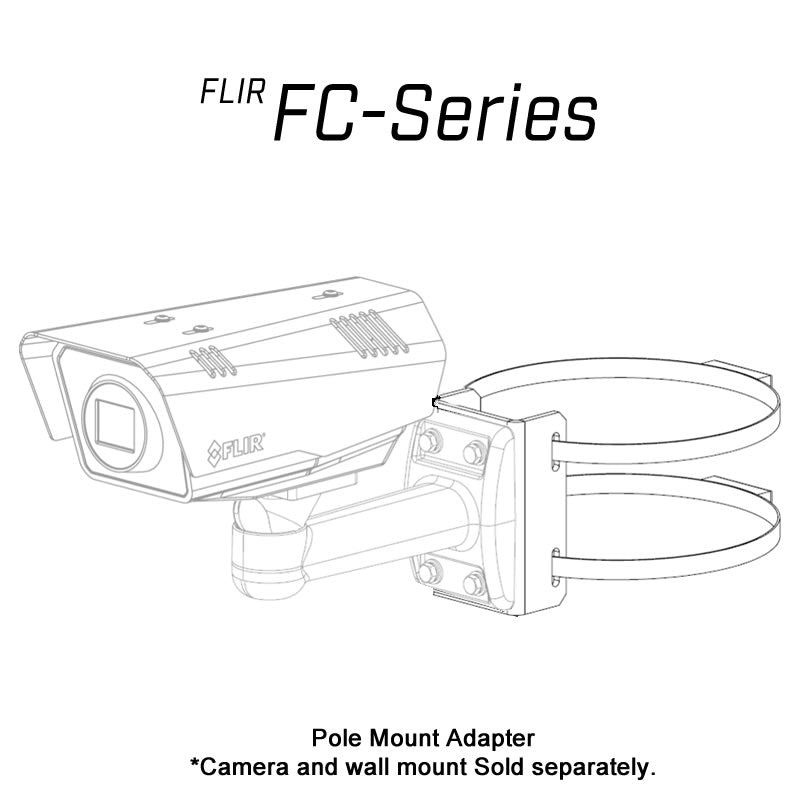

The FC-Series Wall Mount can be fixed to a Pole with this Pole Mount Accessory.
If the camera is mounted on a pole, an Ethernet cable should run at least to the bottom of the pole, so a laptop could be temporarily connected directly to the camera.

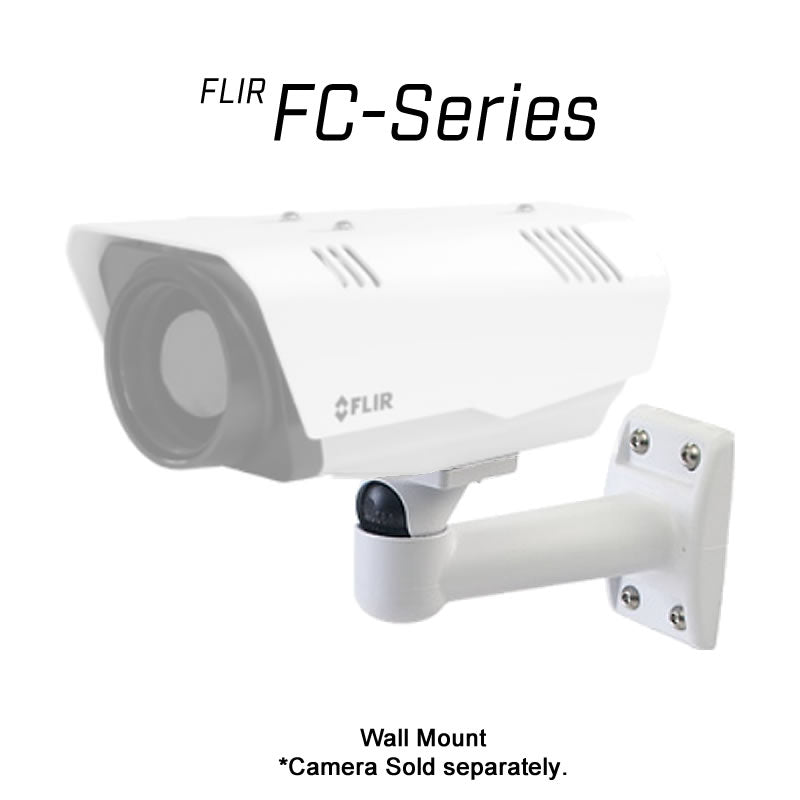

FC Series Wall mount
4129742
The FC-Series cameras are an infrared thermal imaging camera intended for outdoor security applications, and can be installed in a fixed location or on a pan/tilt mechanism. The FC-Series cameras are intended to be mounted on a medium-duty fixed wall mount commonly used in the security industry.
This camera mount supports up to 5.4 lbs (2.5 kg). Cables may exit from the back of the camera housing through the supplied cable gland or from the bottom of the camera housing when using the concealed cable wall mount
A cable gland plug is supplied for the rear of the camera housing when cables are routed using the concealed cable wall mount.

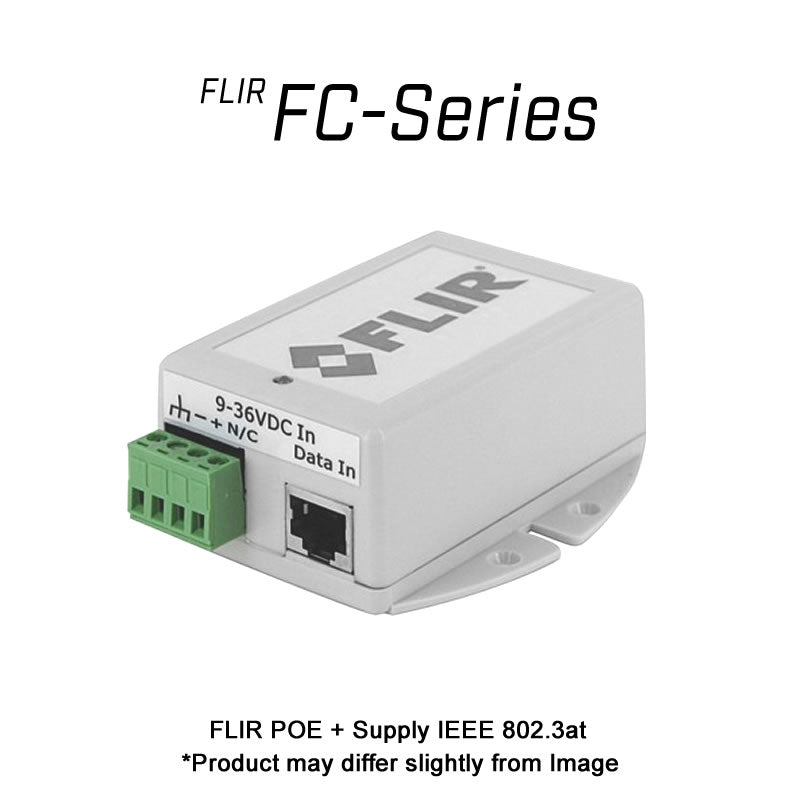

FLIR FC Series POE + Supply IEEE 802.3AT
4210755
The FC-Series ID camera can be powered using Power over Ethernet Plus (PoE+) or with a conventional 24 Vac or 24 Vdc power
supply. For a PoE+ connection, PoE+ power supply (PN 4132391, also called a PoE+ injector) is available if the camera is not connected to a PoE+ switch.
The maximum Ethernet cable run is 100 meters including the PoE+ power supply. In installations using PoE+ power and IP video, only a single Ethernet cable from the camera is required.

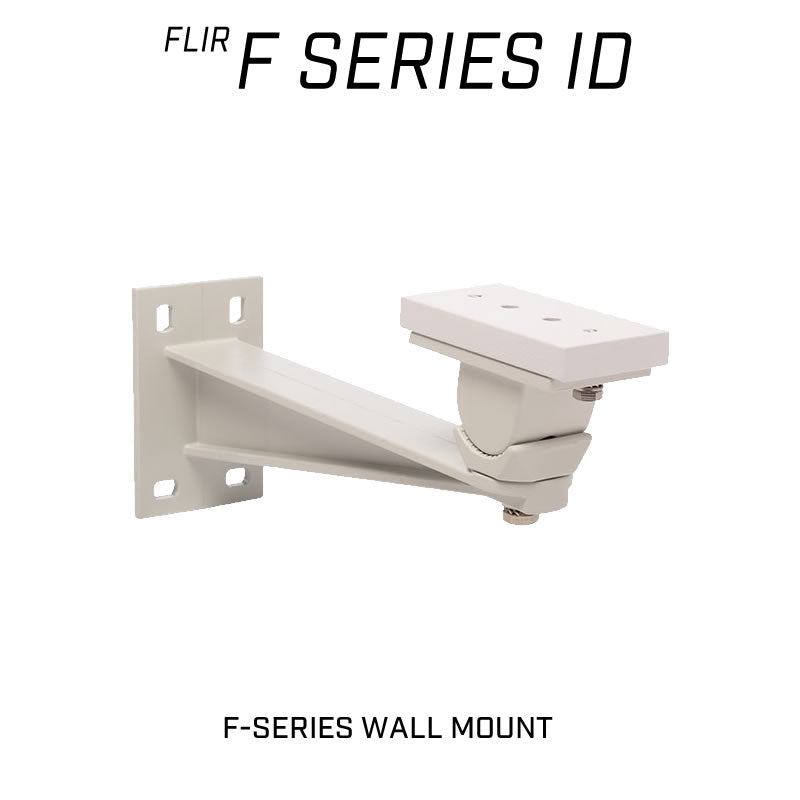

F-Series Wall Mount for the FLIR Triton™ F-Series ID
Part Number 500-1123-00

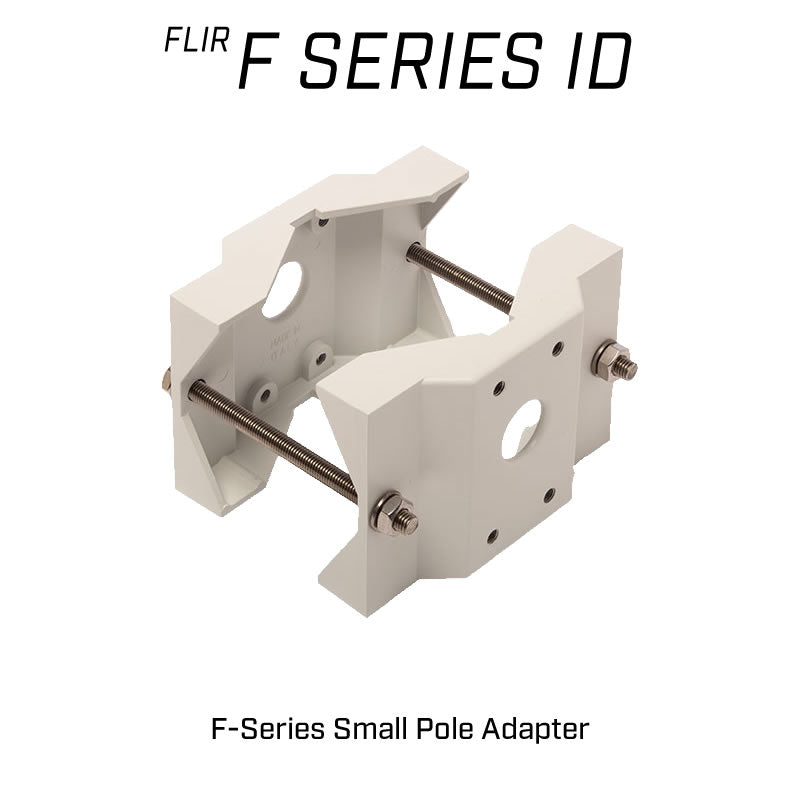

F-Series Small Pole Adapter
For pole diameters between 65mm-110mm

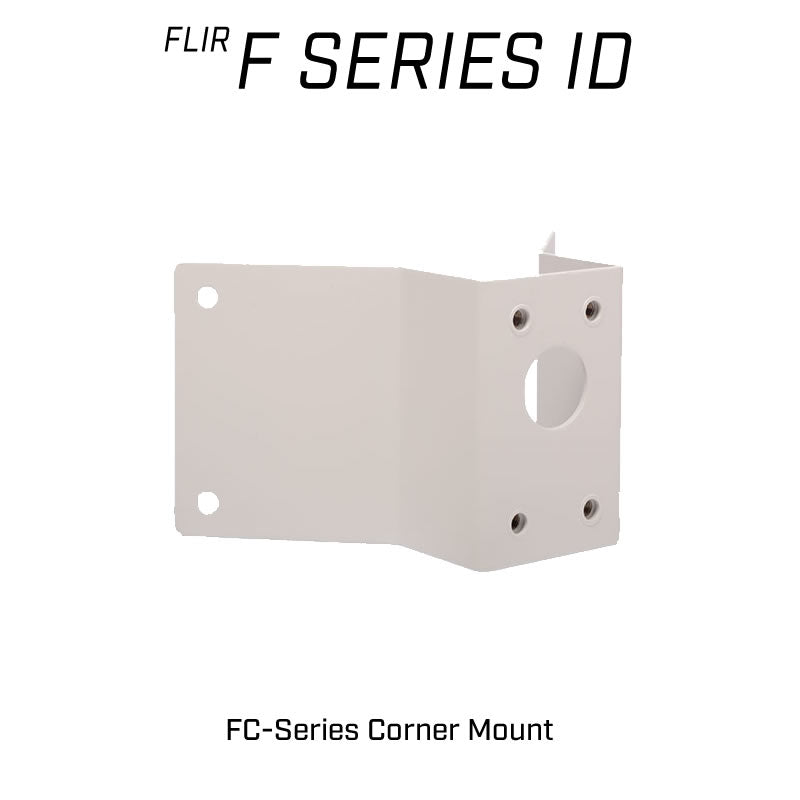

F-/FC Series Corner Mount
Part Number 500-1119-00
For use with:
- TRITON™ F-SERIES ID
- ELARA™ FC-SERIES O
- ELARA™ FC-Series R
- ELARA™ FC-SERIES ID

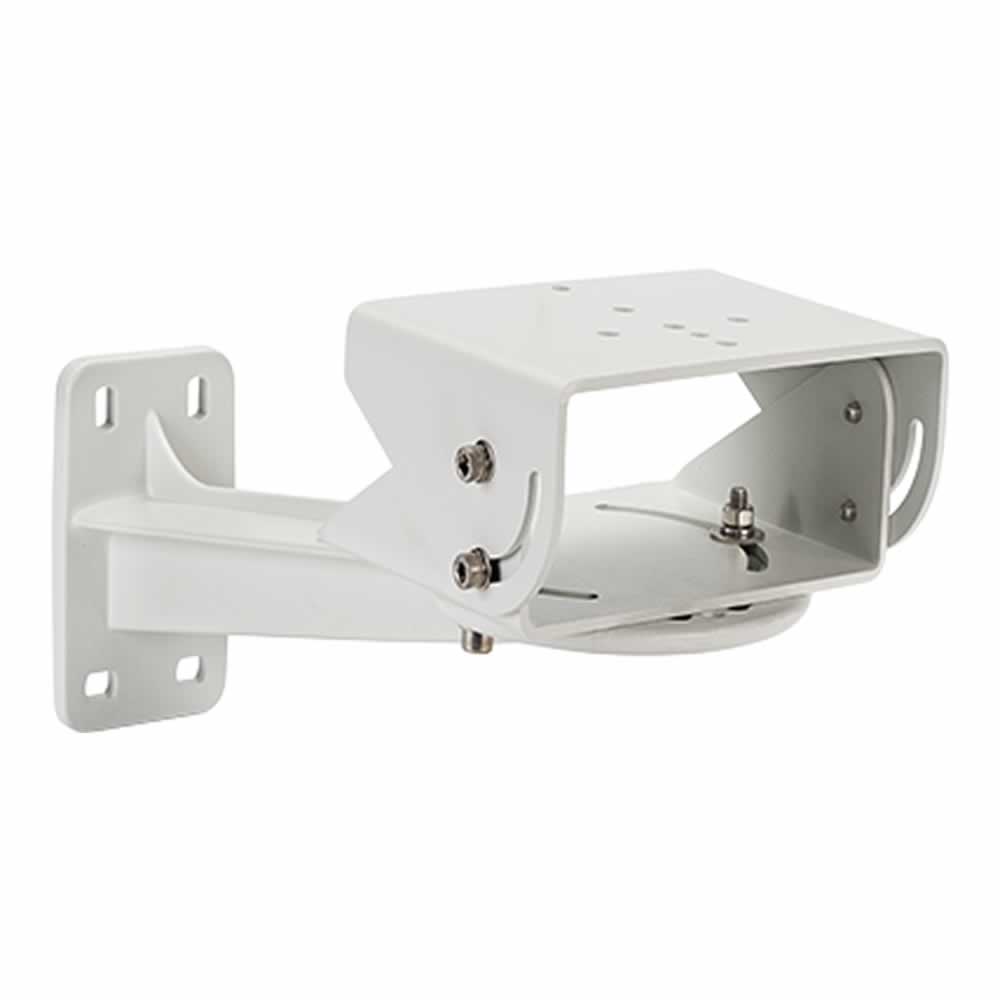

Simplify camera setup with the Teledyne FLIR FH Series Wall Mount Kit, offering a reliable and efficient solution for mounting the FH Series Thermal Cameras.
This wall mount kit is thoughtfully engineered to provide a secure and flexible installation option, allowing you to position your cameras at the desired height and angle.
Its robust construction ensures long-lasting performance, guaranteeing a stable and unobtrusive solution for all your mounting requirements.
