Analog

The all new High Definition RHPC-HD10 (DCC-SC01HD32 / VPC-HD10) HD board camera is an ultra compact board camera with brilliant 1280x720p HD video quality. This advanced board camera comes standard with an Analog Component (Y/Pb/Pr) video output and RGB video output.

The RHPC-HD10 HD board camera features a 42mm x 42mm footprint unenclosed, 50/60fps (selectable), a 1/3" CMOS (1.3 Megapixel) image sensor, On Screen Display, Slow Shutter, Digital Zoom and more, this HD board camera is perfect for applications requiring 16:9 720p video.

Also note, C/CS lens mounts are also available allowing the attachment of high quality lenses to the RHPC-HD10 HD board camera.

Board Camera Features

• 42mm (W) x 42mm (L) x 34mm (H) Form Factor
• Compact HD board camera
• 1/3 '' CMOS 1.3MP Image Sensor
• 1280 x 720 Resolution
• 50 or 60 Frames Per Second (selectable)
• HD Analog Component: Y/Pb/Pr Video Output
• HD Analog RGB Video Output
• > 600 TV Lines
• RS-232C Controllable
• On Screen Display Setup
• Slow Shutter Functionality
• Digital Zooming Available
• 9-15 Volts DC
• Video Iris Control
• Weighs only 1.5oz (42 grams)

RHPC-650

The RHPC-650 surveillance camera boasts a high-performance 1/3" 960H SONY EXview HAD CCD ll sensor, delivering sharp and clear images at a remarkable 750TVL horizontal resolution. Its advanced digital day & night functionality guarantees exceptional video quality even in challenging low light environments. Compact in size at 32 x 32 mm, this camera is designed to thrive in various surveillance applications with its impressive minimum illumination of 0.05 Lux in color.

Videology 21RD45

Round Color Board Camera, Ideal Miniature Size for Pipe Inspection

The VIDEOLOGY 2XRD45 1/4" CMOS Round Color Board Camera, a professional-grade device equipped with a 1/4" CMOS color sensor that ensures exceptional image quality and clarity.

With an ultra-wide voltage range of 4.5VDC to 16VDC, this camera offers flexibility in power supply selection, catering to a variety of setups and configurations. Boasting high sensitivity at 0.3 lux, it excels in low-light conditions, delivering sharp and detailed footage in challenging environments. Additionally, the I²C control option allows for seamless customization of overlays and enables horizontal/vertical flip capabilities, giving users precise control over their imaging needs.
The VIDEOLOGY 2XRD45 sets a high standard for performance and versatility with inspection and monitoring applications.

RHPC-1000

1/4" Standard Resolution Analog NTSC Color Board Camera

The RHPC-1000 is a standard resolution 1/4" CCD OEM board camera. With a 22x26mm single board base for the 1/4" image sensor, this camera is ideal for applications requiring a smaller platform. Using only a 5 Volt DC low power connection, this board camera can still provide great resolution, color, and quality video.

You can find the high resolution version of this board camera as the RHPC-2500. Both cameras provide excellent color video as extremely compact units.

The RHPC-1000 is the direct replacement for the Panasonic GP-KX161 (Standard Res) and the Panasonic GP-KX121 (Standard Res).

Board Camera Features

• 1/4" Color CCD
• 22x26 mm Single Board
• Extremely Compact
• High Resolution
• 5 volt DC Operation

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable via PC Software:
* PC Interface Required (RHPC-I²C with Software)

• Electronic Shutter
• Gain Control
• White Balance
• Color Balance
• Back light Compensation
• Mirror Effect
• Negative / Positive Image
• Monochrome (B&W) Mode

Videology 20RD45

Round Color Board Camera, Ideal Miniature Size for Pipe Inspection

The VIDEOLOGY 20RD45 1/4" CMOS Round Color Board Camera, a professional-grade device equipped with a 1/4" CMOS color sensor that ensures exceptional image quality and clarity.

With an ultra-wide voltage range of 4.5VDC to 16VDC, this camera offers flexibility in power supply selection, catering to a variety of setups and configurations. Boasting high sensitivity at 0.3 lux, it excels in low-light conditions, delivering sharp and detailed footage in challenging environments. Additionally, the I²C control option allows for seamless customization of overlays and enables horizontal/vertical flip capabilities, giving users precise control over their imaging needs.
The VIDEOLOGY 20RD45 sets a high standard for performance and versatility with inspection and monitoring applications.

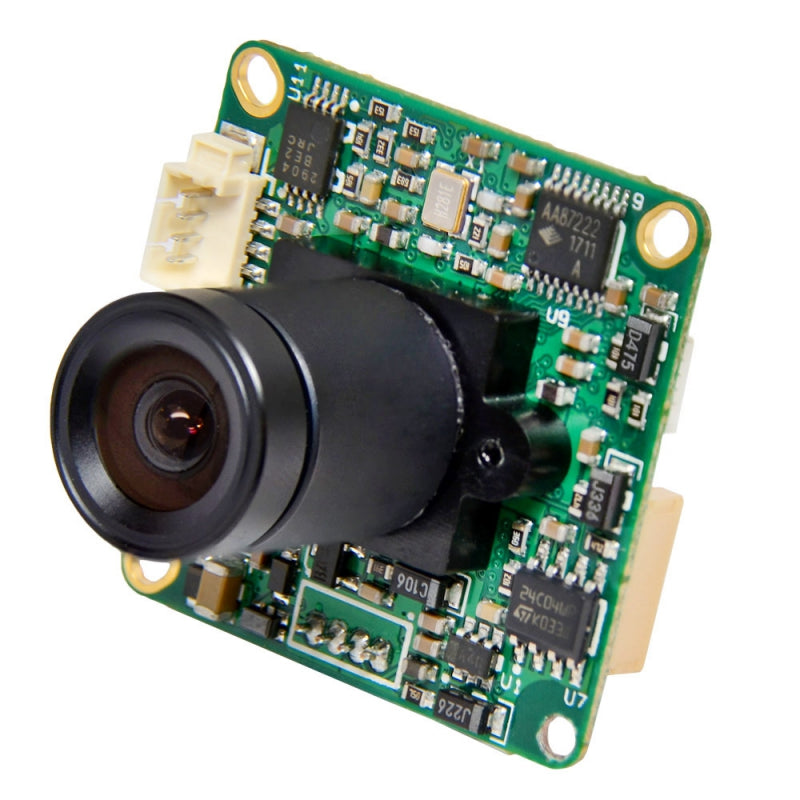

RHPC-920 Color Board Camera

The RHPC-920 is a high resolution 1/4" CCD color board camera. This 32x32mm compact single board form factor features 768(H) x 494(V) resolution, internal synchronization, 12 volts DC operation and parameters controllable via Connector include:

• Mirror Mode
• Flickerless Mode
• Auto Gain Control (AGC)
• Auto White Balance (AWB)
• Auto Level Control (ALC)
• Backlight Compensation (BLC)

With an array of lens options the RHPC-920 is ideal for many lightweight OEM applications.

32x32mm Compact Form Factor

Designed to fit into tight spaces, the RHPC-920 boasts a 32x32mm compact form factor

RHPC-1005

1/4" Standard Resolution Analog PAL Color Board Camera

The RHPC-1005 is a standard resolution 1/4" CCD OEM board camera. With a 22x26mm single board base for the 1/4" image sensor, this board camera is ideal for applications requiring a smaller platform. Using only a 5 Volt DC low power connection, this board camera can still provide great resolution, color, and quality video.

You can find the high resolution version of this camera as the RHPC-2500. Both cameras provide excellent color video as extremely compact units.

The RHPC-1005 is the direct replacement for the Panasonic GP-KX161 (Standard Res) and the Panasonic GP-KX121 (Standard Res).

Board Camera Features

• 1/4" Color CCD
• 22x26 mm Single Board
• Extremely Compact
• High Resolution
• 5 volt DC Operation

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable via PC Software:
* PC Interface Required (RHPC-I²C with Software)

• Electronic Shutter
• Gain Control
• White Balance
• Color Balance
• Back light Compensation
• Mirror Effect
• Negative / Positive Image
• Monochrome (B&W) Mode

RHPC-925 Color Board Camera

The RHPC-925 is a high resolution 1/4" CCD color board camera. This 32x32mm compact single board form factor features 752(H) x 582(V) resolution, internal synchronization, 12 volts DC operation and parameters controllable via Connector include:

• Mirror Mode
• Flickerless Mode
• Auto Gain Control (AGC)
• Auto White Balance (AWB)
• Auto Level Control (ALC)
• Backlight Compensation (BLC)

With an array of lens options the RHPC-925 is ideal for many lightweight OEM applications.

32x32mm Compact Form Factor

Designed to fit into tight spaces, the RHPC-925 boasts a 32x32mm compact form factor

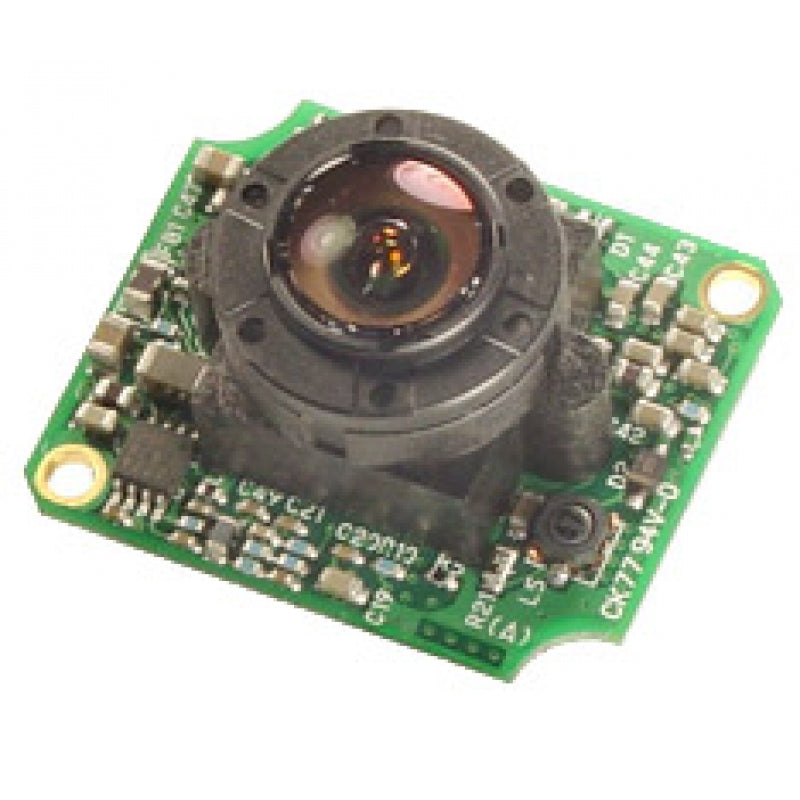

The RHPQ-755P is a powerful color OEM Board Camera for any application requiring a 26mmx22mm design and high quality image.

Board Camera Features

• 1/4" Color Sony CCD
• 26x22mm Single Board Camera
• Aspherical Plastic Lens
  (to avoid defect by vibration)
• Option: OLPF*/IR Cut Filter Removed for improved infrared (low light) sensitivity
• 5 to 12 Volts DC Operation
• High Temperature/Low Tolerance Components
• Over/Reverse Current protection
• Optical Low Pass Filter

* High Resolution Versions Available

* Low Quantity Orders Available as of September 2009

The RHPC-115E is a standard resolution monochrome board camera. This board camera provides excellent monochrome video, and are also sensitive to infrared light.

This 42x42mm single board camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution (resolutions below) with crisp monochrome images, and high quality video.

Board Camera Features

• 1/4" Monochrome Super HAD CCD
• 42x42mm Single Board Camera
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable on PC Board:

• Back light Compensation
  (Full Screen or Center)
• Electronic Iris
• Auto or OFF
• Auto. Gain Control ON or MANUAL

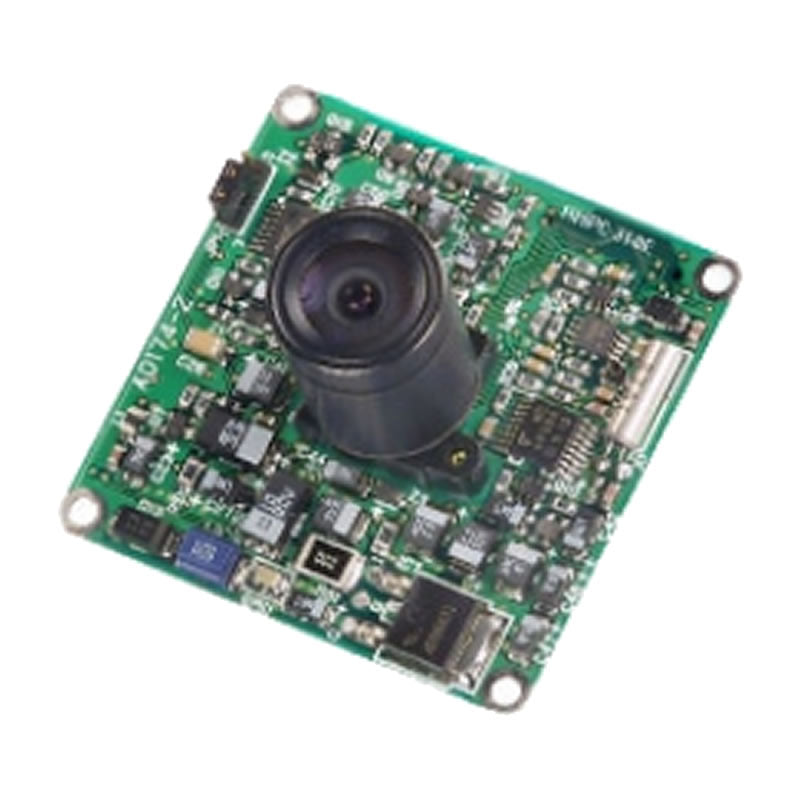

The RHPC-110E is a standard resolution monochrome board camera. Both cameras provide excellent monochrome video, and are also sensitive to infrared light.

This 42x42mm single board camera works using only a 12Volt DC connection for operation. This camera will provide a standard resolution (resolutions below) with crisp monochrome images, and high quality video.

Board Camera Features

• 1/4" Monochrome Super HAD CCD
• 42x42mm Single Board Camera
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable on PC Board:

• Back light Compensation
  (Full Screen or Center)
• Electronic Iris
• Auto or OFF
• Auto. Gain Control ON or MANUAL

The RHPC-315E is a high resolution monochorme board camera. This board camera provides excellent monochrome video and have extra functions controllable via PC Software.

This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide a higher resolution than the 110E/115E, crisp monochrome images, and quality video.

Board Camera Features

• 1/4" Monochrome Super HAD CCD
• 42x42mm Single Board Camera
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

The software provided with this board camera allows plenty of options for managing your video.

Parameters Controllable on PC Board:

• Back light Compensation
  (Full Screen or Center)
• Electronic Iris
• Auto or OFF
• Auto. Gain Control ON or MANUAL

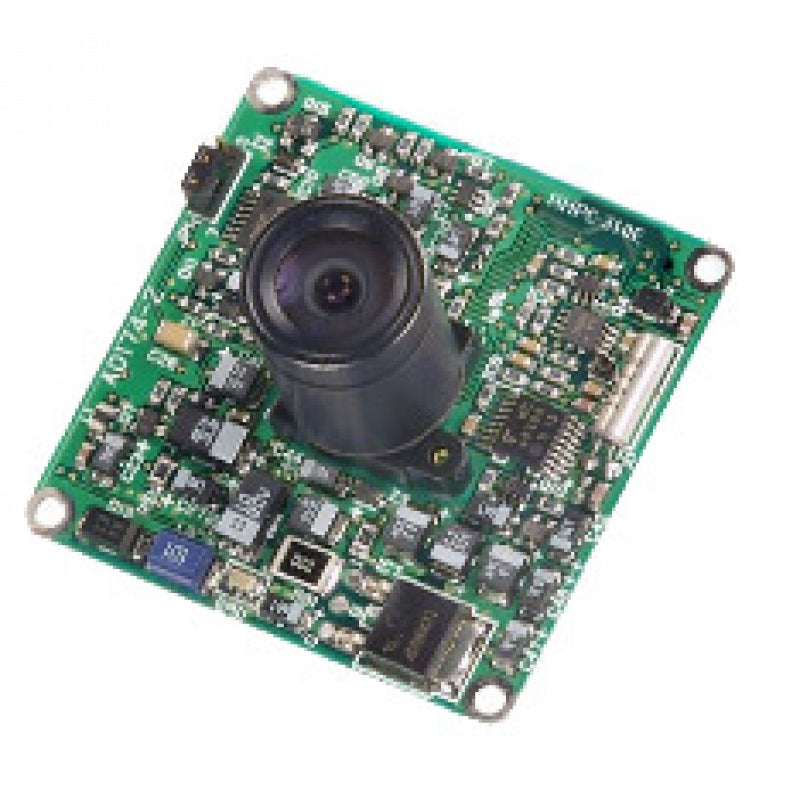

The RHPC-310E is a high resolution monochrome board camera. This board camera provides excellent monochrome video and have extra functions controllable via PC Software.

This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This board camera will provide a higher resolution than the 110E/115E, crisp monochrome images, and quality video.

Board Camera Features

• 1/4" Monochrome Super HAD CCD
• 42x42mm Single Board Camera
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

The software provided with this board camera allows plenty of options for managing your video.

Parameters Controllable on PC Board:

• Back light Compensation
  (Full Screen or Center)
• Electronic Iris
• Auto or OFF
• Auto. Gain Control ON or MANUAL

The RHPQ-755N is a powerful color OEM Board Camera for any application requiring a 26mmx22mm design and high quality image.

Board Camera Features

• 1/4" Color Sony CCD
• 26x22mm Single Board Camera
• Aspherical Plastic Lens
  (to avoid defect by vibration)
• Option: OLPF*/IR Cut Filter Removed for improved infrared (low light) sensitivity
• 5 to 12 Volts DC Operation
• High Temperature/Low Tolerance Components
• Over/Reverse Current protection
• Optical Low Pass Filter

* High Resolution Versions Available

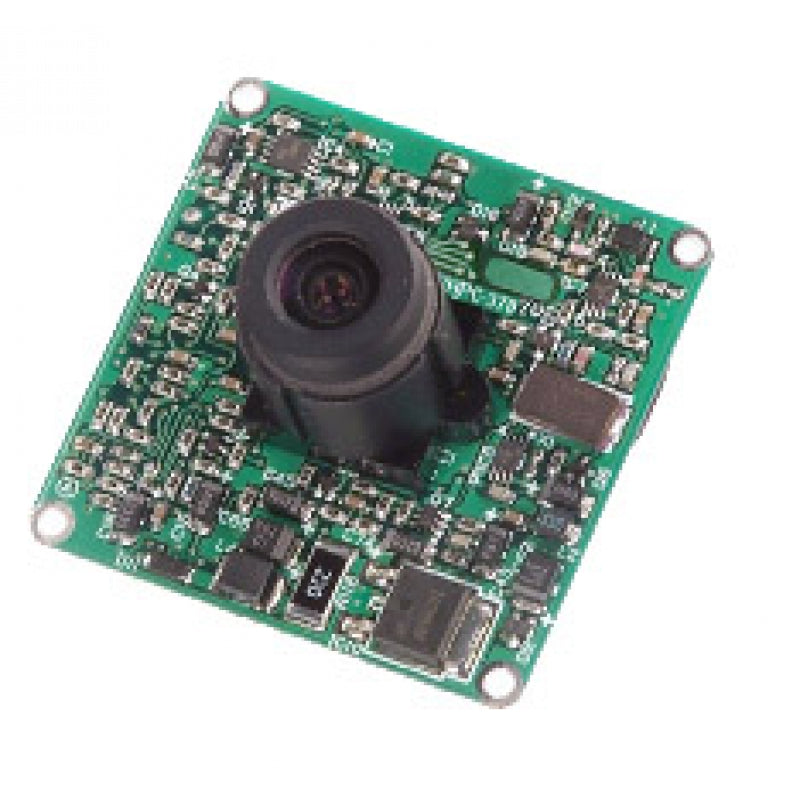

The RHPC-370A is a high resolution monochrome board camera. This board camera provides excellent monochrome video and are also sensitive to infrared light.

This 42x42mm Single Board Camera works using only a 12Volt DC connection for operation. This camera will provide high resolution video with crisp monochrome images.

Board Camera Features

• 1/3" High Resolution Analog EIA (NTSC) Monochrome Board Camera
• 42x42mm Single Board
• Internal or External Synchronization
• 12Volt DC Operation
• Low Smear

This board camera also features extra functions controllable via PC Software. Which can be purchased separately. The software for this unit allows plenty of options for managing your video.

Parameters Controllable via Jumpers & Contacts:

• Back light Compensation
  ( Full Screen or Center )
• Electronic Iris
• Auto or OFF
• Automatic Gain Control ON or OFF
