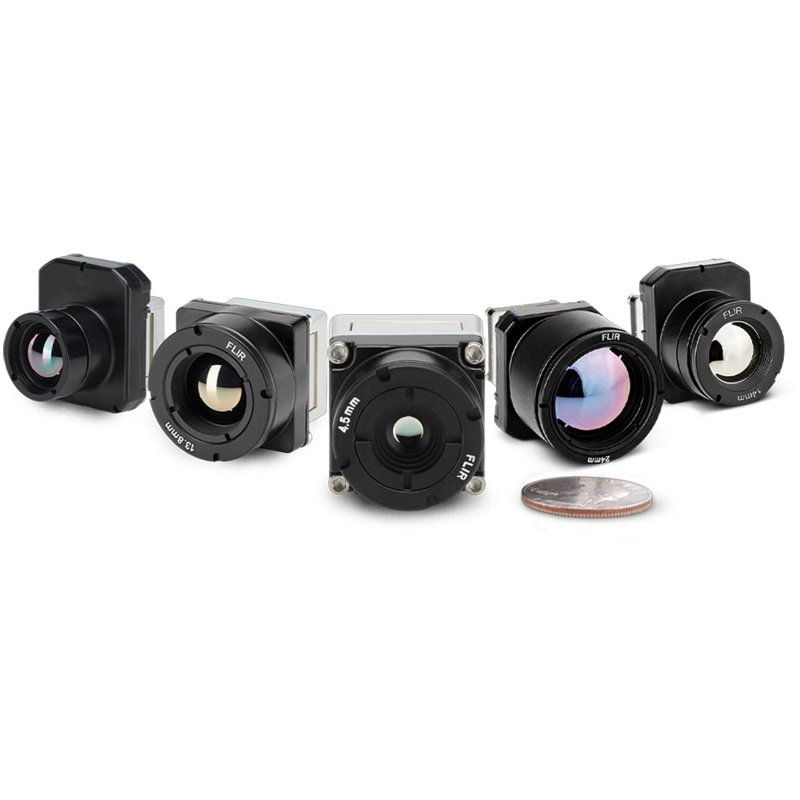

FLIR BOSON Series



Thermal Core

Boson 320

Boson 640

Lens Options: 320 x 256 640 x 512
Core Version Horizontal Field of View SKU Horizontal Field of View SKU
No Lens Included Lens-less Version 20320X0006-PAAX Lens-less Version 2064000-PAAX
2.3mm Lens
92° HFoV* 20320H092-6PAAX -
4.3mm Lens 50° HFoV* 20320A050-6PAAX -
4.9mm Lens - 95° HFoV* 20640A095-6PAAX
6.3mm Lens 34° HFoV* 20320A034-6PAAX -
8.7 mm Lens - 50° HFoV* 20640A050-6PAAX
9.1mm Lens 24° HFoV* 20320A024-6PAAX -
13.8mm Lens 16° HFoV* 20320A016-6PAAX -
14mm Lens - 32° HFoV* 20640A032-6PAAX
18mm Lens 12° HFoV* 20320A012-6PAAX 24° HFoV* 20640A024-6PAAX
24.4mm Lens - 18° HFoV* 20640A018-6PAAX
36mm Lens 6.1° HFoV* 20320A006-6PAAX 12° HFoV* 20640A012-6PAAX
55mm Lens 4.0° HFoV* 20320A004-6PAAX 8° HFoV* 20640A008-6PAAX
73mm Lens - 5.5° HFoV* 20640A006-6PAAX
  *Denotes Horizontal Field of View

Boson Specifications:

Sensor Technology Uncooled VOx microbolometer
Pixel Pitch 12 µm
Spectral Range Longwave infrared; 7.5 µm – 13.5 µm
Thermal Sensitivity NEdT <50 mK (Professional Version)
Full Frame Rates 60 Hz baseline; 30 Hz runtime selectable
Slow Frame Rate ≤9 Hz available
Non-uniformity Correction NUC Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
Solar FPA Protection Yes
Continuous Digital Zoom Yes
Symbol Overlay Re-writable each frame; alpha blending for translucent overlay
Electrical
Input Voltage 3.3 VDC
Power Dissipation Varies by configuration; as low as 500 mW
Video Channels CMOS or USB
Control Channels RS-232 or USB
Peripheral Channels I2C, SPI, SDIO
Configurable GPIO Up to 11; User configurable
Mechanical
Size 21 × 21 × 11 mm without lens
Weight 7.5 g without lens (configuration dependent)
Precision Mounting Holes Four tapped M1.6x0.35 (rear cover).
Lens support recommended when lens mass exceeds core mass
Environmental
Operating Temperature Range -40°C to 80°C (Professional Version)
Non-operating Temperature Range -50°C to 85°C
Shock 1,500 g @ 0.4 msec
Operational Altitude 12 km
Accessories Available:
RHP BOSON RC-IF Remote Control Interface Module The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signial or up to 5 PWM Signals from your wireless Joystick Remote Control System.

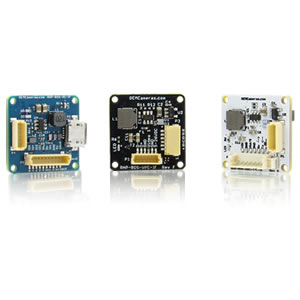

RHP BOSON VPC TTL Interface Module 5 to 26VDC In, Dual Composite Video Out - Switchable Sync Input/Output, USB or TTL Communication, Alternate connection ports, Reverse Polarity Protected
Low Profile BOSON VPC Interface Module 5 to 26VDC In, Dual Composite Video Out, Low Profile, Alternate connection ports, USB Communication, Reverse Polarity Protected
USB VPC Kit USB interface to Boson for power and adjusting cameras parameters using FLIR Boson  GUI.
USB/Analog VPC Kit USB interface to Boson for power and adjusting cameras parameters using FLIR Boson GUI with analog video output via BNC male connector.
Boson Development Board Full access to Boson 80-pin interface; includes USB 3, 100/GigE Ethernet, CameraLink, Serial Com, Micro SDCard, I2C, SPI, SDIO and VSYNC/RESET, GPIO
USB/CameraLink Board CameraLink and USB interface to Boson video
Lens Focus Tool Custom tool to change lens focus
Tripod Mount Custom tripod mount with 1/4-20 interface



FLIR BOSON 320 Thermal Imaging Lensless Core

SKU#: 20320X0006-PAAX

Highlights:

FLIR Boson 320 Lensless Core
► 320x256 resolution

► Multiple Lens Options Available

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3 ) camera body

► Weight as low as 7.5 grams

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 2.3mm Lens Thermal Imaging Camera

SKU#: 20320H092-6PAAX

Highlights:

FLIR Boson 320 2.3mm Lens

► 320x256 resolution

► 92° HFoV

► 2.3mm Focal Length

► F/# 1.0

► Max Diameter 20.0mm

► Length 35mm

► Weight 25g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 4.3mm Lens Thermal Imaging Camera

SKU#: 20320A050-6PAAX

Highlights:

FLIR Boson 320 4.3mm Lens
► 320x256 resolution

► 50° HFoV

► 4.3mm Focal Length

► F/# 1.0

► Max Diameter 20.0mm

► Length 27mm

► Weight 18g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 6.3mm Lens Thermal Imaging Camera

SKU#: 20320A034-6PAAX

Highlights:

FLIR Boson 320 6.3mm Lens
► 320x256 resolution

► 34° HFoV

► 6.3mm Focal Length

► F/# 1.0

► Max Diameter 20.0mm

► Length 27mm

► Weight 15g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 9.1mm Lens Thermal Imaging Camera

SKU#: 20320A024-6PAAX

Highlights:

FLIR Boson 320 9.1mm Lens
► 320x256 resolution

► 24° HFoV

► 9.1mm Focal Length

► F/# 1.0

► Max Diameter 20.0mm

► Length 27mm

► Weight 15g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 13.8mm Lens Thermal Imaging Camera

SKU#: 20320A016-6PAAX

Highlights:

FLIR Boson 320 13.8mm Lens
► 320x256 resolution

► 16° HFoV

► 13.8mm Focal Length

► F/# 1.0

► Max Diameter 26.0mm

► Length 28mm

► Weight 38g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 18mm Lens Thermal Imaging Camera

SKU#: 20320A012-6PAAX

Highlights:

FLIR Boson 320 18mm Lens
► 320x256 resolution

► 12° HFoV

► 18mm Focal Length

► F/# 1.0

► Max Diameter 27.6mm

► Length 38mm

► Weight 39g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 36mm Lens Thermal Imaging Camera

SKU#: 20320A006-6PAAX

Highlights:

FLIR Boson 320 36mm Lens
► 320x256 resolution

► 6.1° HFoV

► 36mm Focal Length

► F/# 1.0

► Max Diameter 51.0mm

► Length 64mm

► Weight 132g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C



FLIR BOSON 320 55mm Lens Thermal Imaging Camera

SKU#: 20320A004-6PAAX

Highlights:

FLIR Boson 320 55mm Lens
► 320x256 resolution

► 4.0° HFoV

► 55mm Focal Length

► F/# 1.0

► Max Diameter 71.0mm

► Length 87mm

► Weight 256g

► 12 µm pixel pitch VOx microbolometer

► Multiple high-performance FOV options

► Multiple levels of sensitivity starting at <40 mK

► 21 x 21 x 11 mm, (4.9 cm3) camera body

► Low power consumption, starting at 500 mW

► Rugged construction and highest temperature rating -40°C to +80°C
