SDR900H PTZ Camera Control System / Serial Data Radio Wireless Transceiver
$6,000.00
We usually have a majority of these items in stock.
Please call or contact us for availability.
SDR900H PTZ
Camera Control System / Serial Data Radio Wireless Transceiver
Long Range PTZ Control

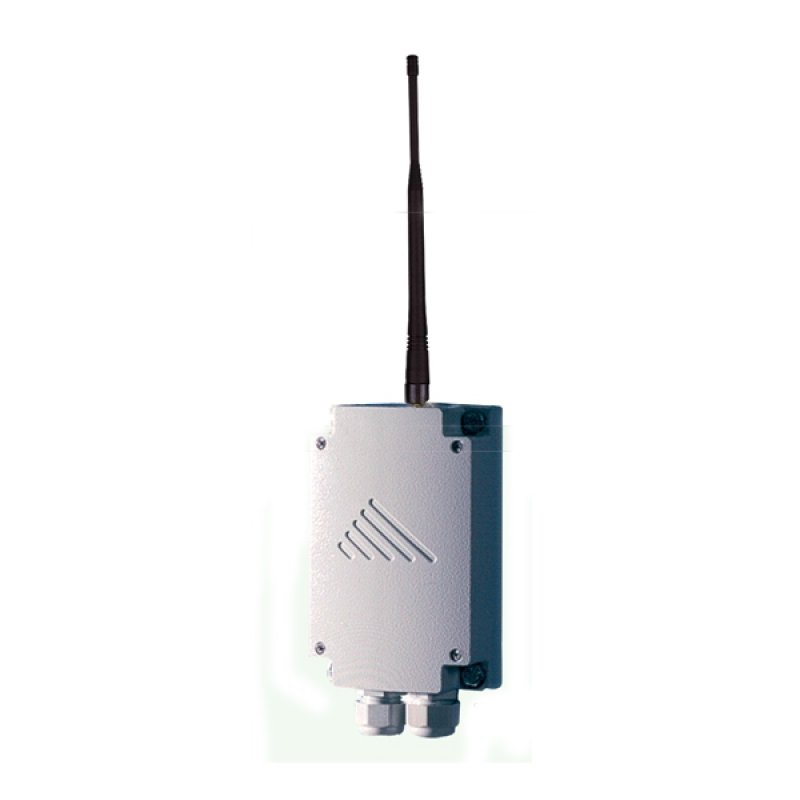

The SDR900H™ remote camera control transmission system allows you to control the pan, tilt, and zoom of a camera from up to twelve miles away (with line-of-sight between transceiver radios). The SDR900H™ integrates easily with most major dome manufacturers and is compatible with RS232, RS422, and RS485 protocols.
Robust Performance & Flexibility
The SDR900H™ is a transceiver (TX/RX) radio that operates in the unlicensed 900 MHz ISM band using 25 hopping channels with seven user-selectable sequences, allowing the system to operate exceptionally well even with other nearby radios operating in the same band. Eight-bit, user selectable addressing further enhances the ability to address multiple systems in a single path or in a point-tomultipoint configuration.
| Weight | |
|---|---|
| Frequency Range | |
| RF Connector | |

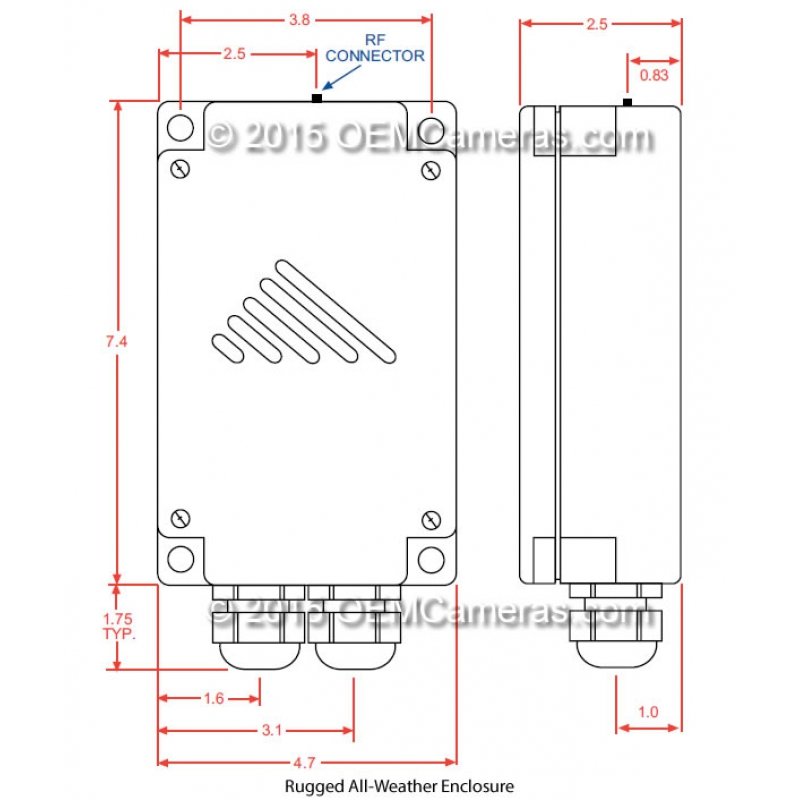

| Radio Dimensions | |
| Environmental Rating | |
| Humidity | |
| Throughput | |

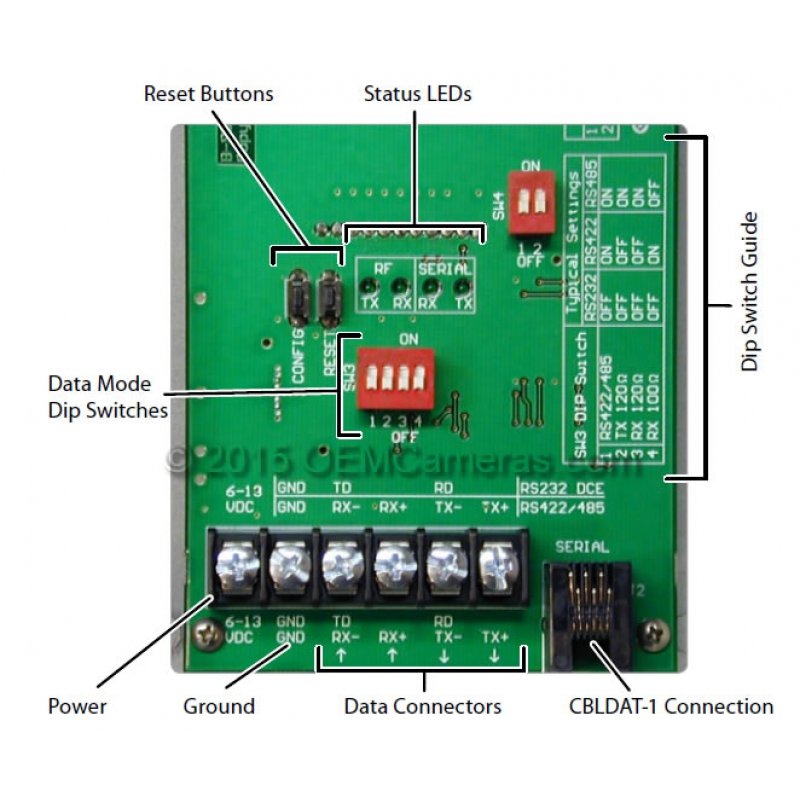

| Power Connectors |
Barrier block with #6 screws for power, <br>RS485/422 and RS232 |
| RF Output Power |
Approx. 300 mW EIRP with 3 dB omni antenna1 W EIRP with AD900-8Y-RP 8 dB antenna |
| Operating Temperature | |
| Receiver Sensitivity | |
| Channels | |
| Current Draw | |
| Input Voltage |
