RHP-BOS-DS-IF Dual Thermal Sensor Interface

$999.00

Thermal & Visible Camera Enclosed In One Package
Dual Camera Control via Serial Connection, Push Button, Receiver PWM or Wireless Joystick
6 to 26 Volt DC Input
Multi Window Mode – PiP, Split View, Single and Quad view
1920 x 1080 HD Visible camera included
Onboard IMU for easy integration with a gimbal

IR Cut Filter Notice:
The RHP-BOS-DS-IF Dual camera interface includes a visible camera and lens and offered with or without an infrared cut filter.
An infrared cut filter (IR-cut filter) is used to block light with wavelengths longer than visible light while transmitting visible light. IR cut filters can operate by either reflecting or absorbing the light to be blocked. IR cut filters are often used in solid state (CCD or CMOS) video cameras to block infrared light, which otherwise causes a lowering of the contrast due to the high sensitivity of many camera sensors to near-infrared light. IR cut filters for this purpose are mostly operating by reflecting the IR portion of the light.

Visible Camera Lens Options

Clear

We usually have a majority of these items in stock.
Please call or contact us for availability.

SKU: RHP-BOS-DS-IF Categories: BOSON Interface Assemblies, coming soon, Dual Sensors, FLIR BOSON Accessories Tags: bos-ds-if, bosom interface, dual sensor, Dual Sensor interface for the FLIR Boson, interface assemblies, interface boards, rhp-bos-ds-if, Thermal camera dual sensor Flir, vis, vis ir, viz, viz-ir Brand: RHP International

Description
Specifications

RHP Boson Dual Sensor Interface

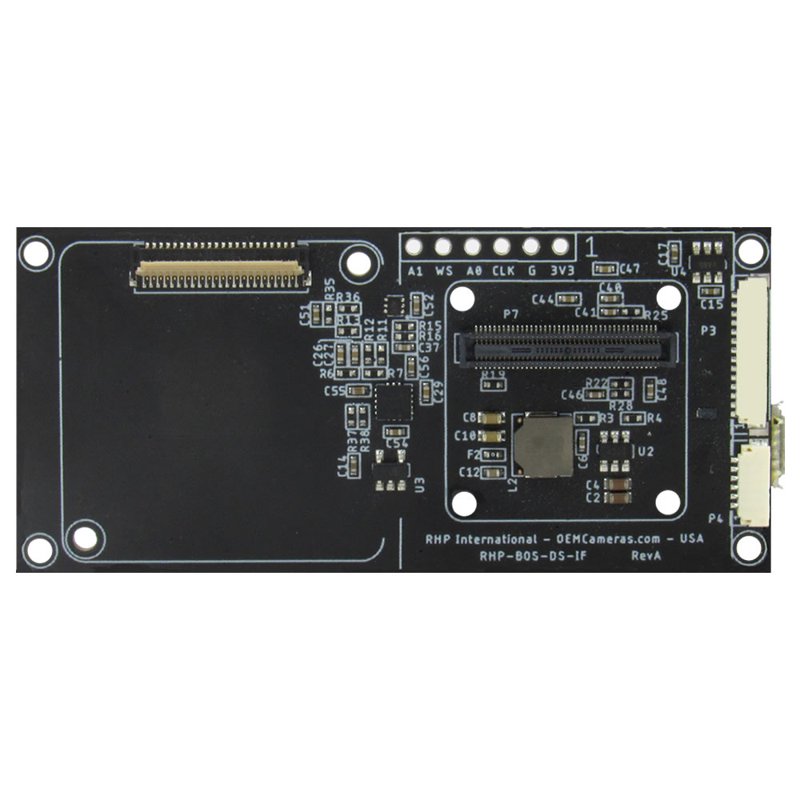

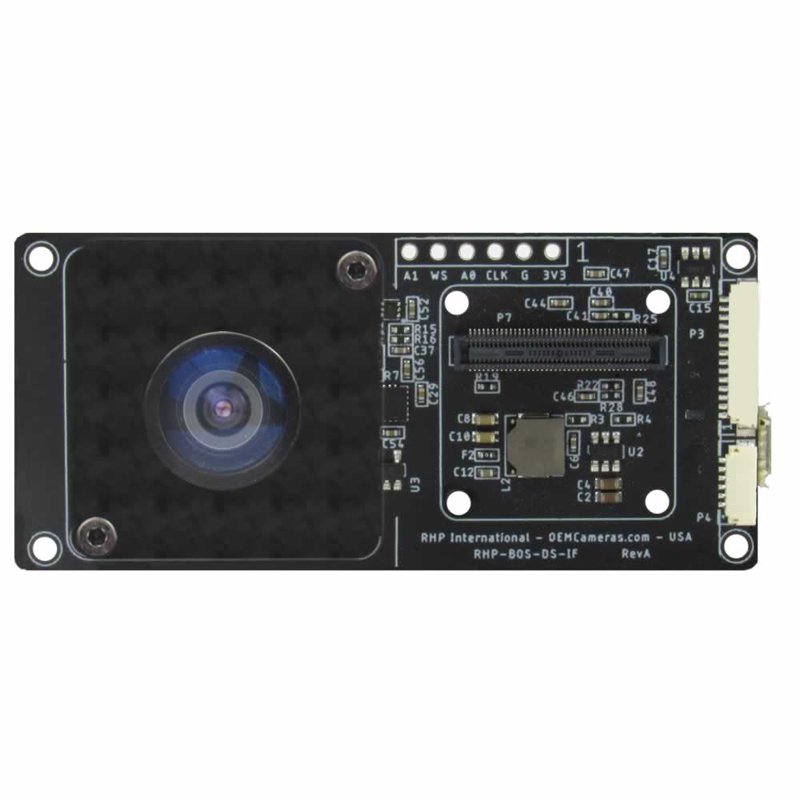

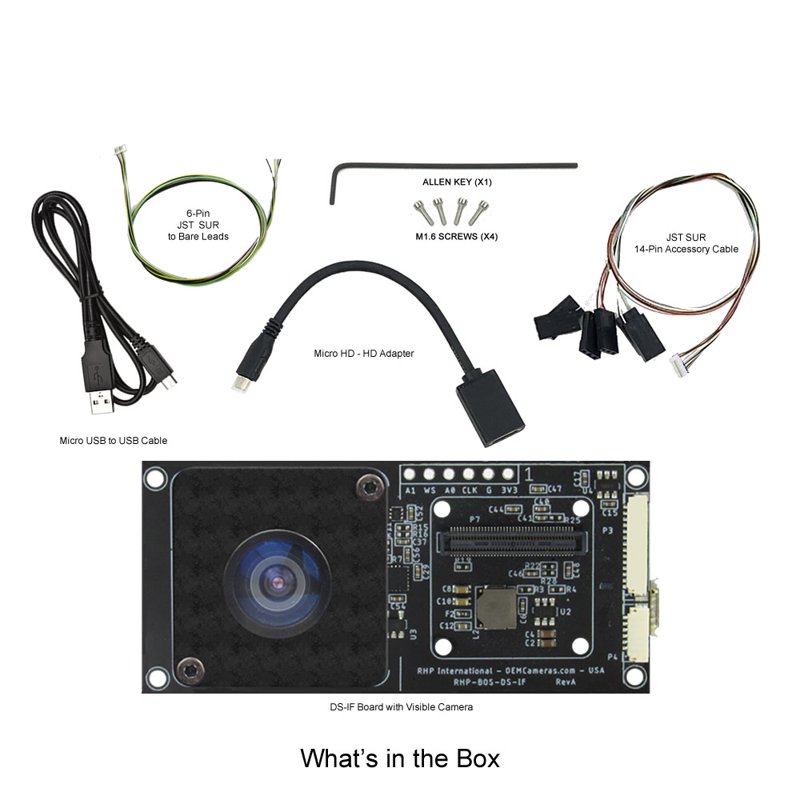

The RHP-BOS-DS-IF Dual Thermal Sensor Interface is an innovative solution that combines a Thermal and Visible Camera on one board. With Dual Camera Control via Serial Connection, it allows users to easily switch between thermal and visible imaging modes. The interface provides Push Button, SBUS, PWM or Wireless Joystick control, and works with 6 to 26 Volt DC power sources. The Multi Window Mode, PiP, Split View, Single and Quad view options make it easy to view video in various formats. The 1920 x 1080 HD Visible camera is included on board, along with an IMU for easy integration and gimbal compatibility.

Options for connecting the BOS-DS-IF are:

USB
S-Bus (16 Channels)
PWM (5 channels)

Multiple window modes:

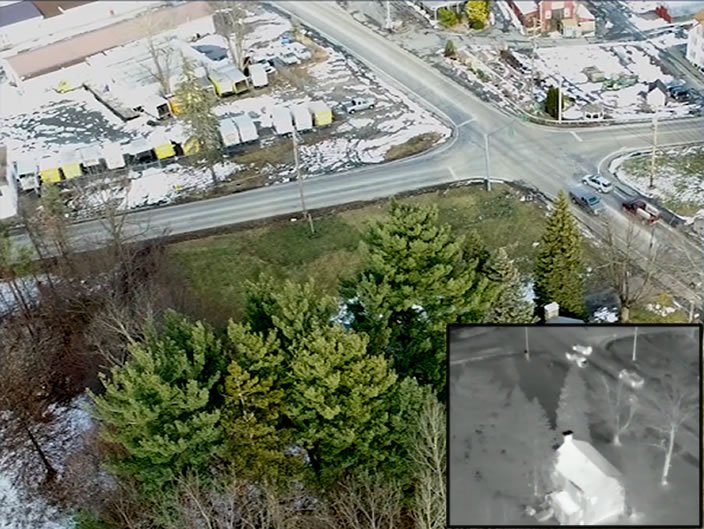

Picture in Picture mode

Allows you to view one camera in a small frame and the other camera in the background.

Single View mode

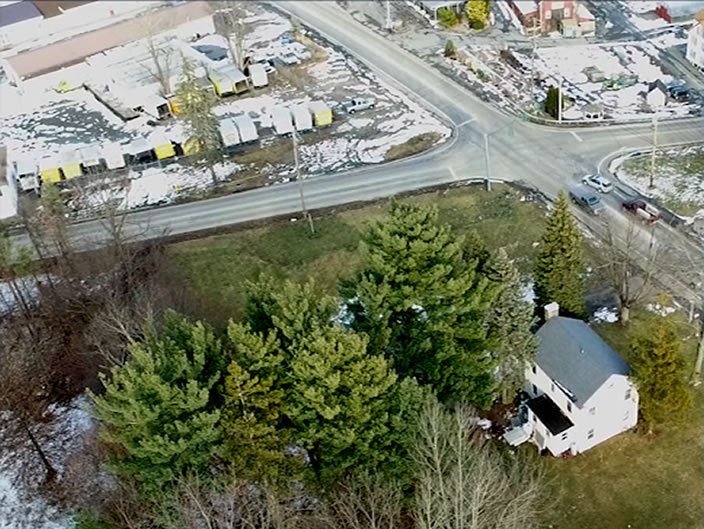

See the complete view of either camera on the screen.

Split View Mode

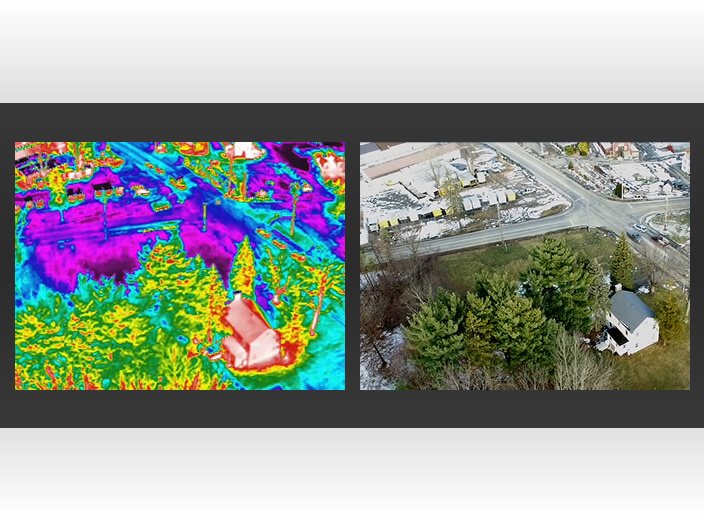

Monitor both streams shown side by side.

Change Parameters On-The-Fly!

Assigning the features of the FLIR Boson can be done with the custom control GUI and programming interface (included). Once assigned to a controller, you can select color palettes, initiate the Flat Field Correction (FFC) Shutter, Optimize the Digital Detail Enhancement and engage the Thermal AGC without having to land.

Customize Your Control

Whether it’s an RC Controller or 5 point D-pad, you can assign features and control the FLIR Boson, the amount of control is practically limitless.

Power Protection

With the intelligent polarity sensing protection, the RHP-BOS-DS-IF is designed to handle voltages ranging from 5-26 Volts DC.

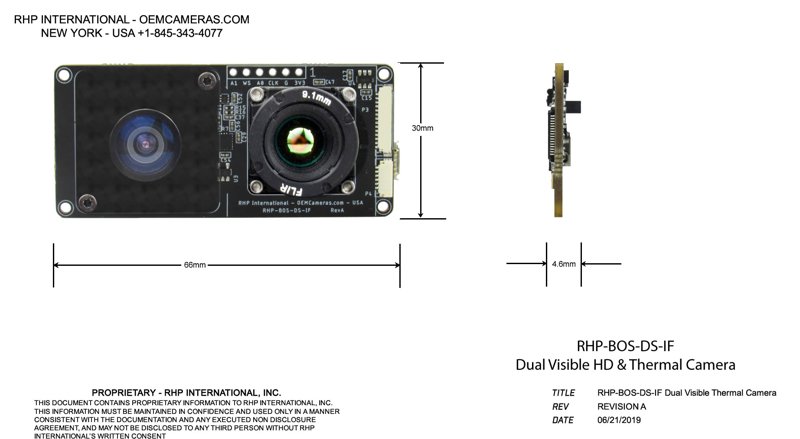

RHP-BOS-DS-IF Dimensions

Video Output	Digital Video Output to HD
Image Sensor	1/2.8" Exmor R Progressive Scan CMOS
Spectral Band ℹ️	LWIR \| 7.5 µm – 13.5 µm
Digital Video Output	1080p60 / 720p60
Effective Pixels	2.13MP 1945(H) x 1097(V)
MAVLink Interface	3.3 Volt (5 Volt Tolerant) UART/TTL Protocol
Sensitivity/NEdT ℹ️	<40 mK (Industrial) \| <50 mK (Professional) \| <60 mK (Consumer)
Remote Control	Yes – PWM (5 channels), S-Bus (16 Channels), MAVLink
Video Resolution	1920×1080(Full HD) 1280×720
Pixel Pitch ℹ️	12 µm
14 Pin Accessory Port	Power Out (5Volts), PWM, S-Bus, MavLink
6 Pin Accessory Port	SDA/SCL (IMU), Ground, D+/D- (Boson USB)
f-number ℹ️	1.0 – 1.1 (Depending on Model)
Minimum Illumination	0.2Lux(F1.6)
Weight	7.5 g without lens (configuration dependent), Approx. 3.6g
Input Voltage	3.3 VDC, 6-26VDC (14-PIN JST SVR Connector) 5.0 VDC USB-Micro Connector NOTE: Connecting the DS-IF/BOSON 640 to a computer does NOT provide sufficient power fo
Lens Type	Board Lens
Dimensions (L x W x H)	21 × 21 × 11 mm without lens
Control Channels	UART or USB
F-Value	F 2.0
Peripheral Channels ℹ️	I2C, SPI, SDIO
Angle of View	112.3˚ (D) x 93.7˚ (H) x 49.3˚ (V)
Video Channels	CMOS or USB2
Day & Night Mode	AUTO/COLOR/BW
Full Frame Rate	60Hz baseline; 30 Hz runtime selectable
Dynamic Range	OFF/BLC/HLC/WDR
Image Orientation	Adjustable (vertical flip and/or horizontal flip)
White Balance	AUTO/PUSH/Manual
AE Mode	Auto/Manual/Flicker
Non-Uniformity Correction (NUC)	Factory calibrated; updated FFCs with FLIR’s Silent Shutterless NUC (SSN™)
Brightness	0~20
Scene Range [high gain]	to +140 °C (high)
Manual Shutter	1/30(25), 1/60(50)~1/30000
Scene Range [low gain]	+500 °C (low)
Sense-Up	Off~32fields
Slow Frame Rate	≤9Hz available
Digital Slow Shutter	Max.x32
Sensor Technology	Uncooled VOx microbolometer
Digital Zoom	Max.x16
Continuous Digital Zoom	1X to 8X zoom
Operational Altitude	12 km (max altitude of a commercial airliner or airborne platform)
Image Flip	Off/Horizontal/Vertical/H+V(180° Flip)
Operating Temperature Range	-10℃~+50℃, -40°C to 80°C
WDR	0~4
Shock	1,500 g @ 0.4 msec
BLC	Off/0~10, Area selectable
HLC	Off/0~20, Color selectable
AGC	Max.42dB
DNR	Off/Low/Middle/High
Defog	Off/Low/Middle/High/AUTO
Power Consumption	3.3V : Max. 200mA / 1.8V : Max 55mA / 1.2V : Max 460mA
Dimension (mm)	28mm X 28mm
Storage Temperature Range	-20℃~+60℃
Operating Humidity Range	20~95%
Storage Humidity Range	20~80%
Visible Camera Focal Length	36mm
