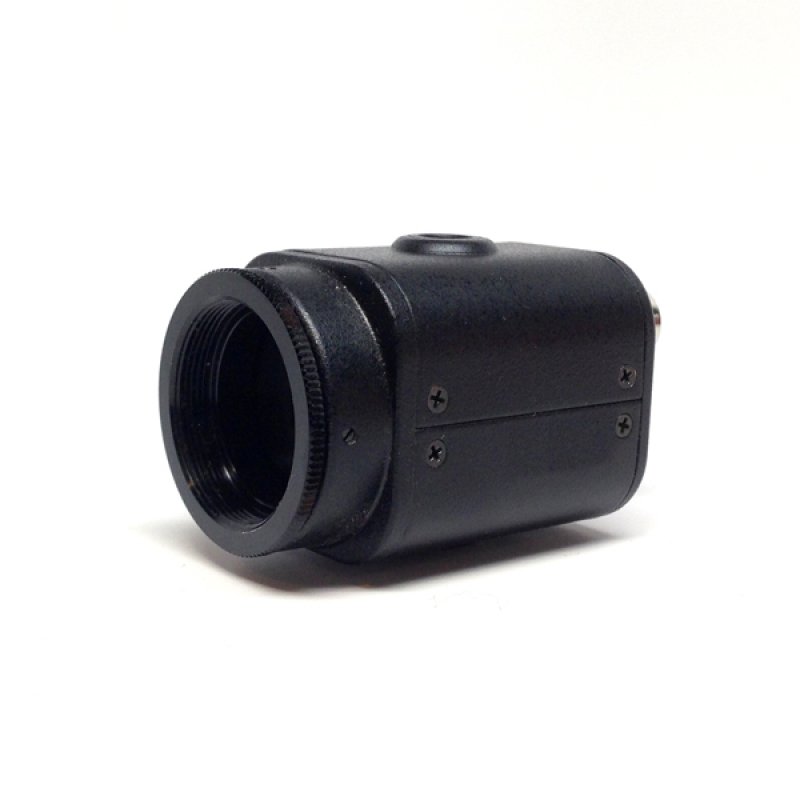

RHP-902Q Monochrome CCD Camera Module

RHP-902Q Monochrome CCD Camera Module

RHP-902Q high sensitivity camera with a RCA video out and auto iris connection.

Quick Specs (NTSC):
Effective Pixels: 380k
Scanning system: 2:1 Interlace
Synchronizing system: Internal
Gain Control: AGC HI:5~32dB, LO: 5~20dB, OFF: 10dB
Gamma Correction: ON: γ≒0.45, OFF: γ≒1.0
Min. Illumination: 0.003Lux @ F1.4 (AGC HI)
B.L.C.: ON / OFF Selectable
Shutter Speed: EI: 1/60~1/100,000 sec. / FL: 1/100 sec. / OFF: 1/60 sec.
S/N Ratio: 50dB
Weight: 90g

CCD: 1/2″
Resolution: 570TVL
Power: DC 12V ± 10%
