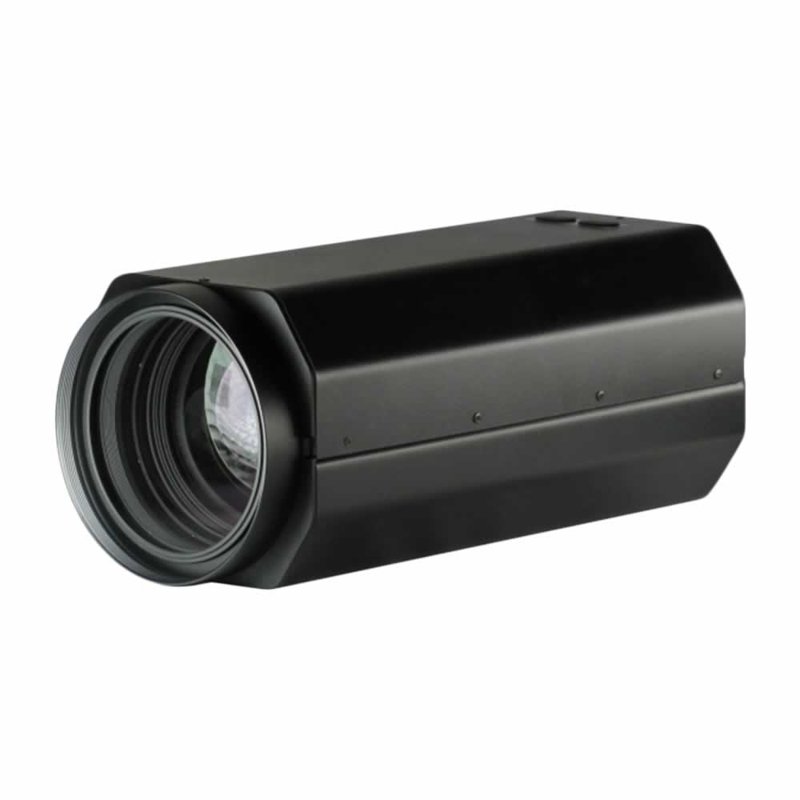

HIR22-750M Series
- Infrared Corrected Motorized Zoom Lens
- Special Low Dispersion Glass
- 2/3″ sensor
- 33x Zoom
- f = 22.8 – 750mm
- F4.5
- True NIR
- Visible Cut Filter
- Thermal Compensation System
- OPTIONS: Serial Control Manual Override Iris Potentiometer
- C-Mount
We usually have a majority of these items in stock.
Please call or contact us for availability.
HIR22-750M Series
| The HIR22-750 lenses are powerful infrared (IR) corrected motorized zoom lenses.

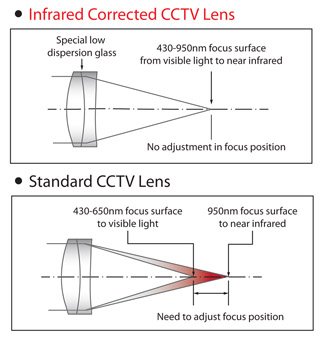

The IR corrected SD Glass (special low dispersion glass) has lower chromatic abberation than ED glass (extra-low dispersion glass) which allows the lens to always stay in focus, from visible light to infrared light. With a 22-750mm focal length the HIR22-750 can benefit almost any application. Designed to fit a C-Mount camera with a 1/2″ CCD or smaller, this can also be used on a CS-Mount camera with an additional C/CS adapter. |
| Range Testing
|
Special Low Dispersion Glass
|
|
| Visible Lens vs. IR Corrected Lens: Notice with this IR Corrected lens utilizing the Haze Filter: You can see through haze revealing details in the mountains. |
||
 Visible Mode vs IR Corrected Mode with Haze Filter |
 Visible Mode vs IR Corrected Mode with Haze Filter |
|
| Format | |
|---|---|
| Lens Mount | |
| Focal Length | |
| Maximum Aperture | |
| Iris | |
| Minimum Focus Distance | |
| Focus | |
| Angle of View | |
| Temperature Range | |

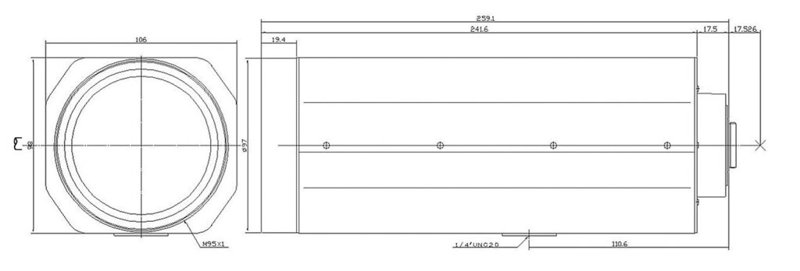

| Dimensions (H x W x L) | |
| Weight |
